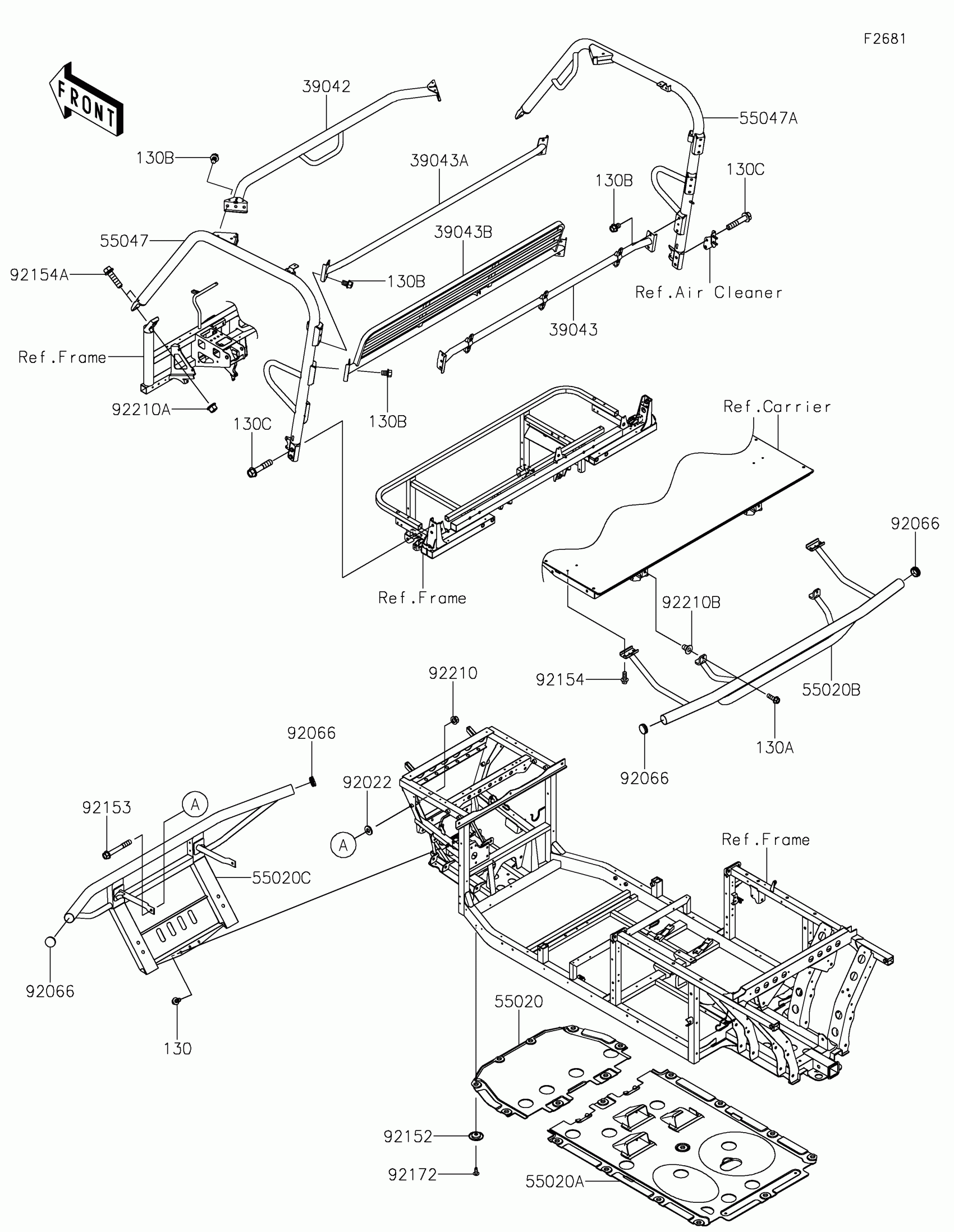

Kawasaki MULE PRO-FXR™ 1000 Guards/Cab Frame Diagram

Description

Price

39042

CROSSMEMBER,FR,T.BLACK

39042-0016-388

$116.99

39043

CROSSMEMBER-COMP,B-P.,LWR,BLK

39043-0017-388

$113.42

39043A

CROSSMEMBER-COMP,B-P,TOP,T.BLK

39043-0027-388

$114.47

39043B

CROSSMEMBER-COMP,B-P,UPP,T.BLK

39043-0028-388

$235.20

55020

GUARD,SKID PLATE,FR

55020-2000

$81.66

55020A

GUARD,SKID PLATE,RR

55020-2157

$108.59

55020B

GUARD,RR,T.BLACK

55020-2413-388

$59.27

55020C

GUARD,FR,T.BLACK

55020-2424-388

$77.61

55047

BAR-COMP,LH,T.BLACK

55047-0374-388

$230.07

55047A

BAR-COMP,RH,T.BLACK

55047-0375-388

$230.07

92022

WASHER,10X22X3

92022-1365

$4.85

92066

PLUG

92066-0769

$2.04

92152

COLLAR

92152-0784

$1.54

92153

BOLT,FLANGED,10X75

92153-1384

$5.91

92154

BOLT,FLANGED,8X20

92154-1226

$0.85

92154A

BOLT,FLANGED,12X45

92154-1420

$2.72

92172

SCREW,TAPPING,6X16

92172-0739

$0.73

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$1.85

92210A

NUT,12MM

92210-0603

$6.85

92210B

NUT

92210-1545

$3.15

130

BOLT-FLANGED,8X16

130BA0816

$0.89

130A

BOLT-FLANGED,8X25

130BA0825

$2.01

130B

BOLT-FLANGED,10X14

130CA1014

$2.31

130C

BOLT-FLANGED,12X60

130CA1260

$4.08
