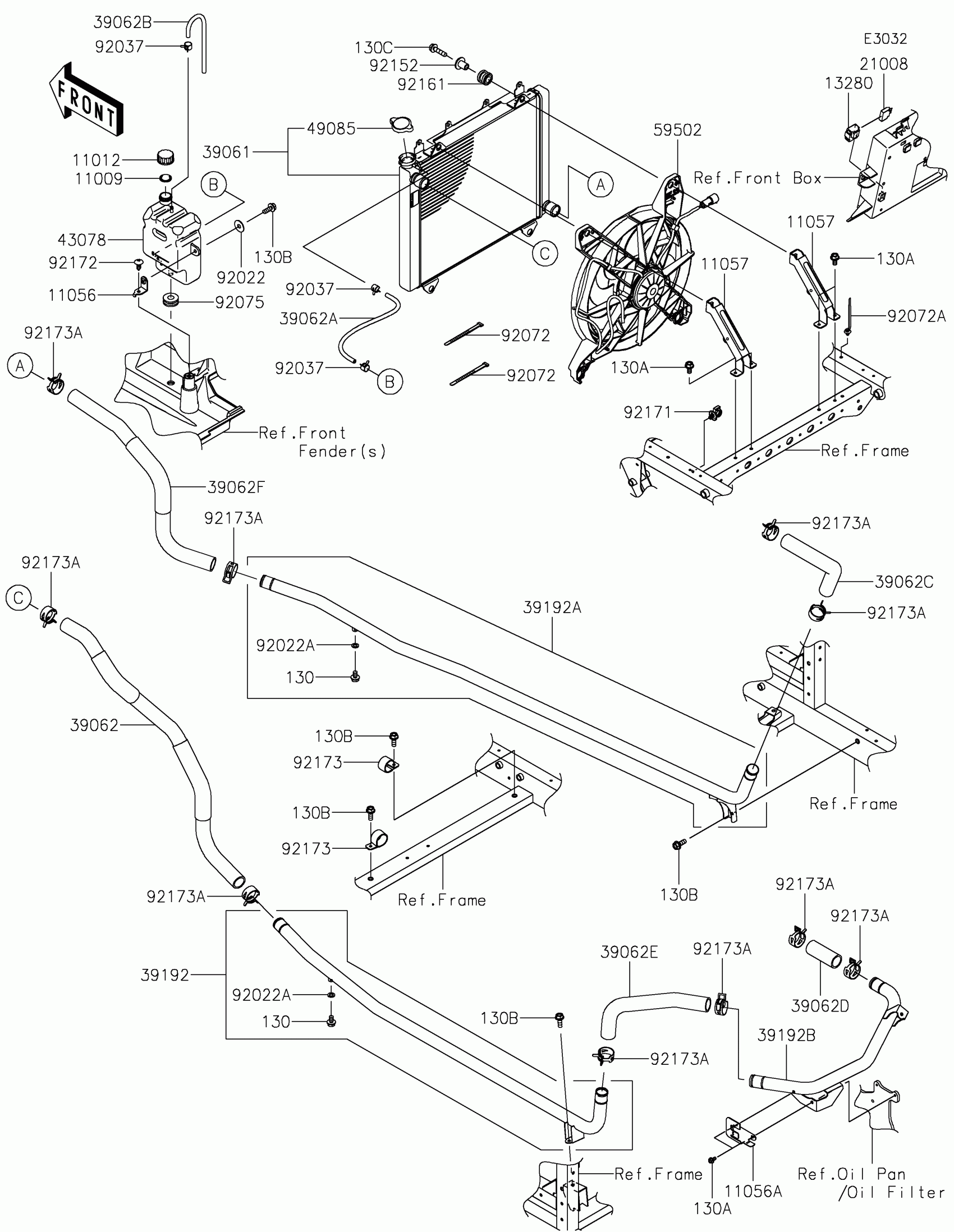

Kawasaki MULE PRO-DXT™ EPS Radiator(BNFNN/BPFNN) Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

11056

BRACKET,RESERVOIR

11056-3856

$13.34

11056A

BRACKET,HARNESS

11056-7479

$9.12

11057

BRACKET,RADIATOR

11057-0774

$16.39

13280

HOLDER,BREAKER

13280-0898

$1.71

21008

BREAKER,RAD. FAN,20A

21008-0011

$28.52

39061

RADIATOR-ASSY

39061-0706

$442.09

39062

HOSE-COOLING,RADIATOR IN

39062-0650

$86.65

39062A

HOSE-COOLING,RAD.-RESERVOIR

39062-0657

$5.17

39062B

HOSE-COOLING,OVER FLOW

39062-0696

$5.61

39062C

HOSE-COOLING,ENGINE IN

39062-0713

$38.39

39062D

HOSE-COOLING,ENGINE OUT

39062-0714

$13.31

39062E

HOSE-COOLING,ENGINE OUT

39062-0715

$31.38

39062F

HOSE-COOLING,RADIATOR OUT

39062-0777

$66.42

39192

PIPE-WATER,LH

39192-0575

$61.70

39192A

PIPE-WATER,RH

39192-0591

$69.98

39192B

PIPE-WATER,CNT

39192-0593

$37.44

43078

RESERVOIR

43078-0571

$39.99

49085

CAP-ASSY-PRESSURE

49085-0005

$40.29

59502

FAN-ASSY

59502-0609

$356.10

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.29

92022A

WASHER,6.2X11X1

92022-304

$2.76

92037

CLAMP,TUBE

92037-1461

$2.93

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92075

DAMPER

92075-1185

$4.17

92152

COLLAR

92152-1512

$8.32

92161

DAMPER

92161-1349

$0.60

92171

CLAMP

92171-0453

$3.12

92172

SCREW,6X16

92172-0284

$0.90

92173

CLAMP

92173-1204

$3.49

92173A

CLAMP,28.6MM

92173-1205

$4.34

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,6X12

130BA0612

$1.25

130B

BOLT-FLANGED,6X16

130BA0616

$0.97

130C

BOLT-FLANGED,6X25

130BA0625

$0.97
