2025 Kawasaki Mule PRO-DXT™ EPS Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 2025 Kawasaki Mule PRO-DXT™ EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

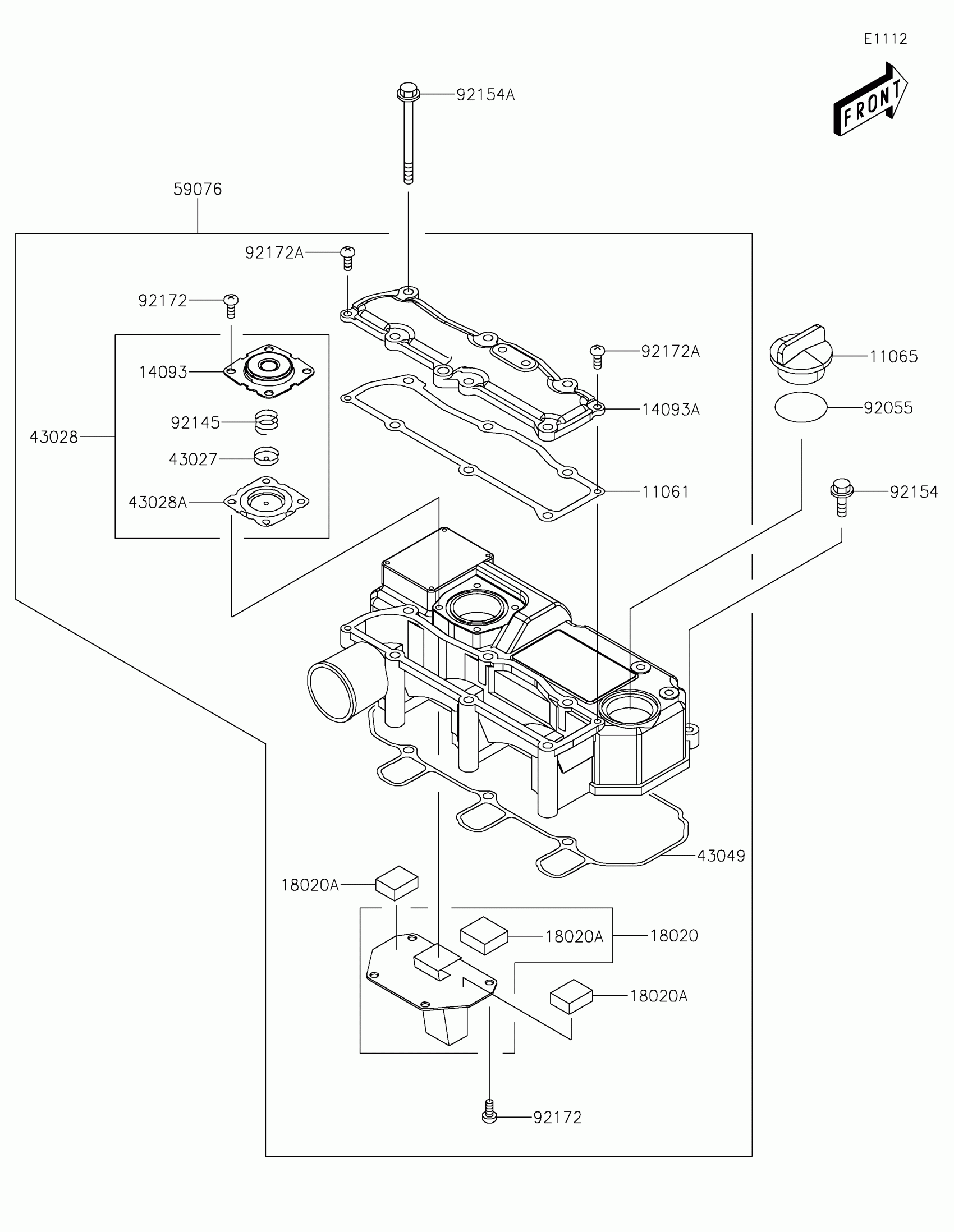

2025 Kawasaki Mule PRO-DXT™ EPS Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

1

$57.05

In stock

11065

CAP,FILLER

11065-0943

1

$13.66

In stock

14093

COVER,DIAPHRAGM

14093-0442

1

$35.35

In stock

14093A

1

$118.06

In stock

18020

BAFFLE,PLATE

18020-0723

1

$149.98

In stock

18020A

BAFFLE,BREATHER

18020-0724

1

$9.20

In stock

43027

PLATE-DIAPHRAGM

43027-0009

1

$8.03

In stock

43028

DIAPHRAGM,ASSY

43028-0019

1

$73.02

In stock

43028A

DIAPHRAGM

43028-0020

1

$22.81

In stock

43049

1

$50.52

In stock

59076

MANIFOLD-INTAKE

59076-0014

1

$275.06

In stock

92055

RING-O

92055-0856

1

$3.59

In stock

92145

SPRING

92145-1712

1

$3.53

In stock

92154

BOLT,FLANGED,6X20

92154-1988

1

$1.71

In stock

92154A

BOLT,FLANGED,6X75

92154-1989

1

$2.37

In stock

92172

SCREW,5X10

92172-0985

1

$1.71

In stock

92172A

SCREW,5X16

92172-0986

1

$1.71

In stock
