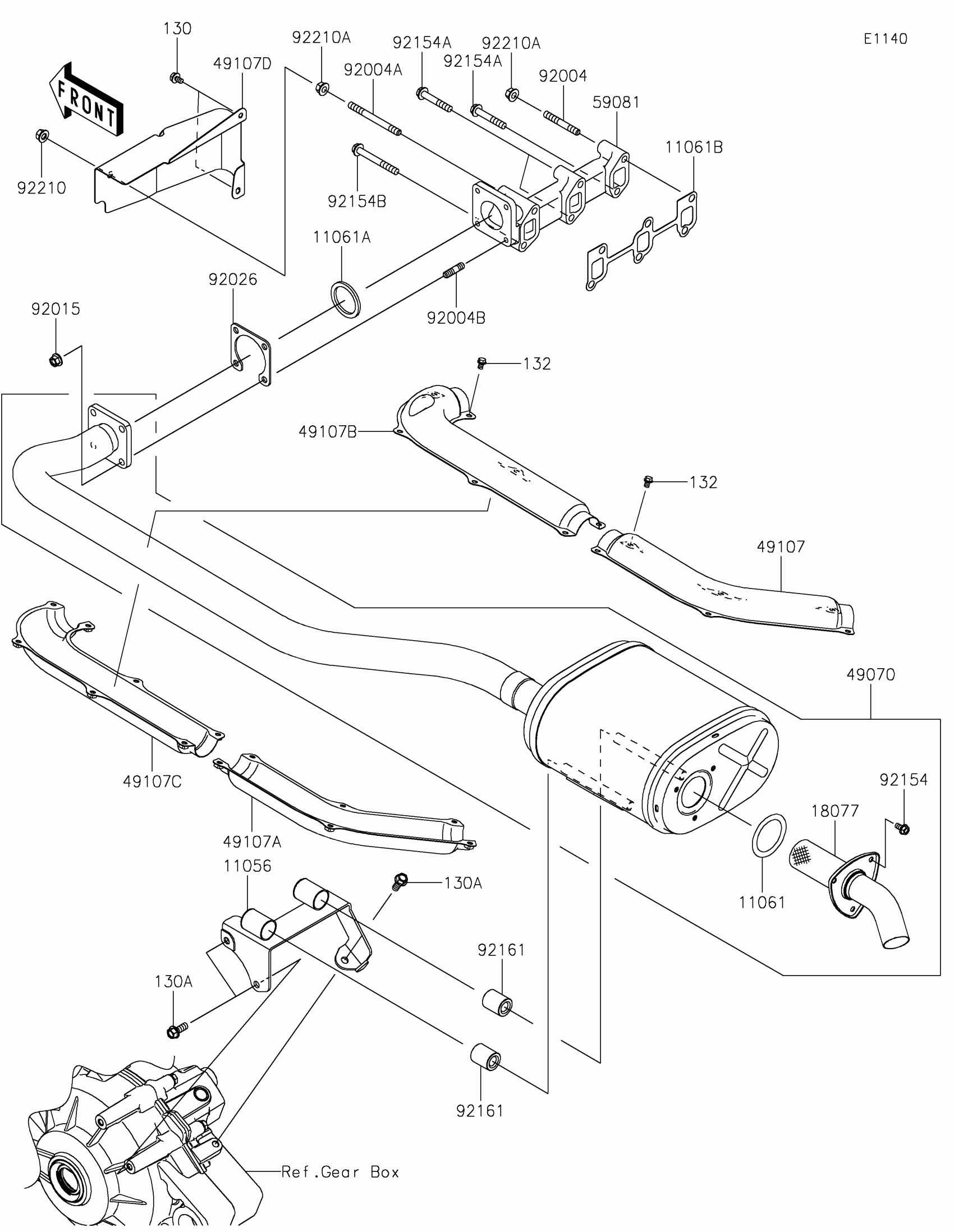

Kawasaki MULE PRO-DXT™ EPS Muffler(s) Diagram

#

Description
Price

11056

BRACKET,MUFFLER MOUNT

11056-7806

$31.32

11061

GASKET,EXHAUST PIPE

11061-0013

$11.73

11061A

GASKET,EXHAUST HOLDER

11061-0989

$7.88

11061B

GASKET,EXHAUST MANIFOLD

11061-1194

$14.46

18077

ARRESTER-SPARK

18077-0040

$172.15

49070

MUFFLER-COMP

49070-0844

$465.12

49107

COVER-EXHAUST PIPE,RR,UPP

49107-0771

$19.90

49107A

COVER-EXHAUST PIPE,RR,LWR

49107-0772

$28.94

49107B

COVER-EXHAUST PIPE,FR,UPP

49107-0773

$24.15

49107C

COVER-EXHAUST PIPE,FR,LWR

49107-0774

$30.19

49107D

COVER-EXHAUST PIPE

49107-0786

$37.25

59081

MANIFOLD-EXHAUST

59081-0295

$346.19

92004

STUD,8X50

92004-0746

$4.51

92004A

STUD,8X80

92004-0747

$4.22

92004B

STUD,8X22

92004-0748

$3.58

92015

NUT,8MM

92015-1402

$3.57

92026

SPACER

92026-0817

$12.69

92154

BOLT,FLANGED,6X12

92154-0852

$0.95

92154A

BOLT,FLANGED,8X50

92154-1990

$5.63

92154B

BOLT,FLANGED,8X71

92154-1991

$9.20

92161

DAMPER

92161-0961

$19.69

92210

NUT,8MM

92210-1456

$1.47

92210A

NUT,8MM

92210-1473

$1.47

130

BOLT-FLANGED,6X10

130BA0610

$0.97

130A

BOLT-FLANGED,8X20

130BA0820

$3.04

132

BOLT-FLANGED-SMALL,6X8

132BD0608

$2.34
