2025 Kawasaki Mule PRO-DXT™ EPS Crankshaft/piston Diagram

← All diagrams

Find the part on the Crankshaft/piston diagram for your 2025 Kawasaki Mule PRO-DXT™ EPS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

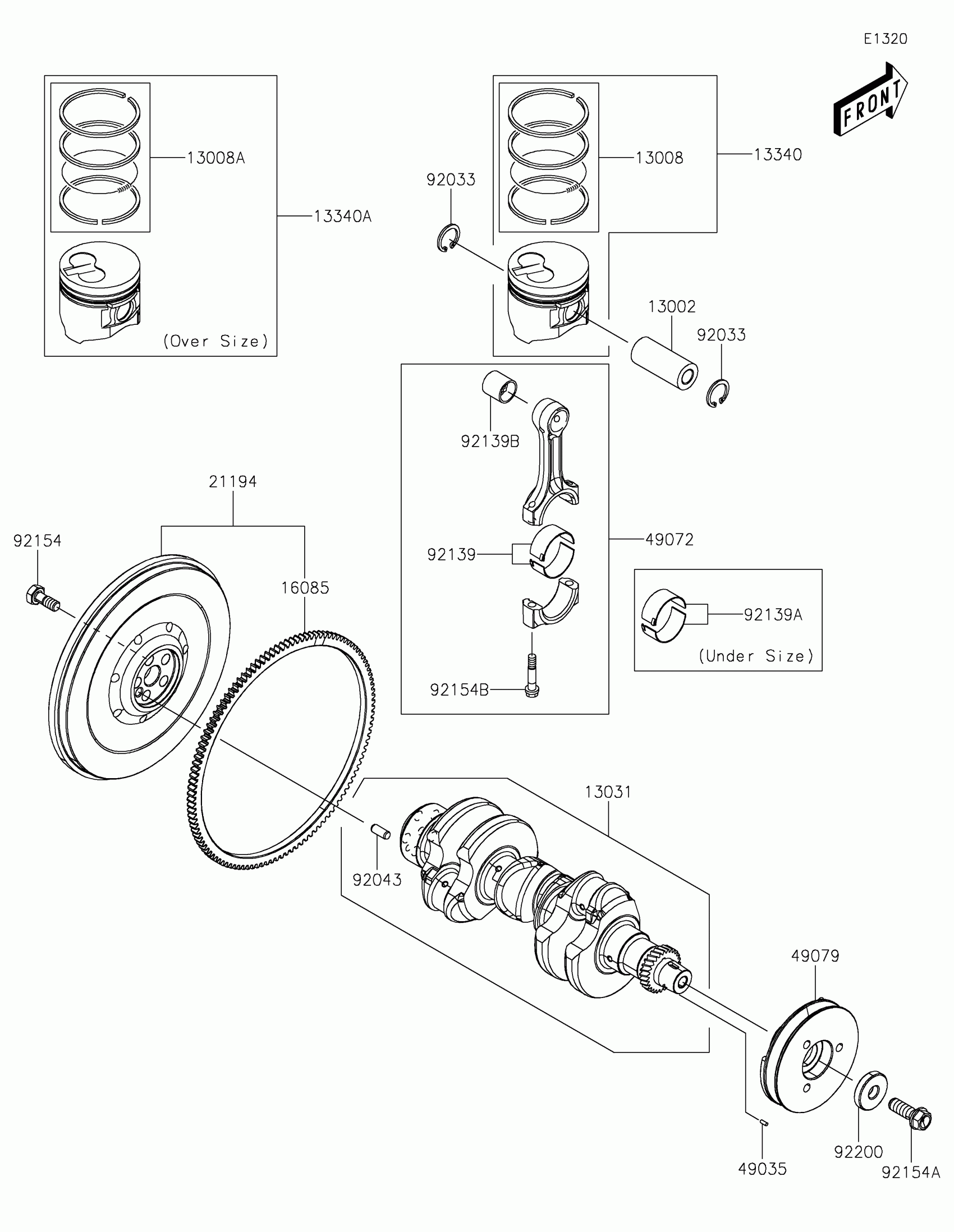

2025 Kawasaki Mule PRO-DXT™ EPS Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13002

PIN-PISTON

13002-0047

1
Out of stock

13008

RING-SET-PISTON,STD

13008-0563

1
Out of stock

13008A

RING-SET-PISTON,O/S,0.25

13008-0566

—
Out of stock

13031

CRANKSHAFT-COMP

13031-0841

1
Out of stock

13340

1

$345.88

In stock

13340A

—

$366.62

In stock

16085

GEAR,RING

16085-0655

1
Out of stock

21194

FLYWHEEL-COMP

21194-0037

1
Out of stock

49035

PIN-SPRING

49035-0017

1
Out of stock

49072

ROD-COMP-CONNECTING

49072-0001

1
Out of stock

49079

PULLEY-BELT

49079-0026

1
Out of stock

92033

RING-SNAP

92033-0774

1
Out of stock

92043

PIN,8X16

92043-0886

1
Out of stock

92139

BUSHING,STD

92139-0860

1
Out of stock

92139A

BUSHING,U/S,0.25

92139-0864

—
Out of stock

92139B

BUSHING,PISTON PIN

92139-0865

1
Out of stock

92154

BOLT,FLYWHEEL

92154-1992

1
Out of stock

92154A

BOLT,FLANGED

92154-1993

1
Out of stock

92154B

BOLT,CONNECTING ROD

92154-1994

1
Out of stock

92200

WASHER

92200-1807

1
Out of stock
