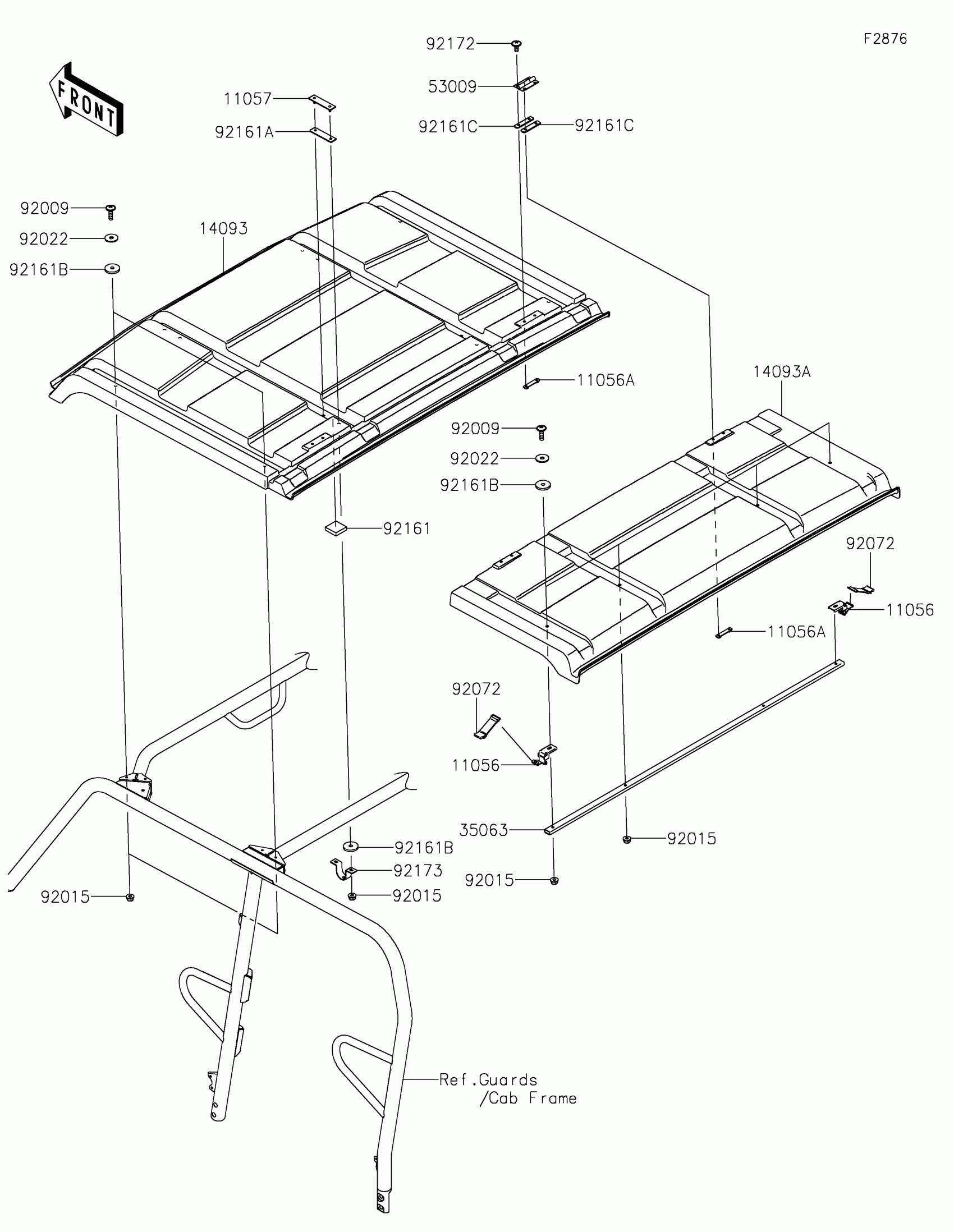

2021 Kawasaki Mule Pro-DXT™ Eps Diesel Fe Sun Top Diagram

← All diagrams

Find the part on the Sun Top diagram for your 2021 Kawasaki Mule Pro-DXT™ Eps Diesel Fe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki Mule Pro-DXT™ Eps Diesel Fe Sun Top Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET

11056-3815

1
Out of stock

11056A

BRACKET

11056-3910

1
Out of stock

11057

BRACKET

11057-0074

1
Out of stock

14093

COVER,SUNTOP,FR

14093-0017

1
Out of stock

14093A

COVER,SUNTOP,RR

14093-0018

1
Out of stock

35063

STAY,RR SUNTOP

35063-0944

1
Out of stock

53009

HINGE

53009-0034

1
Out of stock

92009

SCREW,6X22,BLACK

92009-1256

1
Out of stock

92015

NUT,LOCK,FLANGED,6MM

92015-1603

1
Out of stock

92022

WASHER,6.5X22X1.6

92022-237

1
Out of stock

92072

BAND,TOOL

92072-1176

1
Out of stock

92161

DAMPER,25.4X25.4X6.3

92161-1405

1
Out of stock

92161A

DAMPER

92161-1476

1
Out of stock

92161B

DAMPER,6X25X3.15

92161-1633

1
Out of stock

92161C

DAMPER

92161-1650

1
Out of stock

92172

SCREW,6X14

92172-0004

1
Out of stock

92173

CLAMP,U

92173-1224

1
Out of stock
