2021 Kawasaki Mule PRO-DXT™ EPS Diesel FE Door Diagram

← All diagrams

Find the part on the Door diagram for your 2021 Kawasaki Mule PRO-DXT™ EPS Diesel FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

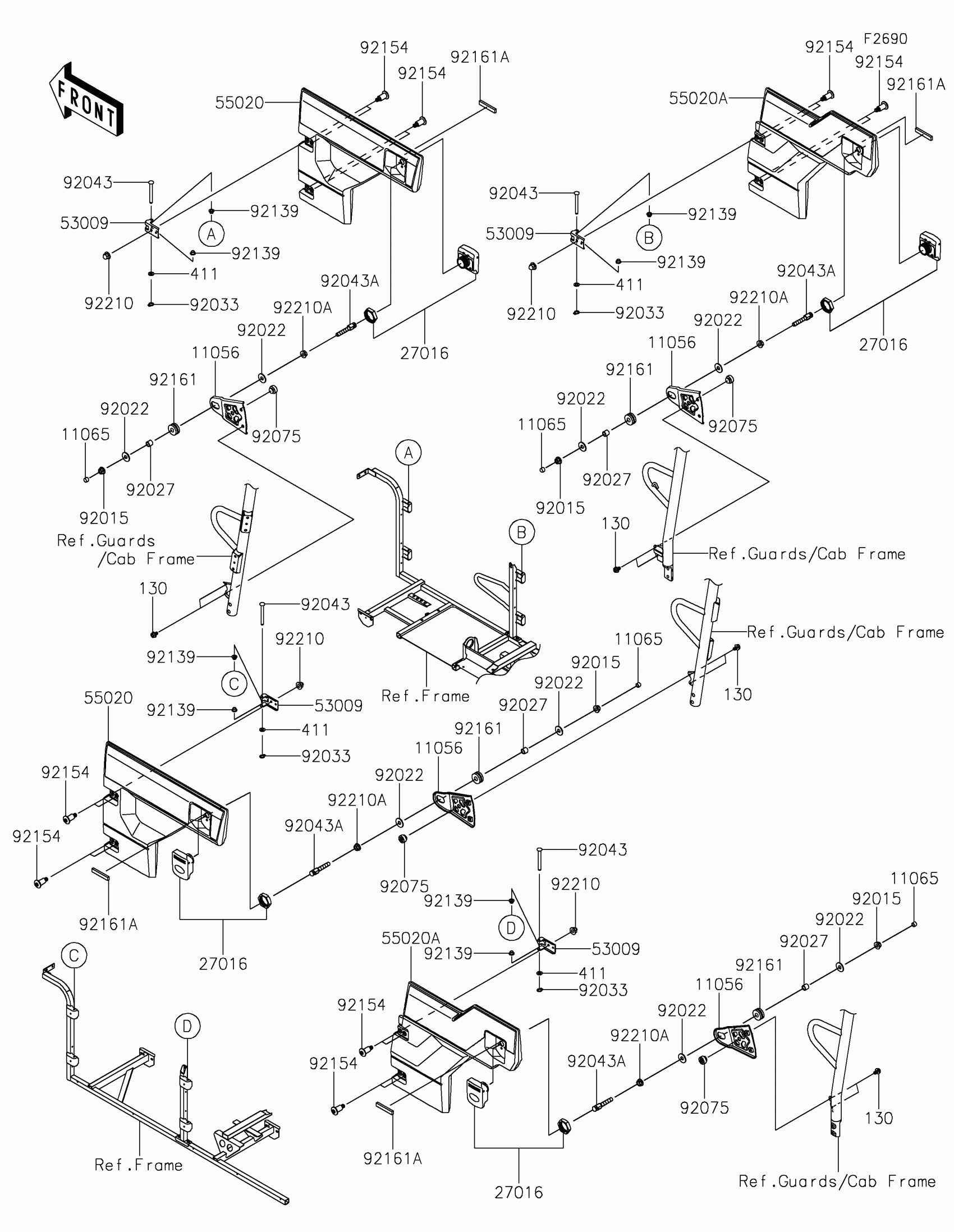

2021 Kawasaki Mule PRO-DXT™ EPS Diesel FE Door Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,DOOR GUARD

11056-2856

1

$6.86

In stock

11065

CAP

11065-7504

1

$1.32

In stock

130

BOLT-FLANGED,6X10

130BA0610

1

$1.12

In stock

27016

LOCK-ASSY

27016-0084

1

$71.88

In stock

411

WASHER-PLAIN,6MM

411AB0600

1

$1.08

In stock

53009

HINGE

53009-0303

1

$4.97

In stock

55020

GUARD,FR,F.BLACK

55020-0936-6Z

1

$127.58

In stock

55020A

GUARD,RR,F.BLACK

55020-0937-6Z

1

$127.58

In stock

92015

NUT,8MM

92015-1432

1

$5.21

In stock

92022

WASHER,PLAIN

92022-3026

1
Out of stock

92027

COLLAR

92027-102

1

$1.00

In stock

92033

RING-SNAP

92033-0719

1

$0.85

In stock

92043

PIN,6X56

92043-0743

1

$3.26

In stock

92043A

PIN,DOOR LOCK

92043-0788

1

$12.25

In stock

92075

DAMPER

92075-1598

1

$6.82

In stock

92139

BUSHING,6X8X6

92139-0709

1

$2.42

In stock

92154

BOLT,SOCKET,8X30

92154-1369

1

$3.07

In stock

92161

DAMPER,10X26X11.5

92161-1691

1

$1.00

In stock

92161A

DAMPER,9X52X5

92161-1837

1

$1.47

In stock

92210

NUT,CAP,8MM

92210-0488

1
Out of stock

92210A

NUT,FLANGED,8MM

92210-0555

1
Out of stock
