2021 Kawasaki Mule Pro-DXT™ Eps Diesel Fe Seat Diagram

← All diagrams

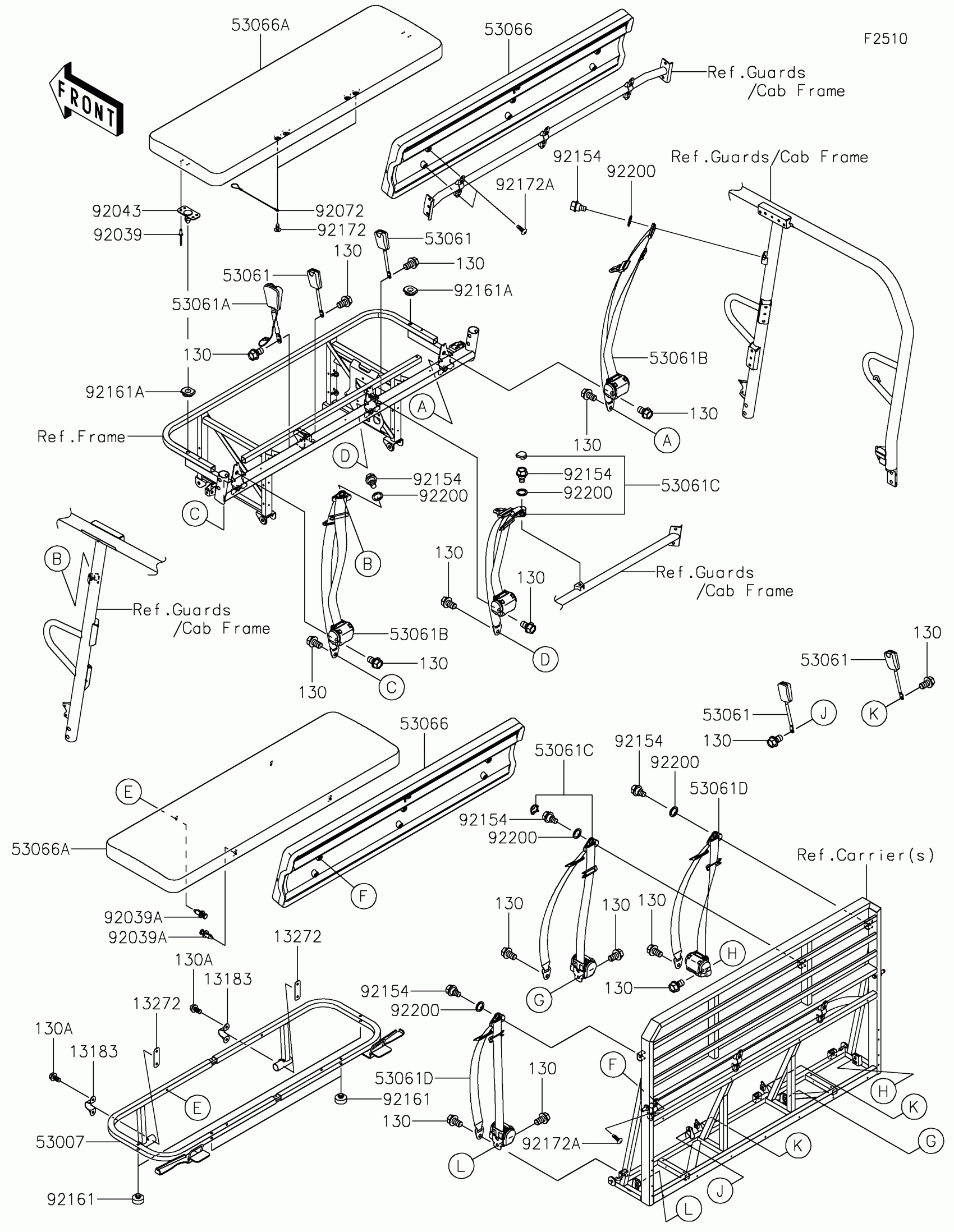

Find the part on the Seat diagram for your 2021 Kawasaki Mule Pro-DXT™ Eps Diesel Fe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki Mule Pro-DXT™ Eps Diesel Fe Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,12X20

130BA1220

1

$2.97

In stock

130A

BOLT-FLANGED,8X16

130CA0816

1

$2.05

In stock

13183

PLATE,SEAT

13183-1400

1

$5.98

In stock

13272

PLATE

13272-1699

1

$1.56

In stock

53007

FRAME-SEAT

53007-0364

1

$159.66

In stock

53061

BELT-SEAT,BUCKLE

53061-0039

1

$28.65

In stock

53061A

1

$50.22

In stock

53061B

BELT-SEAT,FR,LH&RH

53061-0351

1

$168.32

In stock

53061C

BELT-SEAT,MIDDLE

53061-0352

1

$156.66

In stock

53061D

BELT-SEAT,RR,LH&RH

53061-0353

1

$156.66

In stock

53066

SEAT-ASSY,BACK,BLACK

53066-0742-MA

1

$261.04

In stock

53066A

SEAT-ASSY,BOTTOM,BLACK

53066-0743-MA

1

$482.40

In stock

92039

RIVET

92039-0747

1

$2.05

In stock

92039A

RIVET

92039-0776

1

$0.80

In stock

92043

PIN

92043-0859

1

$1.61

In stock

92072

BAND

92072-0769

1

$3.41

In stock

92154

1

$5.66

In stock

92161

DAMPER

92161-1065

1

$2.97

In stock

92161A

DAMPER,10.5X30X8.2

92161-1784

1

$0.86

In stock

92172

SCREW,6X16

92172-0284

1

$0.94

In stock

92172A

SCREW,TAPPING,6X20

92172-0488

1

$2.44

In stock

92200

WASHER,16X22X2

92200-1798

1
Out of stock
