2007 Kawasaki Mule 600 Rear Brake Piping Diagram

← All diagrams

Find the part on the Rear Brake Piping diagram for your 2007 Kawasaki Mule 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

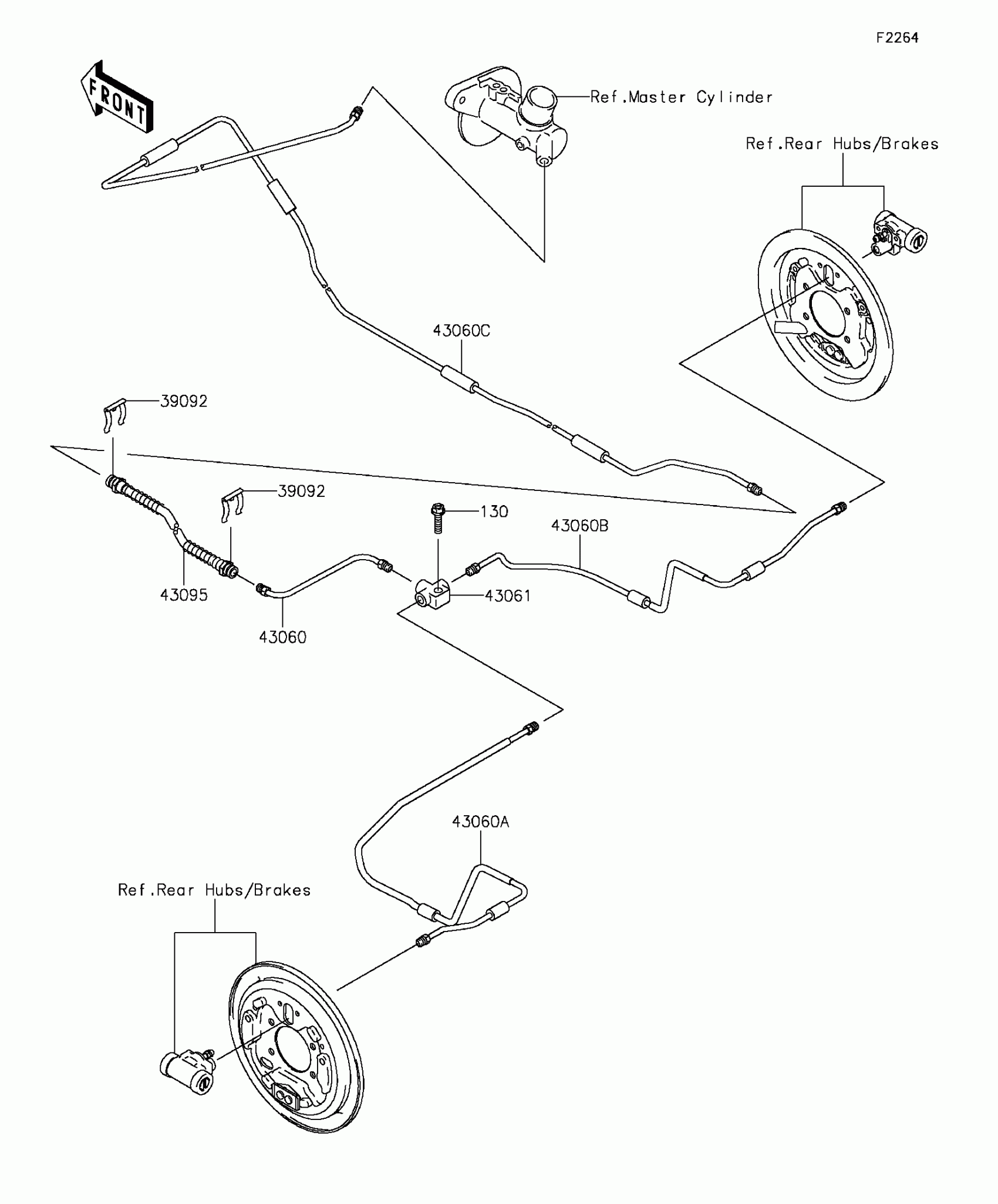

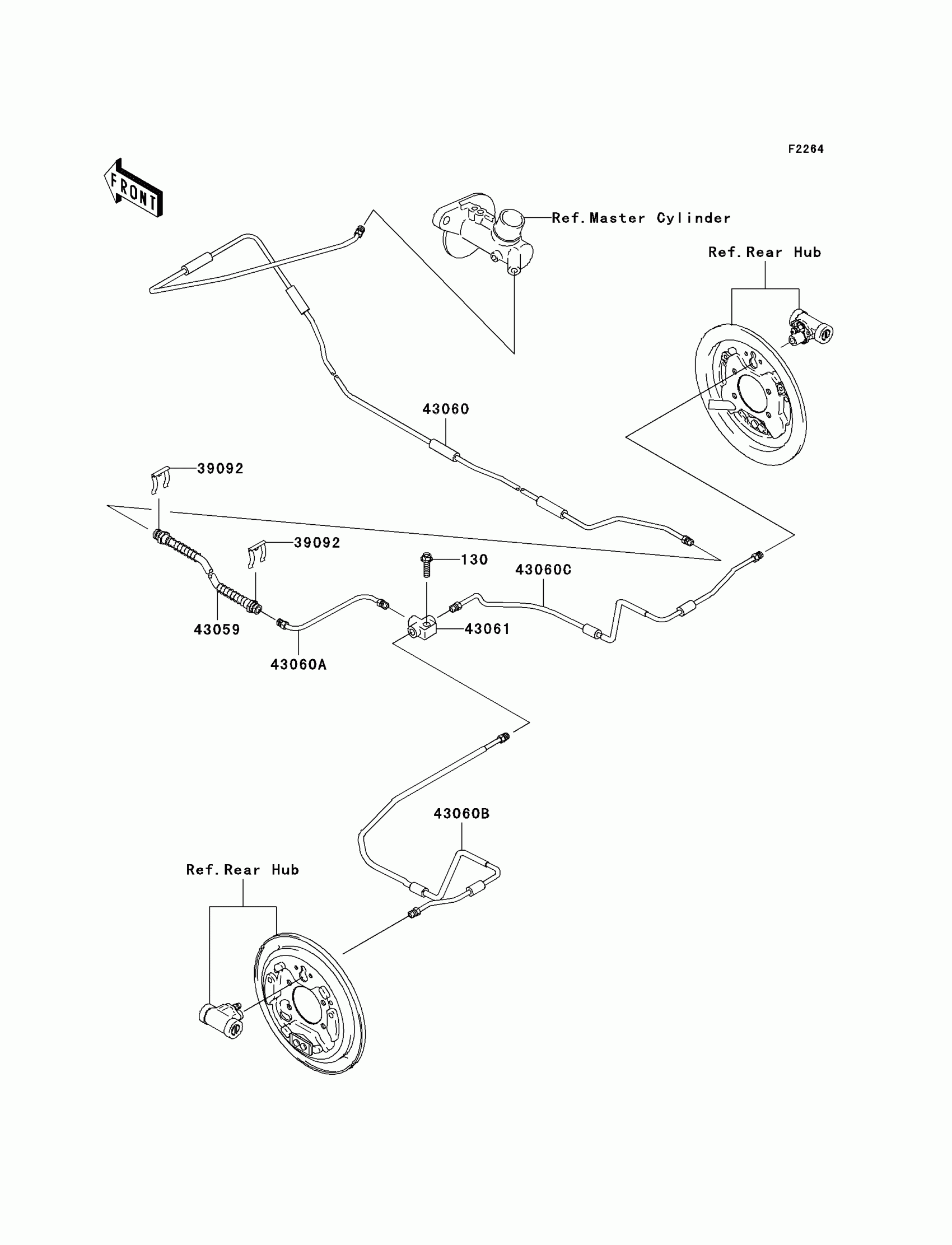

2007 Kawasaki Mule 600 Rear Brake Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X30

130D0830

1
Out of stock

39092

PIN-HAIR

39092-1052

1

$6.33

In stock

43059

HOSE-BRAKE,CNT

43059-1665

1
Out of stock

43060

PIPE-BRAKE,M/CYLINDER

43060-0003

1
Out of stock

43060A

PIPE-BRAKE,RR,CNT

43060-0006

1
Out of stock

43060B

PIPE-BRAKE,RR,LH

43060-0007

1
Out of stock

43060C

PIPE-BRAKE,RR,RH

43060-0008

1
Out of stock

43061

JOINT-BRAKE

43061-1063

1
Out of stock
