2007 Kawasaki Mule 600 Front Hubs/brakes Diagram

← All diagrams

Find the part on the Front Hubs/brakes diagram for your 2007 Kawasaki Mule 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

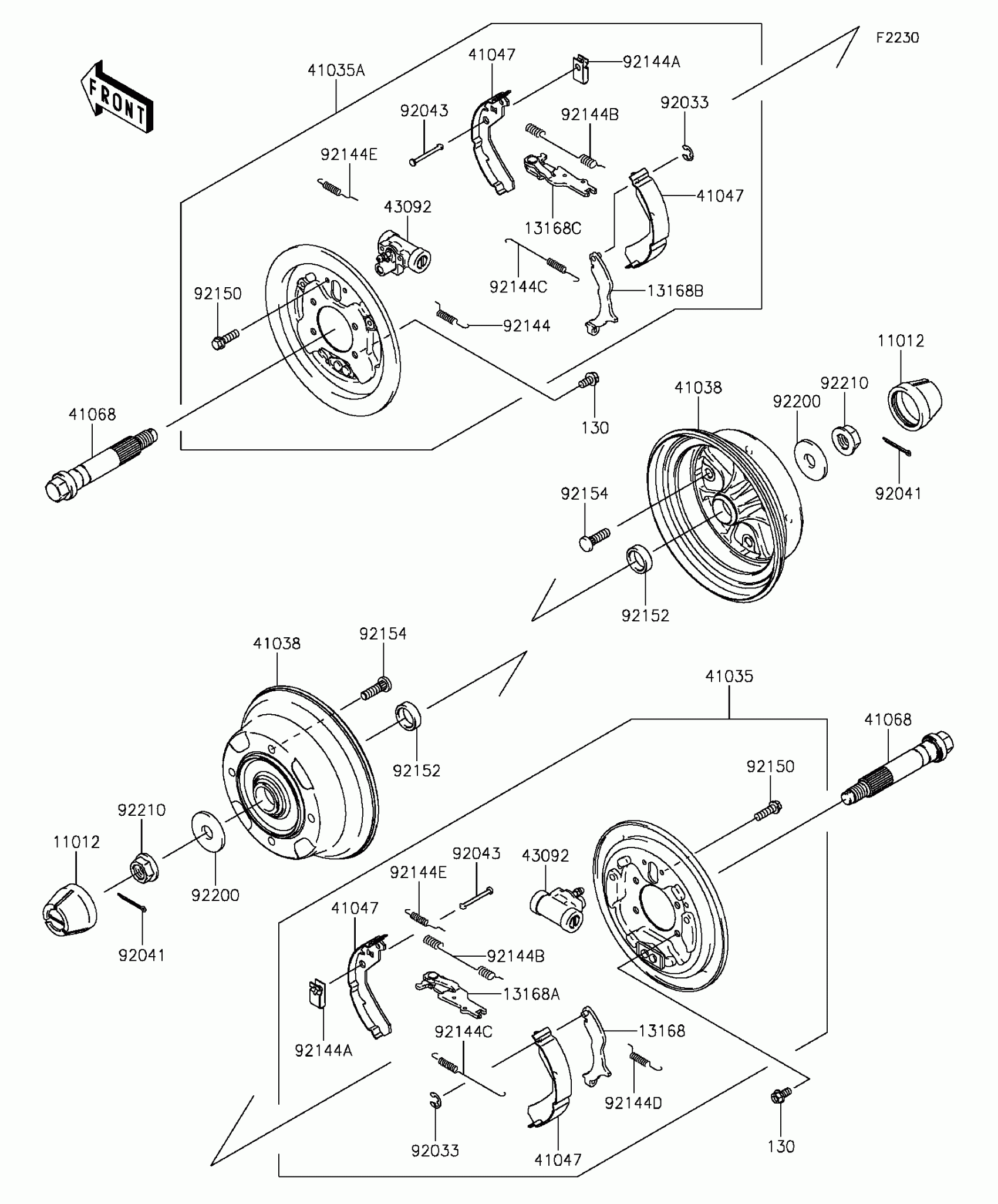

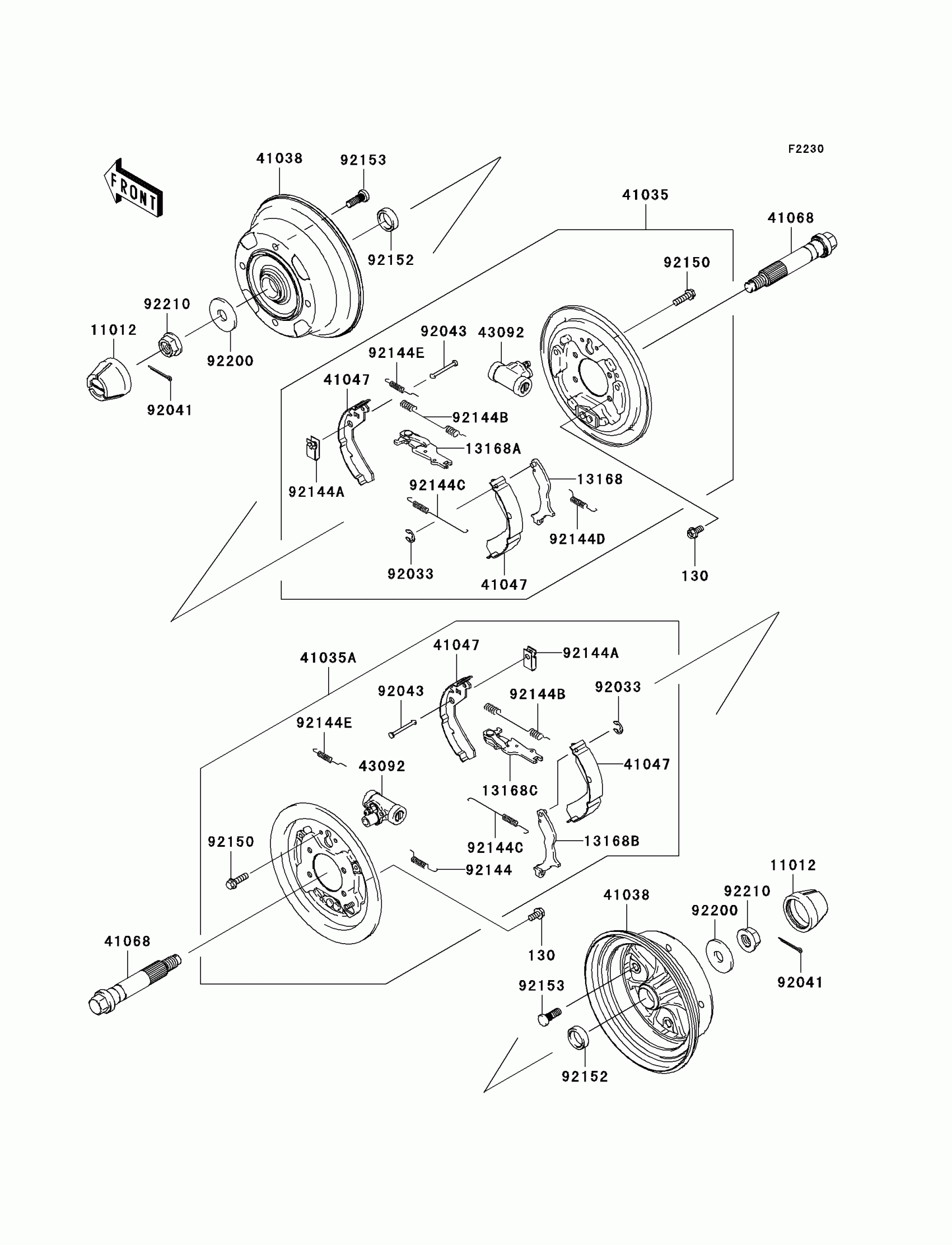

2007 Kawasaki Mule 600 Front Hubs/brakes Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X16

130T0816

1
Out of stock

11012

CAP,WHEEL

11012-1969

1
Out of stock

13168

LEVER,BRAKE,LH

13168-0065

1
Out of stock

13168A

LEVER,BRAKE,LH

13168-0066

1
Out of stock

13168B

LEVER,BRAKE,RH

13168-0067

1
Out of stock

13168C

LEVER,BRAKE,RH

13168-0068

1
Out of stock

41035

PANEL-ASSY-BRAKE,FR,LH

41035-0016

1
Out of stock

41035A

PANEL-ASSY-BRAKE,FR,RH

41035-0017

1
Out of stock

41038

DRUM,FRONT BRAKE

41038-0013

1

$223.79

In stock

41047

SHOE-ASSY-BRAKE

41047-0001

1

$26.63

In stock

41068

AXLE,FR

41068-0026

1
Out of stock

43092

CYLINDER

43092-0001

1
Out of stock

92033

RING-SNAP

92033-1279

1
Out of stock

92041

COTTER,4.0X35

92041-1053

1
Out of stock

92043

PIN,SHOE HOLD

92043-1460

1
Out of stock

92144

SPRING,RH

92144-1608

1
Out of stock

92144A

SPRING,SHOE HOLD

92144-1609

1
Out of stock

92144B

SPRING,RETURN,UPP

92144-1612

1
Out of stock

92144C

SPRING,RETURN,LWR

92144-1613

1
Out of stock

92144D

SPRING,LH

92144-1614

1
Out of stock

92144E

SPRING

92144-1615

1
Out of stock

92150

BOLT,FLANGED,6X10

92150-1664

1
Out of stock

92152

COLLAR,25X34X10

92152-0164

1
Out of stock

92153

BOLT,10X30

92153-0920

1
Out of stock

92200

WASHER,18.5X52X4.5

92200-1474

1
Out of stock

92210

NUT,FLANGED,18MM

92210-0132

1
Out of stock
