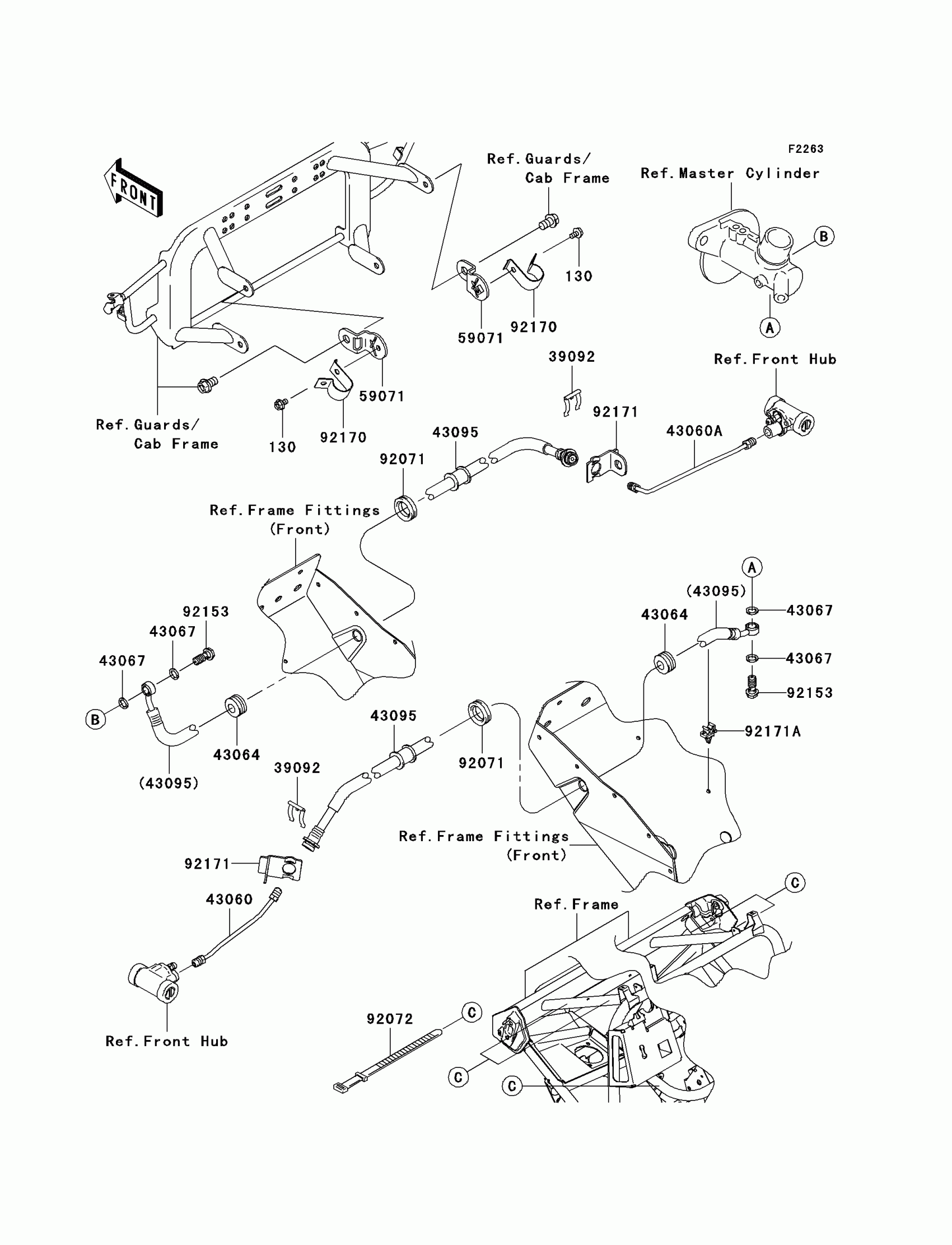

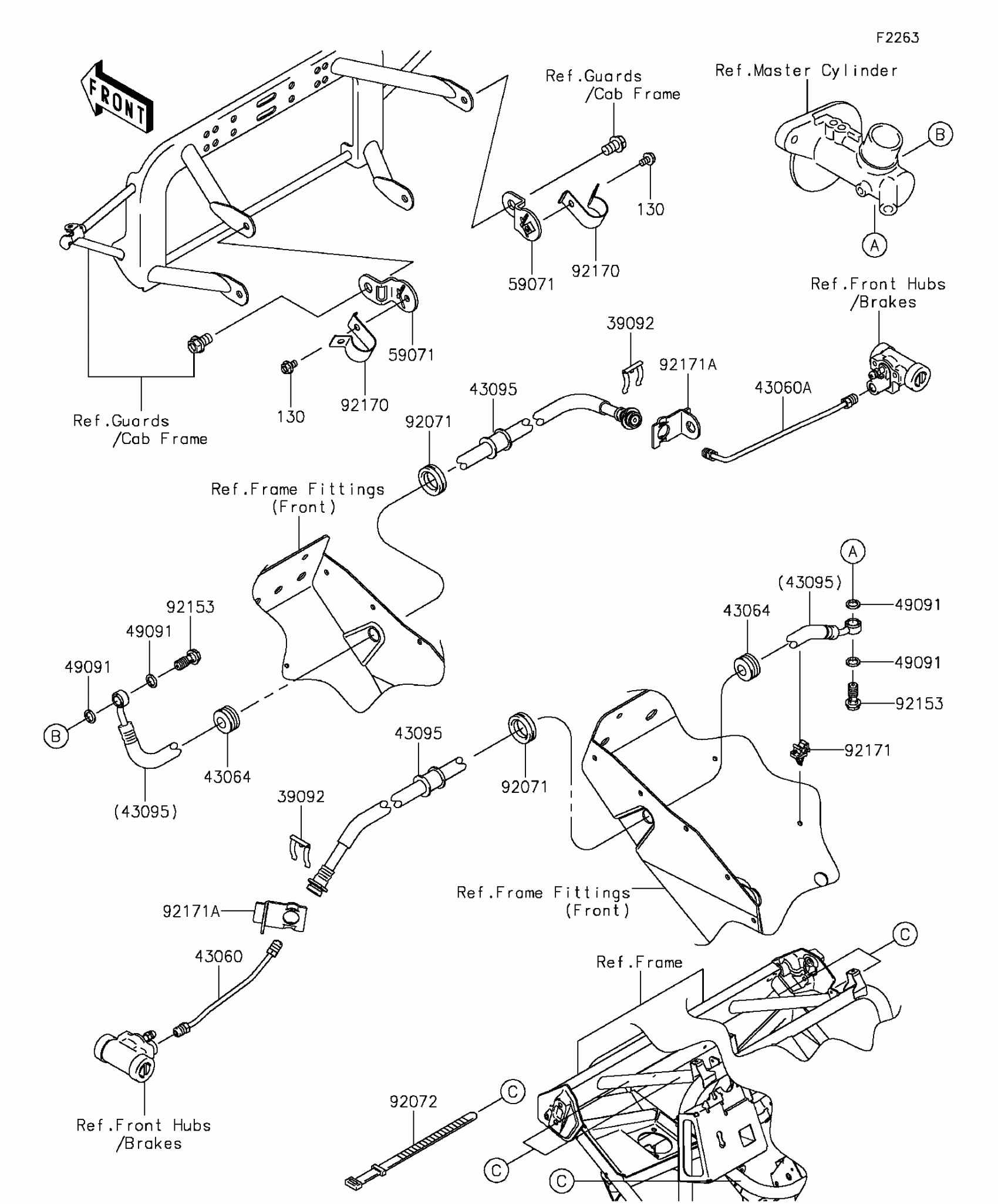

Kawasaki Mule 600 Front Brake Piping Diagram

Description

Price

130

BOLT-FLANGED

130D0610

Unavailable

39092

PIN-HAIR

39092-1052

$6.07

43060

PIPE-BRAKE,FR,LH

43060-0001

$25.24

43060A

PIPE-BRAKE,FR,RH

43060-0002

$25.24

43064

GROMMET,HOSE CLAMP

43064-007

$4.18

43067

WASHER,10.5X15X1.5

43067-001

$1.57

43095

HOSE-BRAKE,FR

43095-0055

$26.18

59071

JOINT

59071-0024

$3.25

92071

GROMMET

92071-3704

$5.37

92072

BAND,L=186

92072-056

$3.81

92153

BOLT,OIL,L=23

92153-0627

$4.15

92170

CLAMP,HOSE

92170-1173

$8.20

92171

CLAMP

92171-0297

$12.07

92171A

CLAMP

92171-0339

$2.68
