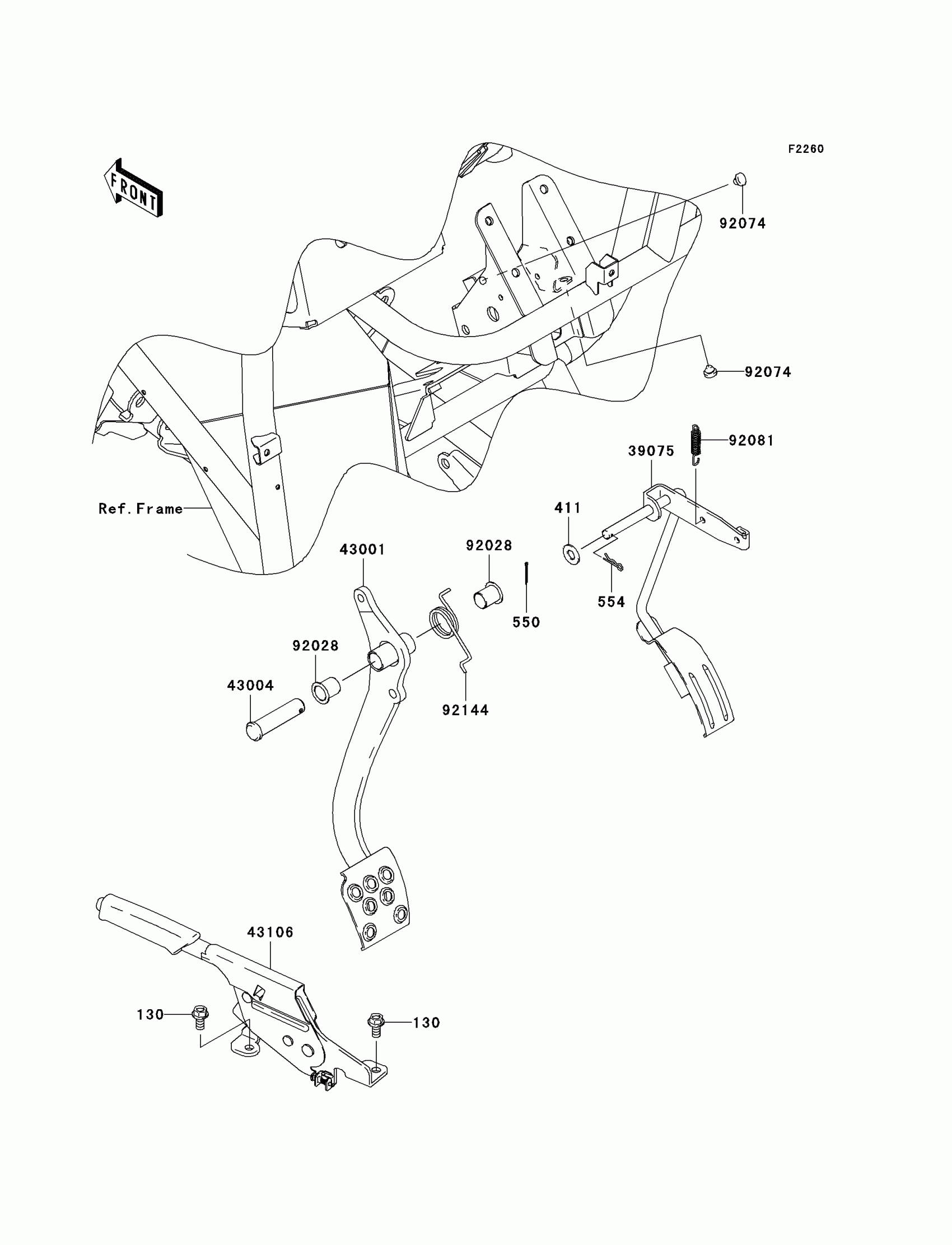

Kawasaki Mule 600 Brake Pedal/Throttle Lever Diagram

Description

Price

130

BOLT-FLANGED

130D0816

Unavailable

411

WASHER-PLAIN,10MM

411E1000

$0.76

550

PIN-COTTER,2.5X25

550D2525

Unavailable

554

PIN-SNAP,10MM

554A1000

$0.73

39075

LEVER-THROTTLE

39075-0005

$29.46

43001

LEVER-BRAKE,PEDAL

43001-0038

$42.16

43004

SHAFT-BRAKE

43004-1128

$16.64

43106

LEVER-ASSY-PARKING BRAKE

43106-1003

Unavailable

92028

BUSHING

92028-1571

$10.27

92074

PLUG,7X2

92074-028

$3.81

92081

SPRING,BRAKE LEVER RETURN

92081-1922

$4.64

92144

SPRING

92144-1536

$6.33
