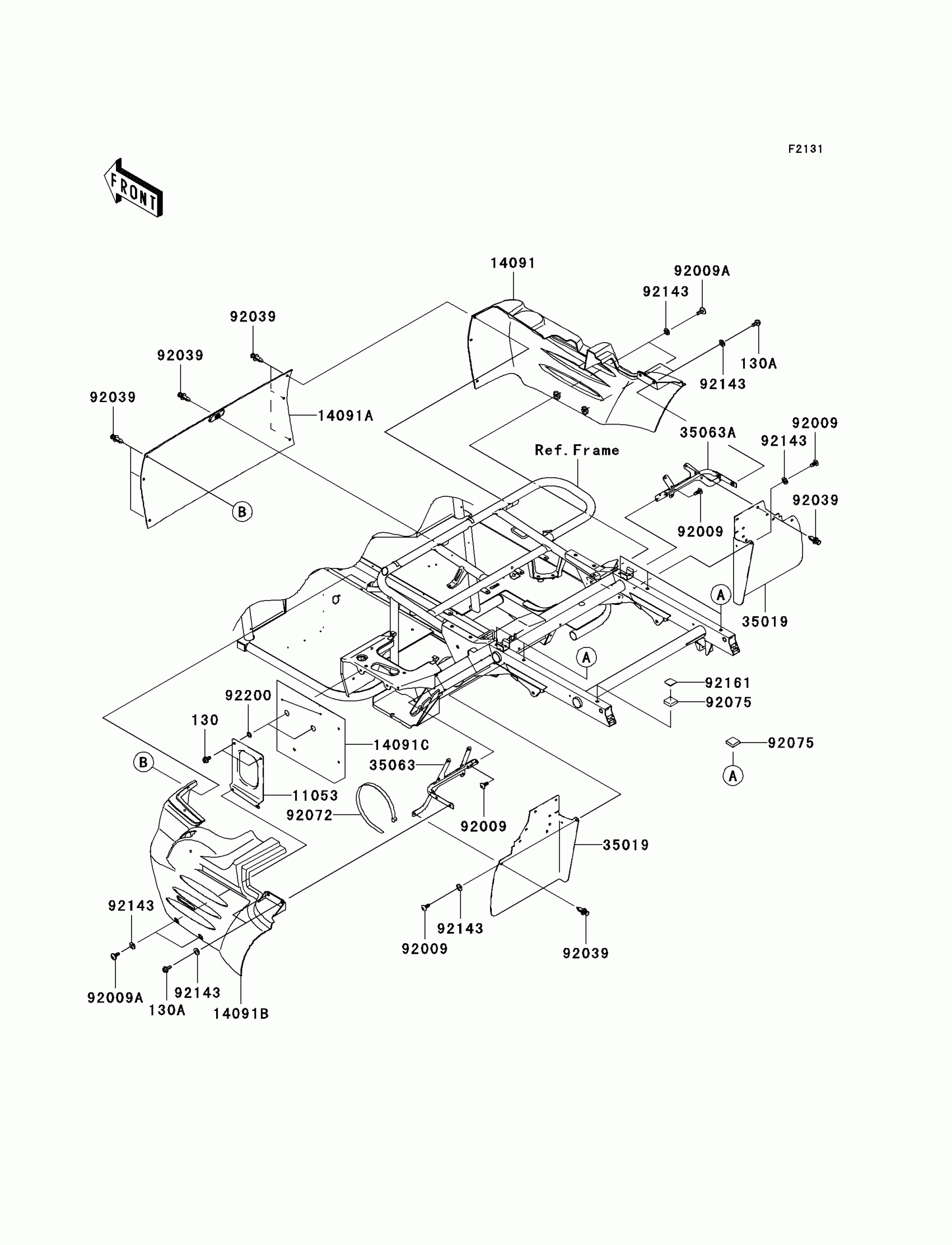

Kawasaki Mule 600 Frame Fittings(Rear) Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

11053

BRACKET

11053-0857

$51.11

14091

COVER,REAR SIDE,RH,BLACK

14091-0224-283

$52.72

14091A

COVER,FRONT GRILLE,BLACK

14091-0341-283

$38.26

14091B

COVER,REAR SIDE,LH,BLACK

14091-0395-283

$52.72

14091C

COVER

14091-0464

$25.64

35019

FLAP,RR,FR,RH

35019-0029

$38.31

35063

STAY,LH

35063-0186

$84.06

35063A

STAY,RH

35063-0187

$84.06

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X16

92009-1621

Unavailable

92039

RIVET

92039-1229

$0.80

92072

BAND,L=368.3

92072-3872

$1.20

92075

DAMPER

92075-1882

$6.18

92143

COLLAR

92143-1087

$2.98

92161

DAMPER

92161-0256

Unavailable

92200

WASHER,7.04X12.5X0.6

92200-0234

$1.70
