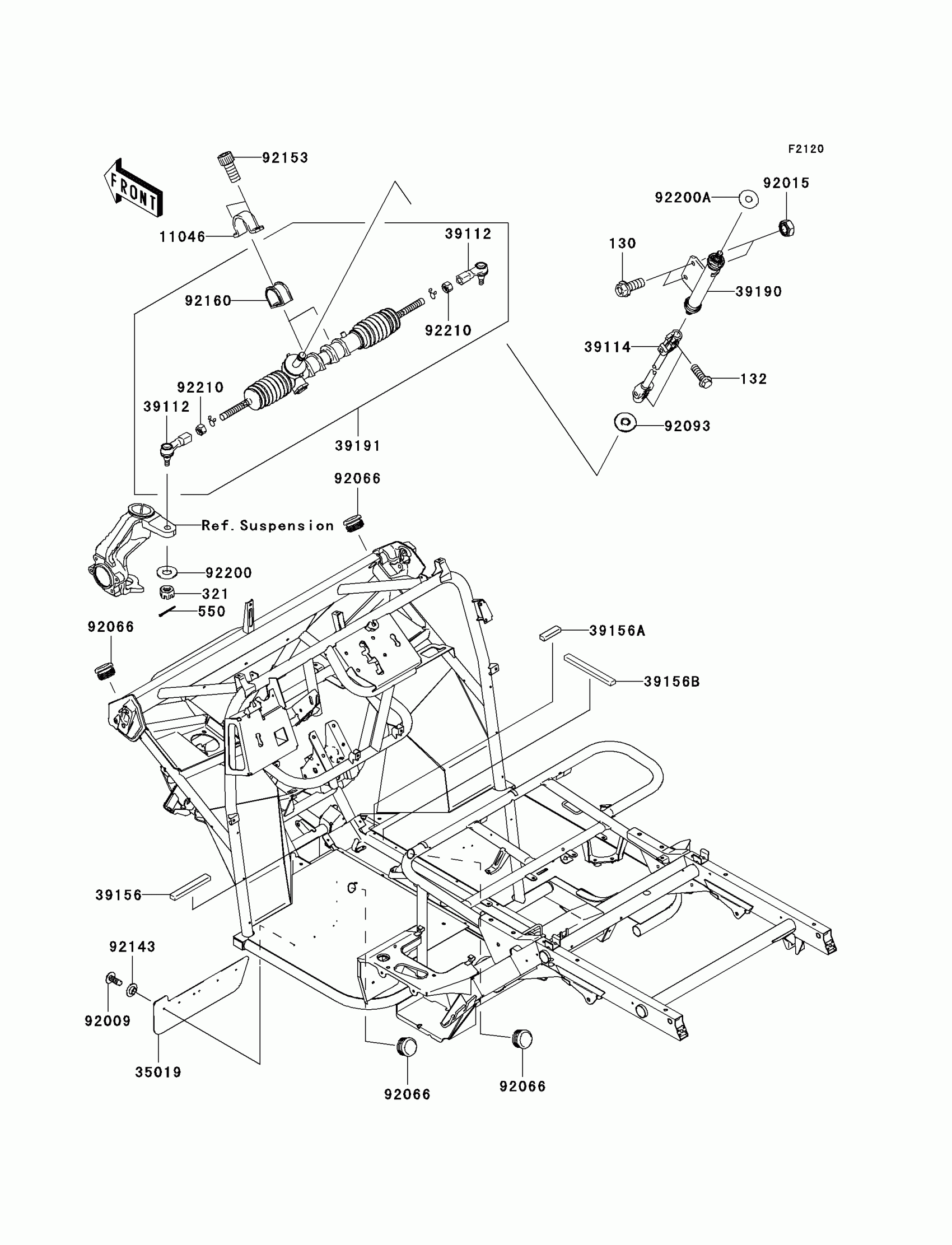

Kawasaki Mule 600 Frame Diagram

#

Description
Price

130

BOLT-FLANGED,10X25

130J1025

Unavailable

132

BOLT-FLANGED-SMALL,8X25

132J0825

Unavailable

321

NUT-CASTLE

321H1000

Unavailable

550

PIN-COTTER,2.0X22

550D2022

$1.80

11046

BRACKET,STEERING GEAR

11046-1858

Unavailable

35019

FLAP,FR

35019-0037

$47.83

39112

RODEND-TIE,STEERING GEAR

39112-0008

$104.28

39114

SHAFT-COMP-STRG

39114-0003

$335.49

39156

PAD

39156-0068

$3.37

39156A

PAD

39156-0069

$1.76

39156B

PAD

39156-0070

$4.64

39190

SHAFT-ASSY-STEERING

39190-0001

Unavailable

39191

GEAR-ASSY-STEERING

39191-0001

$971.61

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92015

NUT,LOCK,10MM,BLACK

92015-1189

$5.61

92066

PLUG

92066-0036

$1.52

92093

SEAL

92093-1313

$7.17

92143

COLLAR

92143-1087

$2.98

92153

BOLT,SOCKET,10X23

92153-1269

$1.98

92160

DAMPER,STEERING GEAR

92160-1084

$28.70

92200

WASHER,10.3X23X1.6

92200-0140

$4.25

92200A

WASHER,15X45X0.6

92200-1130

$3.95

92210

NUT,14MM

92210-0217

$4.95
