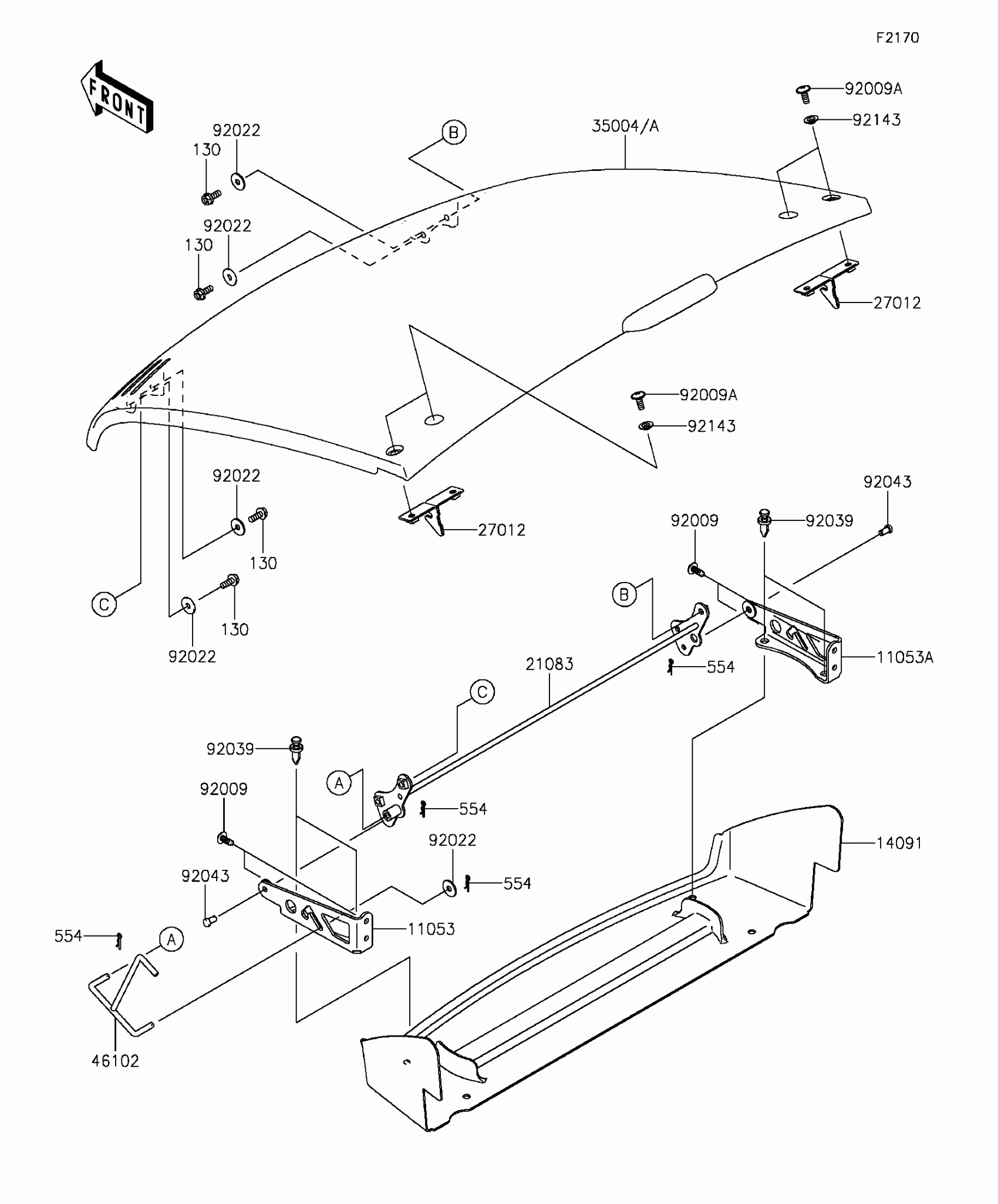

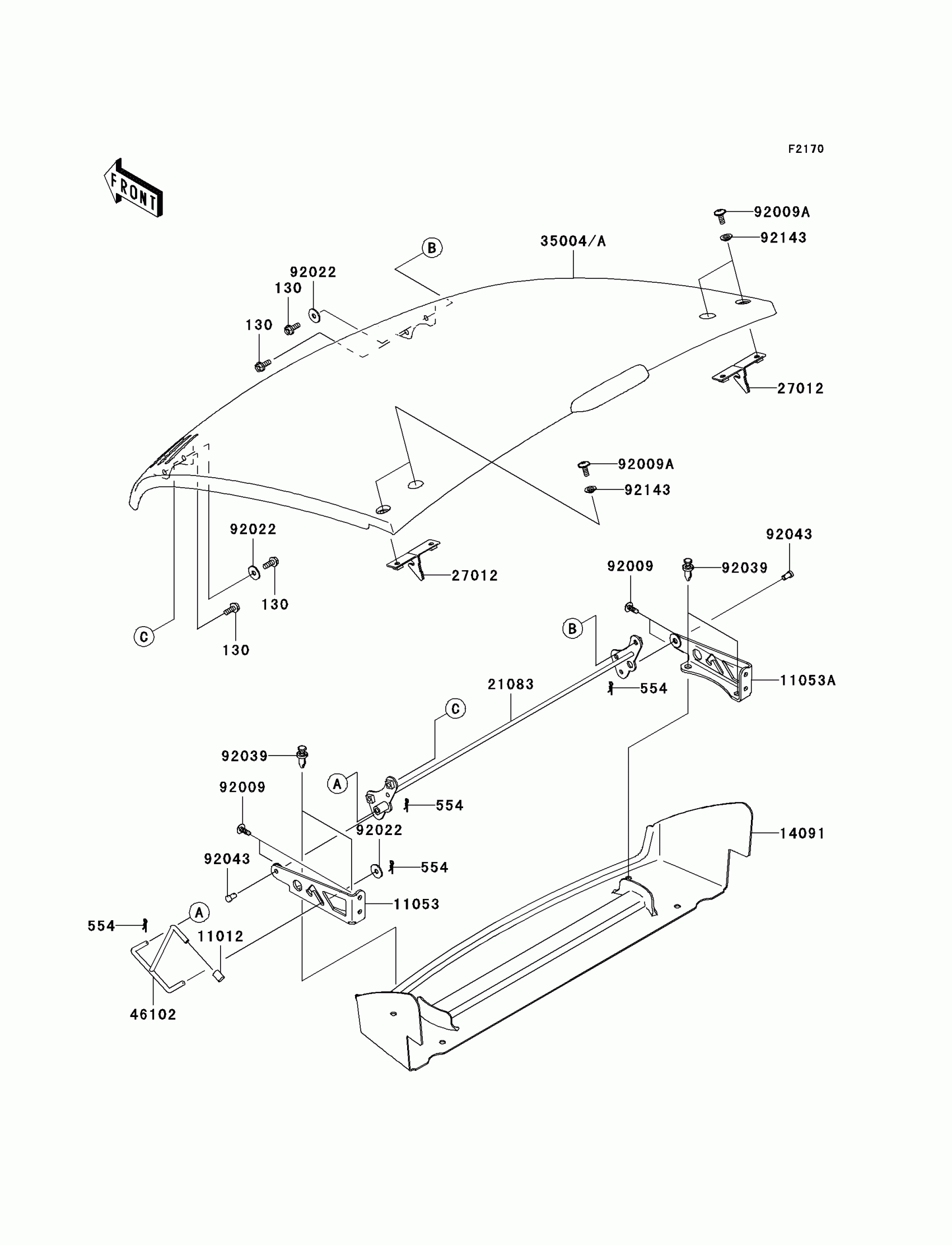

Kawasaki Mule 600 Fenders Diagram

Description

Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

554

PIN,SNAP

554A0600

Unavailable

11012

CAP

11012-1899

$3.66

11053

BRACKET

11053-1451

$9.32

11053A

BRACKET

11053-1452

$9.32

14091

COVER

14091-0368

$75.92

21083

ARM

21083-0021

$25.25

27012

HOOK

27012-0065

$4.62

35004

FENDER-FRONT,HOOD,A.RED

35004-0029-260

Unavailable

46102

ROD

46102-0048

$18.92

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X16

92009-1621

Unavailable

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92039

RIVET

92039-1229

$0.80

92043

PIN,6X9

92043-1626

$1.62

92143

COLLAR

92143-1087

$2.98

35004A

FENDER-FRONT,HOOD,H.GREEN

35004-0029-6A

$85.28
