2007 Kawasaki Mule 600 Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2007 Kawasaki Mule 600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

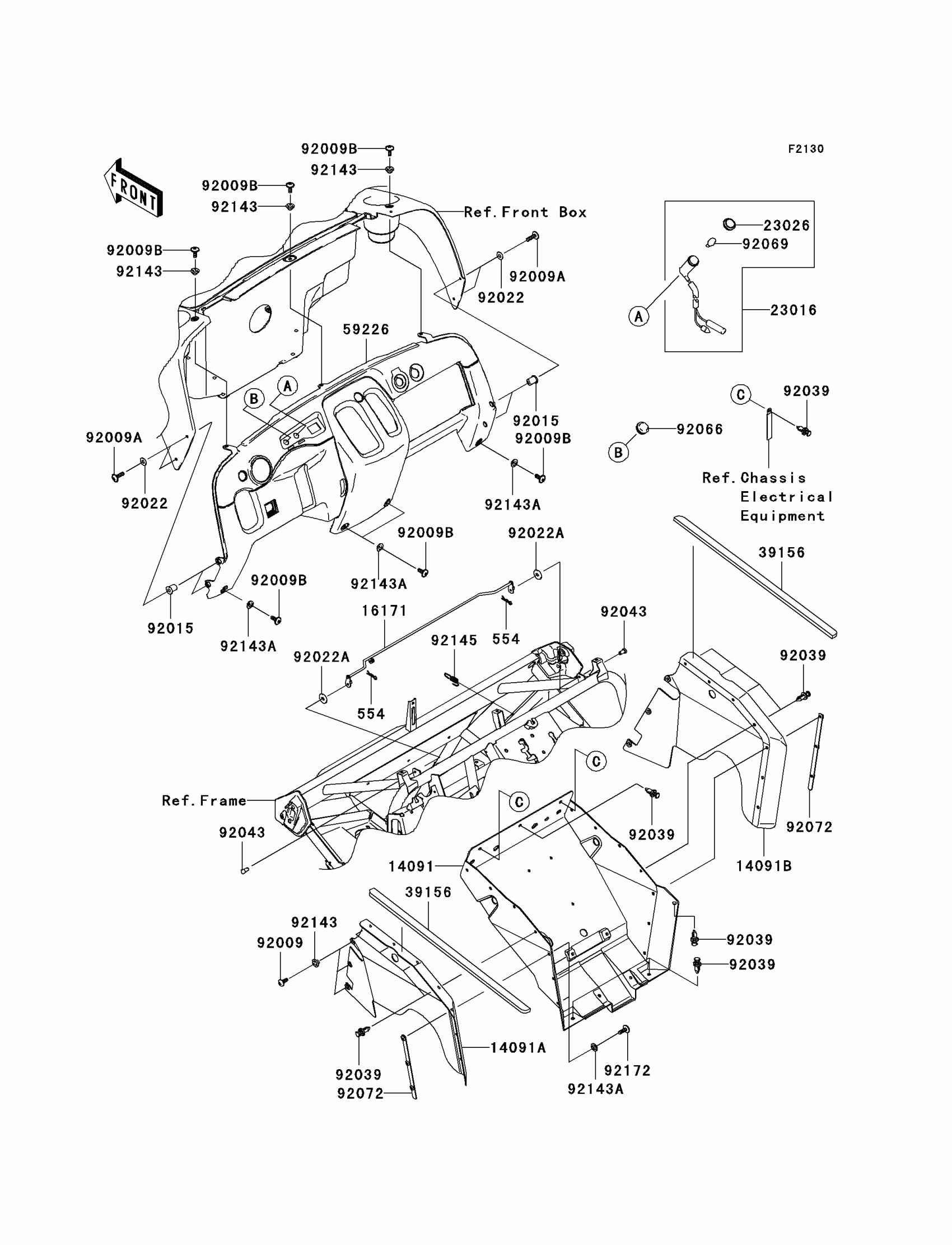

2007 Kawasaki Mule 600 Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

554

PIN,SNAP

554A0600

1
Out of stock

14091

COVER,FLOOR,CNT

14091-0408

1
Out of stock

14091A

COVER,FLOOR,SIDE,LH

14091-0424

1
Out of stock

14091B

COVER,FLOOR,SIDE,RH

14091-0425

1
Out of stock

16171

LINK,HOOD

16171-0010

1
Out of stock

23016

LAMP-ASSY,TEMP

23016-1128

1
Out of stock

23026

LENS,TEMP LAMP

23026-1157

1
Out of stock

39156

PAD

39156-0071

1

$25.37

In stock

59226

PANEL-CONTROL,GRAY

59226-0009-284

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92009A

SCREW,6X22,BLACK

92009-1256

1
Out of stock

92009B

SCREW,6X16

92009-1621

1
Out of stock

92015

NUT

92015-1700

1
Out of stock

92022

WASHER,6.5X16X1

92022-1143

1
Out of stock

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

1
Out of stock

92039

RIVET

92039-1229

1
Out of stock

92043

PIN,6X9

92043-1626

1
Out of stock

92066

PLUG

92066-1231

1
Out of stock

92069

BULB,12V 1.7W,T10

92069-1059

1
Out of stock

92072

BAND

92072-0042

1
Out of stock

92143

COLLAR

92143-1057

1
Out of stock

92143A

COLLAR

92143-1087

1
Out of stock

92145

SPRING

92145-0215

1
Out of stock

92172

SCREW,6X18

92172-0002

1
Out of stock
