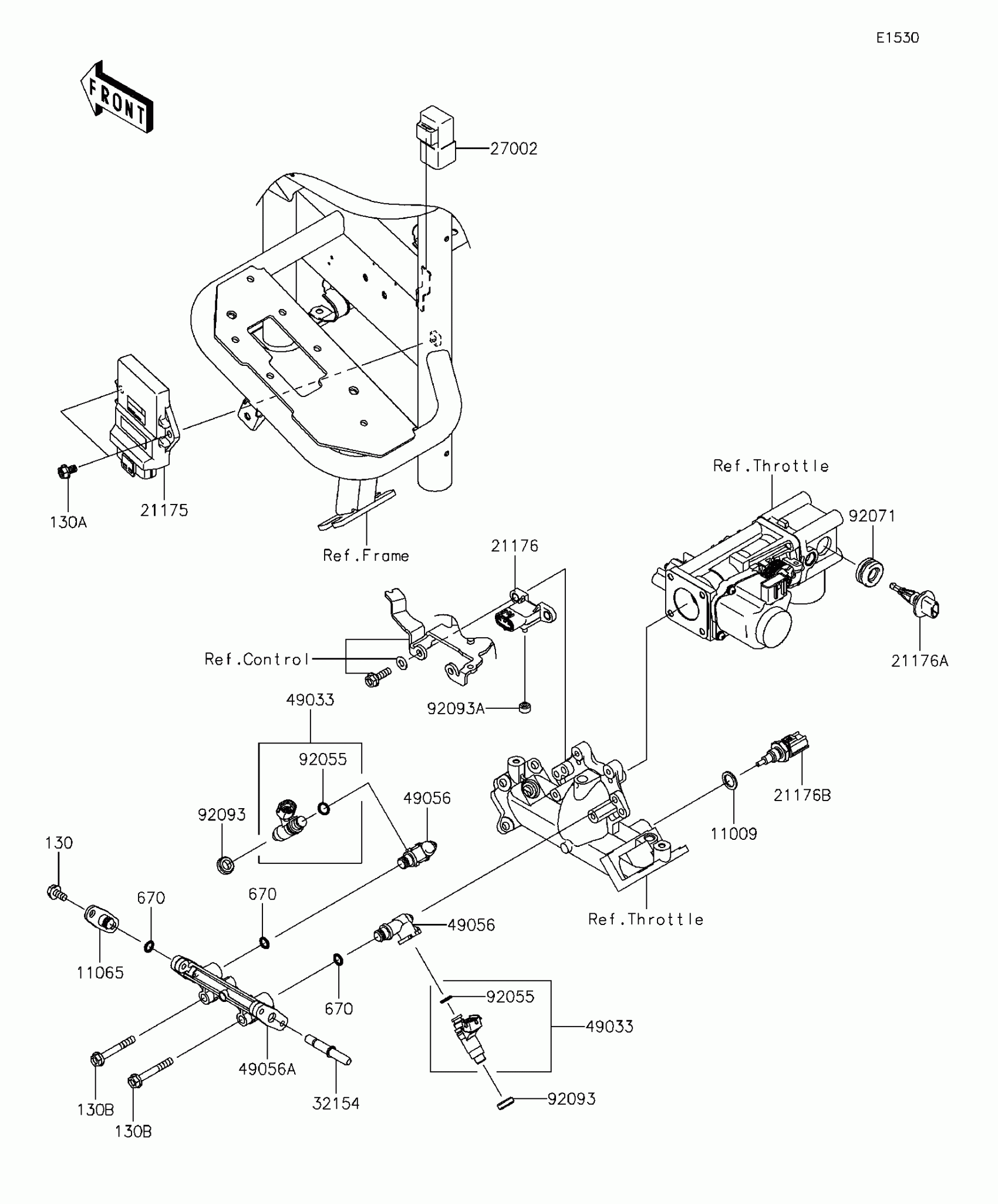

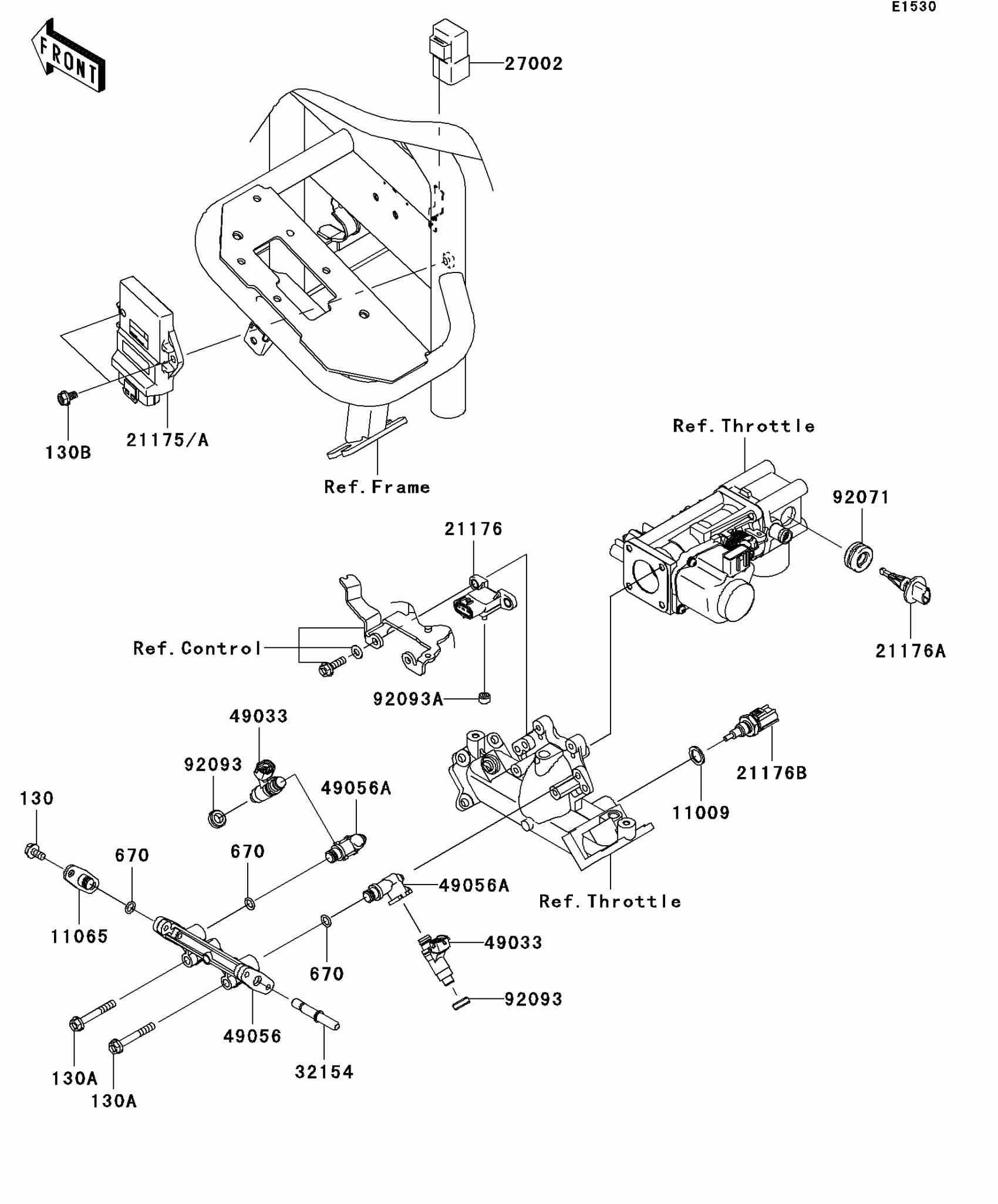

Kawasaki Mule 4010 Trans4x4 Fuel Injection Diagram

Description

Price

11009

GASKET,12.5X18X1.5

11009-1376

$1.56

11065

CAP

11065-2129

$15.63

21175

CONTROL UNIT-ELECTRONIC,F.I.

21175-0210

$788.65

21175A

CONTROL UNIT-ELECTRONIC,F.I.

21175-0332

$788.65

21176

SENSOR,PRESSURE

21176-1095

$136.32

21176A

SENSOR,AIR TEMP

21176-2106

$21.64

21176B

SENSOR

21176-2111

$34.70

27002

RELAY-ASSY

27002-1088

$36.60

32154

PIPE

32154-2084

Unavailable

49033

NOZZLE-INJECTION

49033-2060

$135.37

49056

PIPE-INJECTION

49056-2061

$59.24

49056A

PIPE-INJECTION

49056-2062

$21.73

92071

GROMMET

92071-2140

$3.37

92093

SEAL

92093-2119

$2.02

92093A

SEAL

92093-2127

$1.39

130

BOLT-FLANGED,6X12

130BA0612

$1.46

130A

BOLT-FLANGED,6X45

130BA0645

$0.92

130B

BOLT-FLANGED,6X16

130BB0616

$1.73

670

O RING,8MM

670E1508

$1.53
