2021 Kawasaki Mule™ 4010 TRANS4x4® FE Shift Lever Diagram

← All diagrams

Find the part on the Shift Lever diagram for your 2021 Kawasaki Mule™ 4010 TRANS4x4® FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

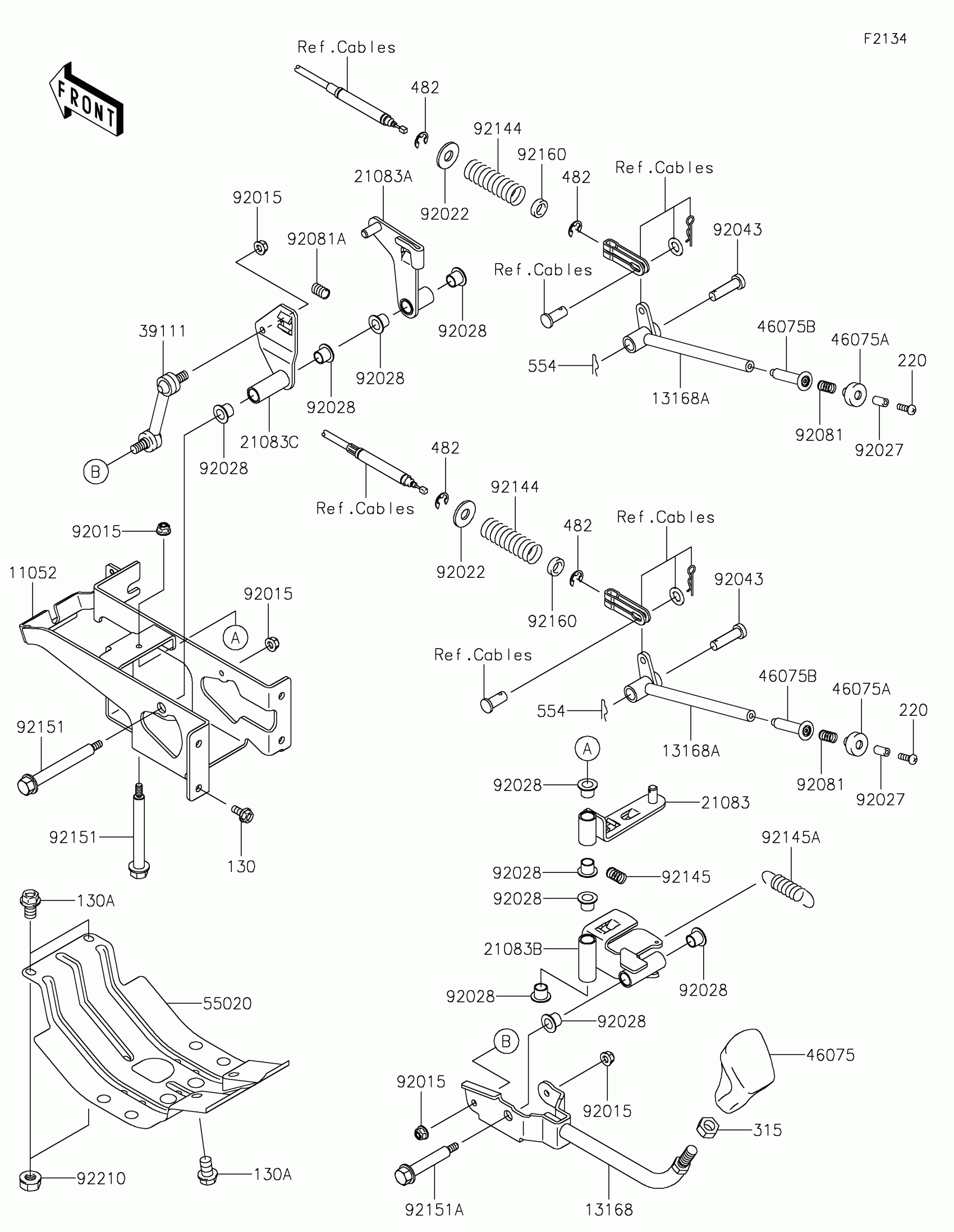

2021 Kawasaki Mule™ 4010 TRANS4x4® FE Shift Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11052

BRACKET,SHIFT CONTROL

11052-1263

1
Out of stock

13168

LEVER,SHIFT

13168-0895

1
Out of stock

13168A

LEVER,DIFF MODE CONTROL

13168-1428

1
Out of stock

21083

ARM

21083-1151

1
Out of stock

21083A

ARM

21083-1152

1
Out of stock

21083B

ARM

21083-1155

1
Out of stock

21083C

ARM

21083-1162

1
Out of stock

39111

ROD-TIE

39111-1169

1

$49.40

In stock

46075

GRIP,SHIFT LEVER

46075-0054

1

$29.21

In stock

46075A

GRIP,UPP

46075-1085

1

$7.43

In stock

46075B

GRIP,LWR

46075-1086

1

$10.26

In stock

55020

GUARD,FRONT DIFF CASE

55020-2294

1
Out of stock

92015

NUT,LOCK,FLANGED,6MM

92015-1675

1
Out of stock

92022

WASHER,10.5X26X2.3

92022-044

1
Out of stock

92027

COLLAR

92027-1987

1
Out of stock

92028

BUSHING

92028-1507

1
Out of stock

92043

PIN,FOOTRST STEP FIT

92043-1069

1
Out of stock

92081

SPRING

92081-1714

1
Out of stock

92081A

SPRING

92081-1847

1
Out of stock

92144

SPRING

92144-1510

1
Out of stock

92145

SPRING

92145-0073

1
Out of stock

92145A

SPRING

92145-1326

1
Out of stock

92151

BOLT,6MM

92151-1746

1
Out of stock

92151A

BOLT,6MM

92151-1747

1
Out of stock

92160

DAMPER

92160-3754

1
Out of stock

92210

NUT,LOCK,10MM

92210-1204

1
Out of stock

130

BOLT-FLANGED,6X14

130AB0614

1

$1.75

In stock

130A

BOLT-FLANGED,10X16

130BA1016

1

$3.78

In stock

220

SCREW-PAN-CROS,5X14

220AB0514

1
Out of stock

315

NUT-HEX-FINE

315BB1000

1
Out of stock

482

CIRCLIP-TYPE-E,8MM

482EA8000

1
Out of stock

554

PIN-SNAP,10MM

554DA1000

1
Out of stock
