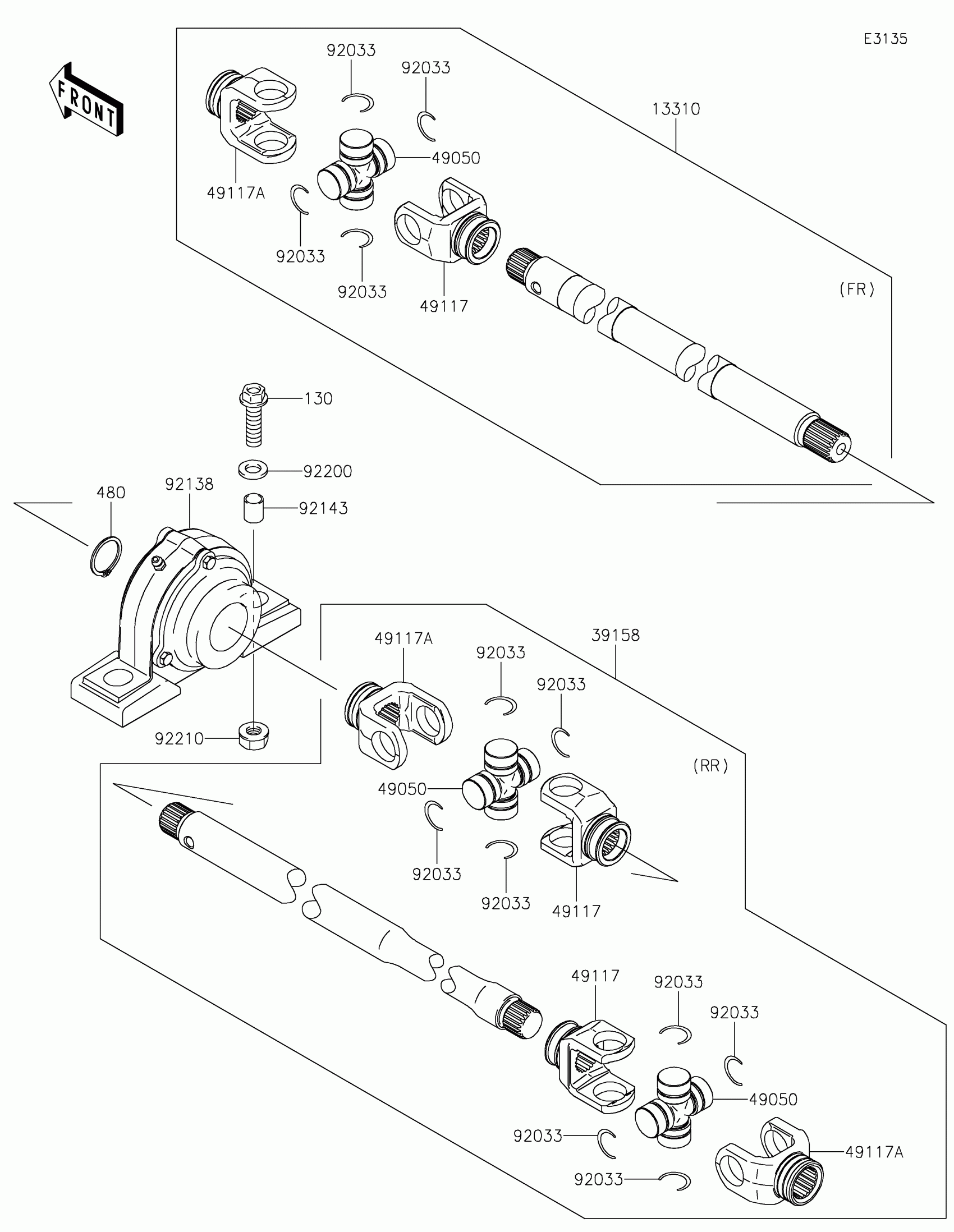

Kawasaki MULE™ 4010 TRANS4x4® FE Drive Shaft-Propeller Diagram

Description

Price

13310

SHAFT-ASSY

13310-0572

$325.98

39158

SHAFT-ASSY-DRIVE,RR PROPELLER

39158-0303

$384.01

49050

SPIDER

49050-1075

$73.15

49117

YOKE,DRIVE

49117-0598

$58.98

49117A

YOKE,DRIVE

49117-0599

$58.98

92033

RING-SNAP

92033-1030

$3.15

92138

BEARING-COMP

92138-1052

$113.23

92143

COLLAR,10.3X12.7X15

92143-1634

$7.56

92200

WASHER,10.5X19X2.3

92200-1042

$2.99

92210

NUT,LOCK,10MM

92210-1204

$3.29

130

BOLT-FLANGED,10X35

130BA1035

$2.27

480

CIRCLIP-TYPE-C,25MM

480J2500

$1.47
