2021 Kawasaki Mule™ 4010 TRANS4x4® Fe Drive Converter Diagram

← All diagrams

Find the part on the Drive Converter diagram for your 2021 Kawasaki Mule™ 4010 TRANS4x4® Fe, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

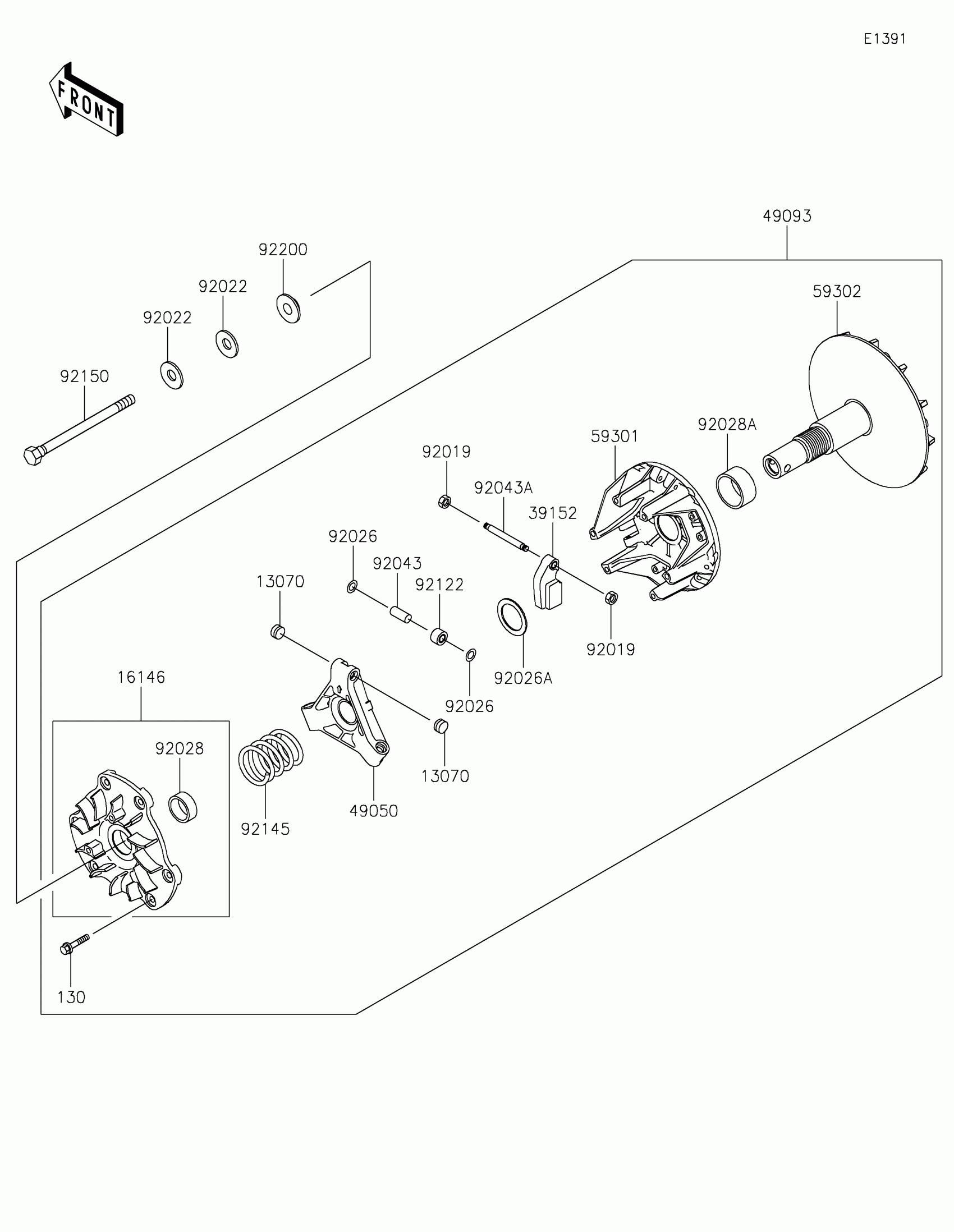

2021 Kawasaki Mule™ 4010 TRANS4x4® Fe Drive Converter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE

13070-1330

1

$24.47

In stock

16146

COVER-ASSY

16146-1219

1

$146.10

In stock

39152

WEIGHT-RAMP

39152-1078

1

$43.17

In stock

49050

SPIDER

49050-0018

1

$122.66

In stock

49093

1

$1,016.01

In stock

59301

SHEAVE-MOVABLE

59301-0016

1

$242.27

In stock

59302

SHEAVE-COMP

59302-1085

1

$314.21

In stock

92019

NUT,LOCK,6MM

92019-008

1

$3.36

In stock

92022

WASHER,SPECIAL CONICAL

92022-1901

1
Out of stock

92026

SPACER

92026-1512

1

$1.39

In stock

92026A

1

$10.69

In stock

92028

BUSHING

92028-1861

1

$5.77

In stock

92028A

BUSHING

92028-1864

1

$7.07

In stock

92043

PIN

92043-1572

1

$3.14

In stock

92043A

PIN

92043-1573

1

$10.33

In stock

92122

ROLLER

92122-1204

1

$21.66

In stock

92145

SPRING,YELLOW PAINT

92145-0639

1

$27.34

In stock

92150

BOLT,12X163.5

92150-1008

1

$24.41

In stock

92200

WASHER

92200-1401

1
Out of stock

130

BOLT-FLANGED,6X30

130CA0630

1

$2.05

In stock
