2021 Kawasaki Mule™ 4010 TRANS4x4® FE Gear BOX Diagram

← All diagrams

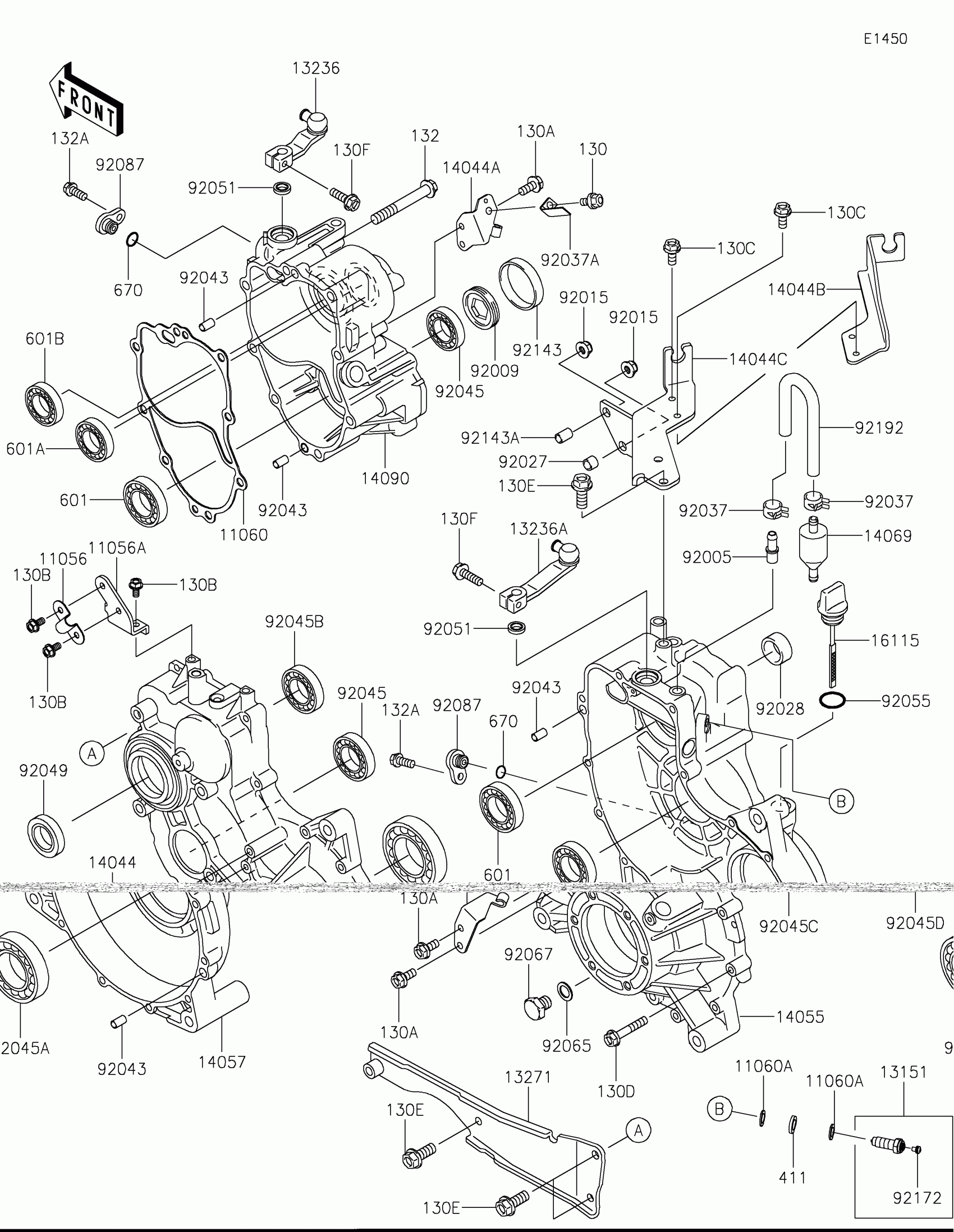

Find the part on the Gear BOX diagram for your 2021 Kawasaki Mule™ 4010 TRANS4x4® FE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2021 Kawasaki Mule™ 4010 TRANS4x4® FE Gear BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,OIL PIPE

11056-4139

1
Out of stock

11056A

BRACKET,OIL PIPE

11056-4140

1
Out of stock

11060

GASKET,GEAR CASE COVER

11060-1310

1
Out of stock

11060A

GASKET

11060-1966

1
Out of stock

13151

SWITCH-COMP

13151-1093

1
Out of stock

13236

LEVER-COMP

13236-1363

1
Out of stock

13236A

LEVER-COMP

13236-1372

1
Out of stock

13271

PLATE

13271-1604

1

$44.26

In stock

14044

HOLDER-CABLE

14044-0003

1

$13.00

In stock

14044A

HOLDER-CABLE

14044-0004

1

$14.24

In stock

14044B

HOLDER-CABLE,HI/LOW

14044-1075

1

$34.28

In stock

14044C

HOLDER-CABLE

14044-1098

1

$57.54

In stock

14055

CASE-GEAR,LH

14055-0035

1

$304.25

In stock

14057

CASE-COMP-GEAR,RH

14057-0011

1

$260.72

In stock

14069

BREATHER

14069-1051

1

$8.09

In stock

14090

1

$242.41

In stock

16115

CAP-OIL FILLER

16115-1060

1
Out of stock

92005

FITTING,BREATHER

92005-1127

1
Out of stock

92009

SCREW

92009-1290

1
Out of stock

92015

NUT,8MM

92015-1432

1
Out of stock

92027

COLLAR,8.8X12X9

92027-1568

1
Out of stock

92028

BUSHING,23X30X13

92028-132

1
Out of stock

92037

CLAMP,TUBE

92037-1505

1
Out of stock

92037A

CLAMP

92037-1680

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1
Out of stock

92045

BEARING-BALL,TMB304CCM

92045-1142

1
Out of stock

92045A

BEARING-BALL

92045-1162

1
Out of stock

92045B

BEARING-BALL,62/28

92045-1207

1
Out of stock

92045C

BEARING-BALL,6210CM

92045-1213

1
Out of stock

92045D

BEARING-BALL,TMB205JR2

92045-1285

1
Out of stock

92049

SEAL-OIL,TC28X47X7

92049-1297

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,20X3

92055-2185

1
Out of stock

92065

GASKET,10.5X16X1

92065-058

1
Out of stock

92067

PLUG,DRAIN,10X12

92067-001

1
Out of stock

92087

BUSHING-METER GEAR

92087-1058

1
Out of stock

92143

COLLAR,66X70X11

92143-1120

1
Out of stock

92143A

COLLAR,8.5X15X9

92143-1642

1
Out of stock

92172

SCREW,4X6

92172-0717

1
Out of stock

92192

TUBE

92192-1643

1
Out of stock

130

BOLT-FLANGED,6X10

130AA0610

1

$0.53

In stock

130A

BOLT-FLANGED,6X14

130AA0614

1

$0.54

In stock

130B

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130C

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130D

BOLT-FLANGED,6X35

130BA0635

1

$0.90

In stock

130E

BOLT-FLANGED,8X20

130BA0820

1

$3.27

In stock

130F

BOLT-FLANGED,6X20

130CA0620

1

$1.41

In stock

132

1

$4.46

In stock

132A

1

$2.05

In stock

411

WASHER-PLAIN,10MM

411AA1000

1
Out of stock

601

BEARING-BALL,#6007C3

601B6007

1
Out of stock

601A

BEARING-BALL,#6303C3

601B6303

1
Out of stock

601B

BEARING-BALL

601B6303U

1
Out of stock

670

O RING,10MM

670D1510

1
Out of stock
