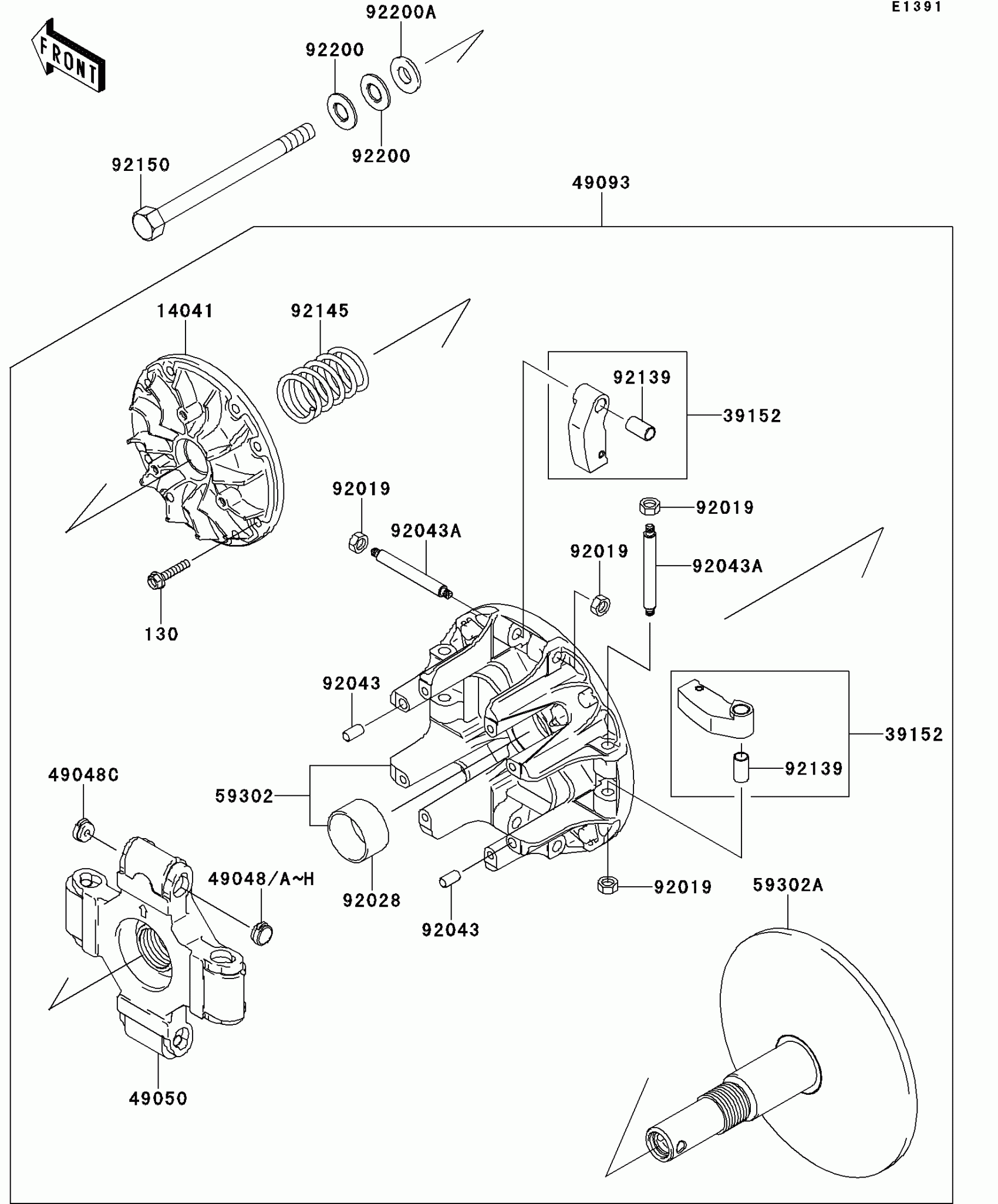

Kawasaki MULE™ 4010 DIESEL 4x4 Drive Converter Diagram

#

Description
Price

14041

COVER-COMP

14041-1168

$115.69

39152

WEIGHT-RAMP

39152-1103

$47.79

49048

SHOE,T=7.2

49048-1087

Unavailable

49048A

SHOE,T=7.3

49048-1088

Unavailable

49048B

SHOE,T=7.4

49048-1089

Unavailable

49048C

SHOE,T=7.5

49048-1090

$11.19

49048D

SHOE,T=7.6

49048-1091

Unavailable

49048E

SHOE,T=7.7

49048-1092

Unavailable

49048F

SHOE,T=7.8

49048-1093

Unavailable

49048G

SHOE,T=7.9

49048-1094

Unavailable

49048H

SHOE,T=8.0

49048-1095

Unavailable

49050

SPIDER

49050-1083

$183.59

49093

CONVERTER-ASSY-DRIVE

49093-1077

$1,019.09

59302

SHEAVE-COMP,MOVABLE

59302-1102

$315.79

59302A

SHEAVE-COMP

59302-1103

$386.05

92019

NUT,LOCK,6MM

92019-008

$3.12

92028

BUSHING

92028-1975

$9.73

92043

PIN,6.2X8X14

92043-1263

$0.46

92043A

PIN

92043-1699

$12.15

92139

BUSHING,9X11X19.75

92139-1103

$5.75

92145

SPRING,DRIVE

92145-0038

$32.84

92150

BOLT,12X163.5

92150-1008

$22.27

92200

WASHER,SPRING

92200-1504

$3.19

92200A

WASHER

92200-1634

$6.91

130

BOLT-FLANGED,6X30

130CA0630

$1.77
