Description

Price

11021

CASE-ASSY

11021-0016

$480.20

11060

GASKET,GEAR CASE

11060-1311

$7.12

13048

CAM-DAMPER

13048-1089

$51.47

13091

HOLDER,GEAR CASE

13091-1620

$42.05

13091A

HOLDER,CAM DAMPER

13091-1810

$47.36

13107

SHAFT,BEVEL GEAR

13107-1523

$214.55

14091

COVER

14091-0939

$29.40

14091A

COVER

14091-1672

$15.34

21176

SENSOR,SPEED

21176-1104

$105.94

41046

HOUSING-BEARING

41046-1083

$134.70

49022

GEAR-BEVEL,18T

49022-1204

$218.99

49022A

GEAR-BEVEL,15T

49022-1205

$218.99

92015

NUT,8MM

92015-1402

$3.57

92015A

NUT,16MM

92015-1581

$14.81

92015B

NUT,30MM

92015-1858

$33.58

92015C

NUT,12MM

92015-1920

$5.55

92022

WASHER,12X24X2.3

92022-1890

$4.42

92025

SHIM,20.3X28X1.3

92025-1533

Unavailable

92025A

SHIM,20.3X28X0.7

92025-1534

Unavailable

92025B

SHIM,20.3X28X0.15

92025-1573

Unavailable

92025C

SHIM,20.3X28X0.20

92025-1574

Unavailable

92025D

SHIM,20.3X28X1.1

92025-1575

Unavailable

92025E

SHIM,T=1.00

92025-1858

Unavailable

92025F

SHIM,T=0.10

92025-1859

Unavailable

92025G

SHIM,T=0.15

92025-1860

Unavailable

92025H

SHIM,T=0.50

92025-1861

Unavailable

92025I

SHIM,T=0.80

92025-1862

Unavailable

92025J

SHIM,T=1.20

92025-1863

Unavailable

92043

PIN,DOWEL,10X14

92043-1037

$0.66

92045

BEARING-BALL,6205CM

92045-1200

Unavailable

92045A

BEARING-BALL,6006CM

92045-1201

$23.68

92049

SEAL-OIL

92049-1288

$6.85

92055

RING-O,66.5MM

92055-1287

$4.93

92055A

RING-O,63.6X2.4

92055-1294

$7.25

92055B

RING-O

92055-1718

$2.00

92143

COLLAR

92143-1600

$16.15

92145

SPRING

92145-1542

$13.73

92172

SCREW,SET,58X10

92172-0316

$23.93

92180

SHIM,20.3X28X0.8

92180-0288

Unavailable

92180A

SHIM,20.3X28X0.9

92180-0289

Unavailable

92180B

SHIM,20.3X28X1.0

92180-0290

Unavailable

92180C

SHIM,20.3X28X1.2

92180-0291

Unavailable

132

BOLT-FLANGED-SMALL,8X70

132BA0870

$5.44

132A

BOLT-FLANGED-SMALL,6X20

132BD0620

$3.14

172

BOLT-STUD,8X30

172BA0830

$1.82

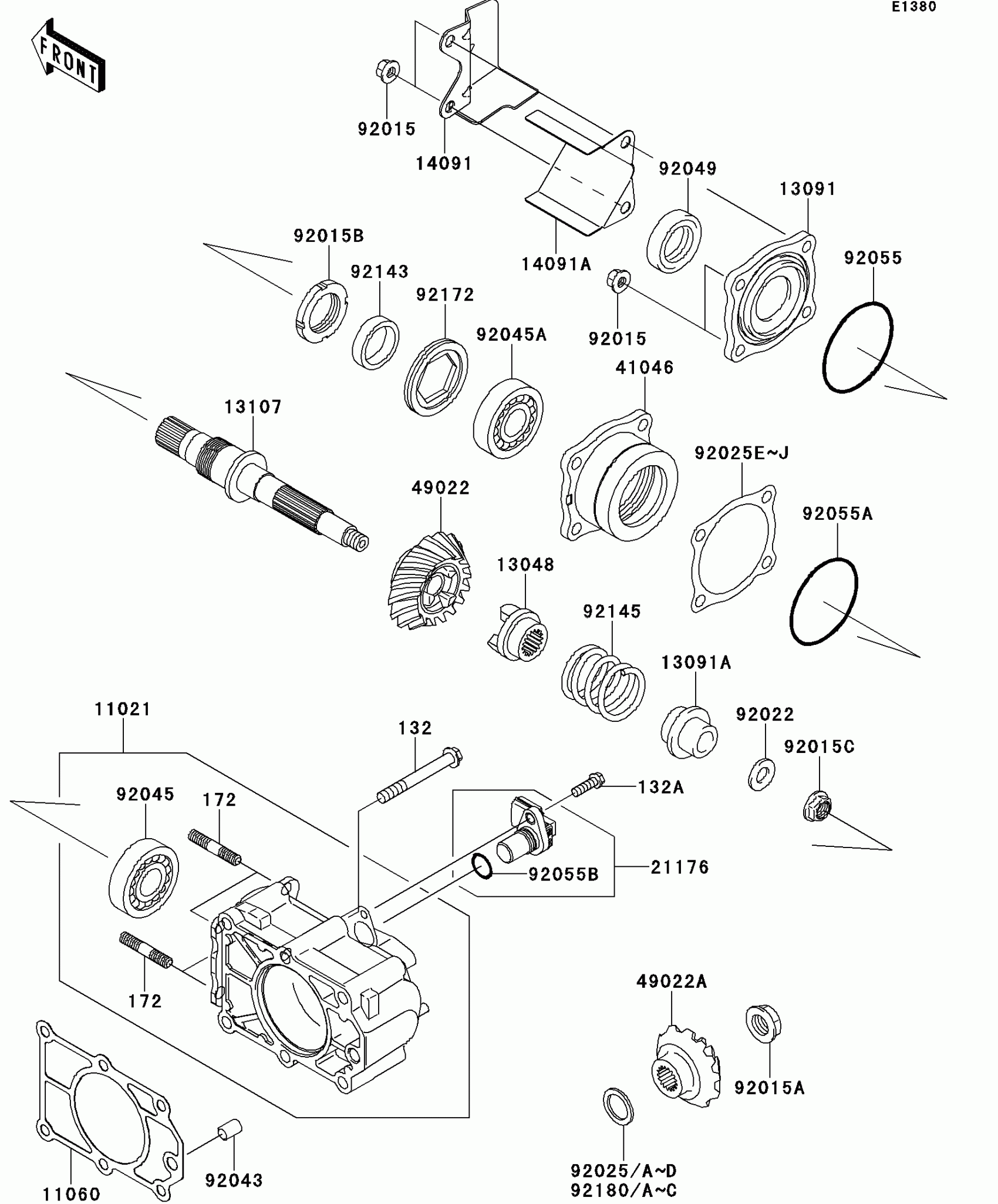

Kawasaki MULE™ 4010 DIESEL 4x4 Bevel Gear Case Diagram

CASE-ASSY

GASKET,GEAR CASE

CAM-DAMPER

HOLDER,GEAR CASE

HOLDER,CAM DAMPER

SHAFT,BEVEL GEAR

COVER

COVER

SENSOR,SPEED

HOUSING-BEARING

GEAR-BEVEL,18T

GEAR-BEVEL,15T

NUT,8MM

NUT,16MM

NUT,30MM

NUT,12MM

WASHER,12X24X2.3

SHIM,20.3X28X1.3

SHIM,20.3X28X0.7

SHIM,20.3X28X0.15

SHIM,20.3X28X0.20

SHIM,20.3X28X1.1

SHIM,T=1.00

SHIM,T=0.10

SHIM,T=0.15

SHIM,T=0.50

SHIM,T=0.80

SHIM,T=1.20

PIN,DOWEL,10X14

BEARING-BALL,6205CM

BEARING-BALL,6006CM

SEAL-OIL

RING-O,66.5MM

RING-O,63.6X2.4

RING-O

COLLAR

SPRING

SCREW,SET,58X10

SHIM,20.3X28X0.8

SHIM,20.3X28X0.9

SHIM,20.3X28X1.0

SHIM,20.3X28X1.2

BOLT-FLANGED-SMALL,8X70

BOLT-FLANGED-SMALL,6X20

BOLT-STUD,8X30
