2013 Kawasaki Mule™ 4010 Diesel 4x4 Differential Diagram

← All diagrams

Find the part on the Differential diagram for your 2013 Kawasaki Mule™ 4010 Diesel 4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

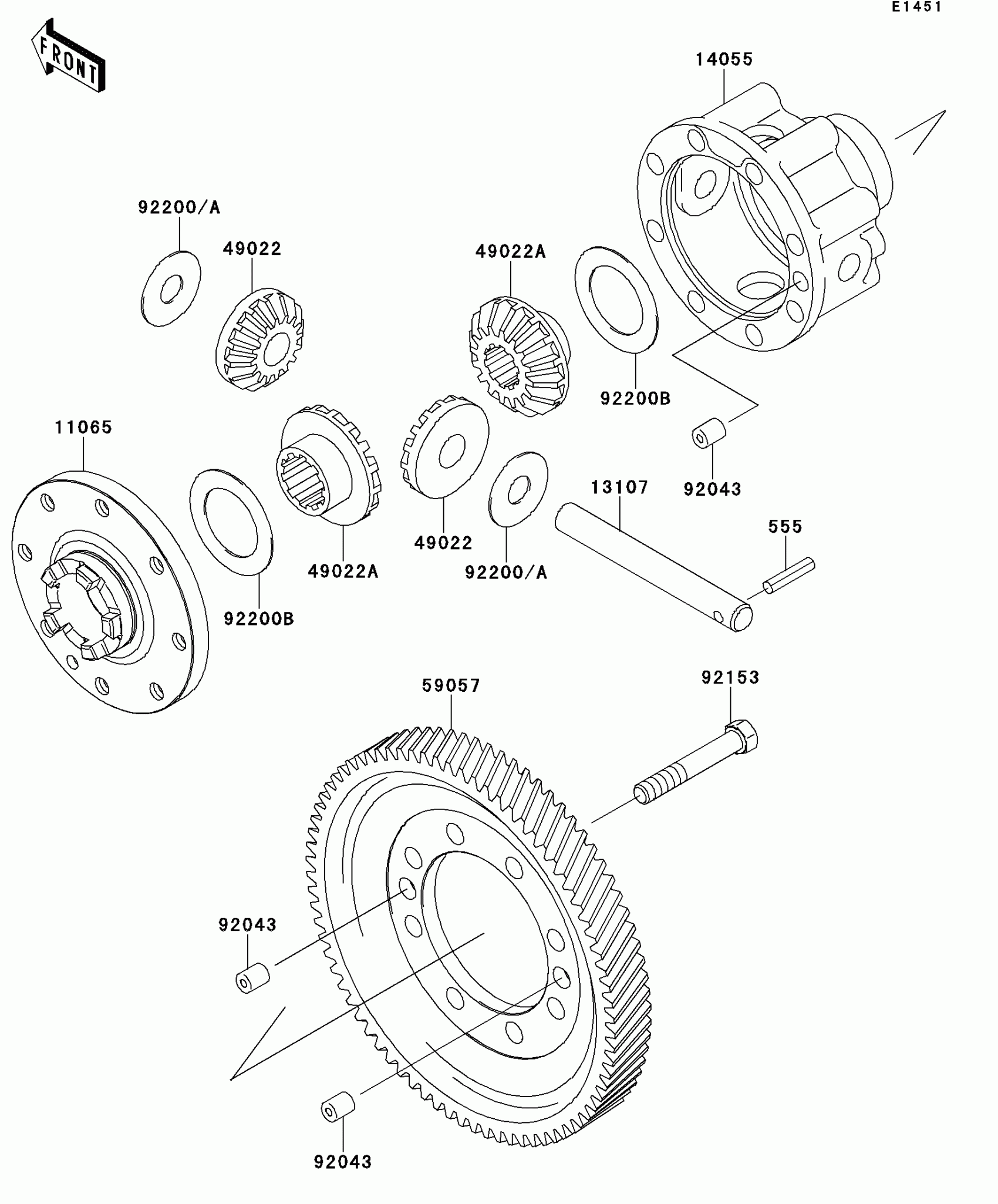

2013 Kawasaki Mule™ 4010 Diesel 4x4 Differential Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11065

CAP,GEAR CASE

11065-0033

1
Out of stock

13107

SHAFT

13107-0009

1
Out of stock

14055

1

$725.87

In stock

49022

GEAR-BEVEL,10T

49022-1105

1
Out of stock

49022A

GEAR-BEVEL,16T

49022-1117

1
Out of stock

59057

GEAR-HELICAL,DIFFERENTIAL

59057-0002

1
Out of stock

92043

PIN,10X12

92043-0029

1
Out of stock

92153

BOLT,10X63

92153-0331

1
Out of stock

92200

WASHER,14.5X38X1.2

92200-0021

1
Out of stock

92200A

WASHER,14.5X38X1.0

92200-1044

—
Out of stock

92200B

WASHER,35.5X54X1.0

92200-1045

1
Out of stock

555

PIN-SPRING

555A0525

1
Out of stock
