2020 Kawasaki Mule 4000 Trans™ Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2020 Kawasaki Mule 4000 Trans™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

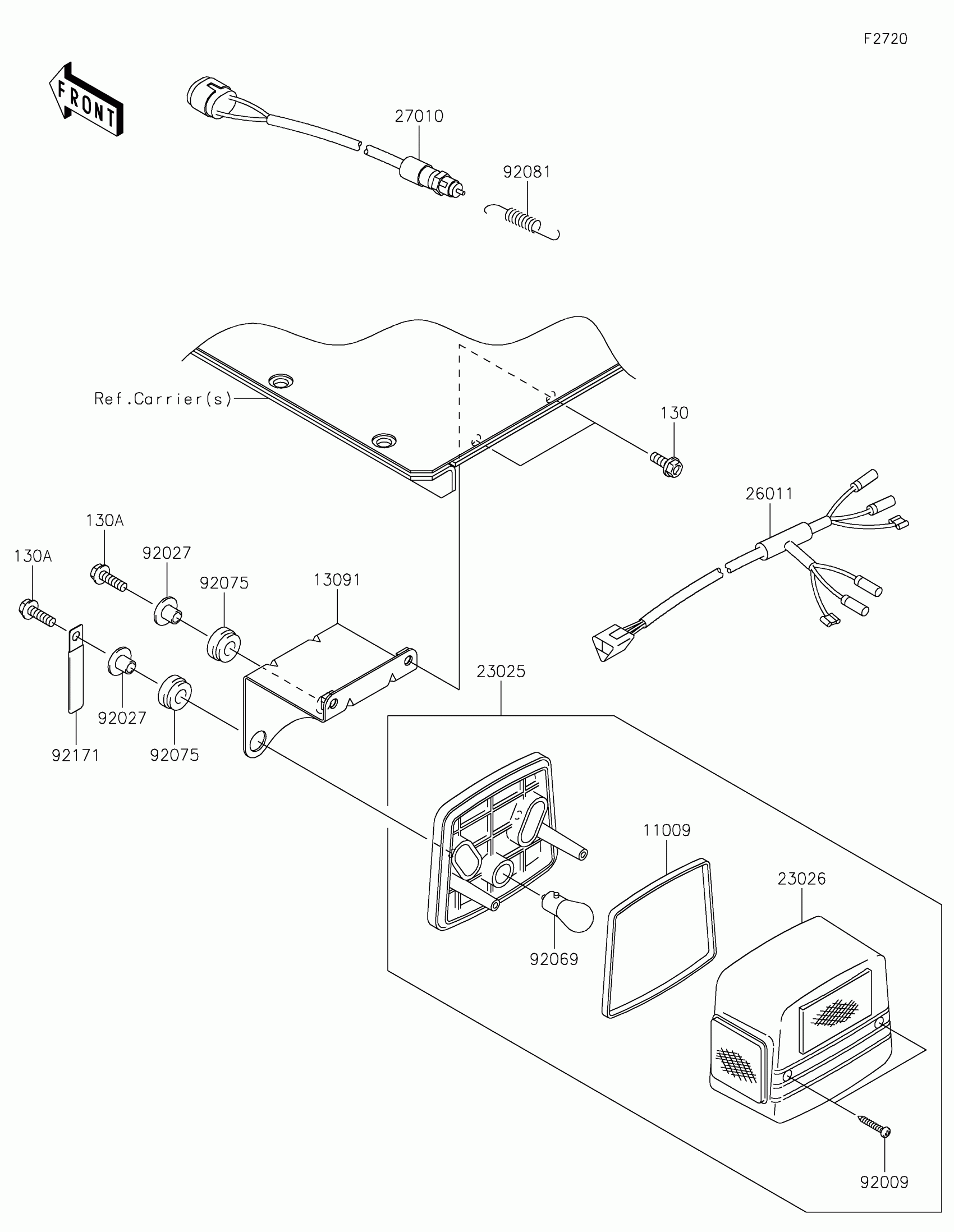

2020 Kawasaki Mule 4000 Trans™ Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,TAIL LAMP

11009-1215

1

$6.98

In stock

13091

HOLDER,TAIL LAMP

13091-1743

1

$11.29

In stock

23025

LAMP-TAIL

23025-1042

1

$114.34

In stock

23026

LENS,TAIL LAMP

23026-1019

1

$47.04

In stock

26011

WIRE-LEAD

26011-1756

1

$69.57

In stock

27010

SWITCH,BRAKE LAMP

27010-1301

1

$42.42

In stock

92009

SCREW,TAPPING,4X25

92009-1069

1
Out of stock

92027

COLLAR

92027-194

1

$4.37

In stock

92069

BULB,12V 21/5W

92069-1011

1

$6.02

In stock

92075

DAMPER

92075-277

1

$2.20

In stock

92081

SPRING,HOOK RETURN

92081-1466

1

$6.75

In stock

92171

CLAMP,L=60

92171-0652

1

$2.15

In stock

130

BOLT-FLANGED,6X16

130BA0616

1

$1.12

In stock

130A

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock
