2020 Kawasaki Mule 4000 Trans™ Ignition Switch Diagram

← All diagrams

Find the part on the Ignition Switch diagram for your 2020 Kawasaki Mule 4000 Trans™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

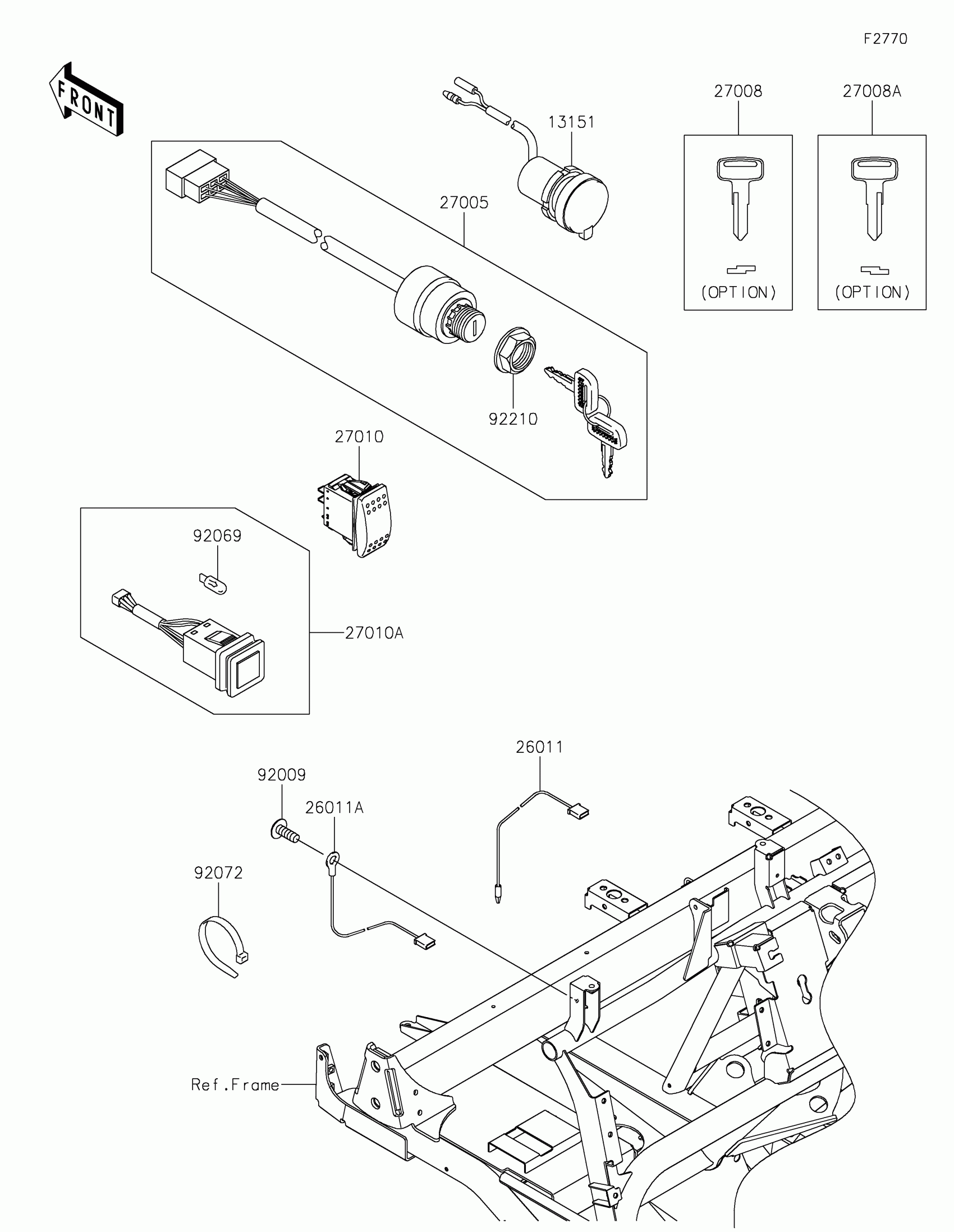

2020 Kawasaki Mule 4000 Trans™ Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13151

1

$145.52

In stock

26011

WIRE-LEAD,360MM

26011-0796

1

$3.44

In stock

26011A

WIRE-LEAD,320MM

26011-0797

1

$3.41

In stock

27005

1

$86.25

In stock

27008

KEY-LOCK,BLANK

27008-1153

1

$14.13

In stock

27008A

KEY-LOCK,BLANK

27008-1157

1

$14.13

In stock

27010

SWITCH,HORN

27010-0734

1

$25.92

In stock

27010A

SWITCH,HEAD LAMP

27010-0814

1

$60.58

In stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92069

BULB,12V 1.7W

92069-0083

1

$2.92

In stock

92072

BAND,L=188

92072-1239

1

$1.51

In stock

92210

NUT,IGNITION SWITCH

92210-1264

1
Out of stock
