2020 Kawasaki Mule 4000 Trans™ Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2020 Kawasaki Mule 4000 Trans™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

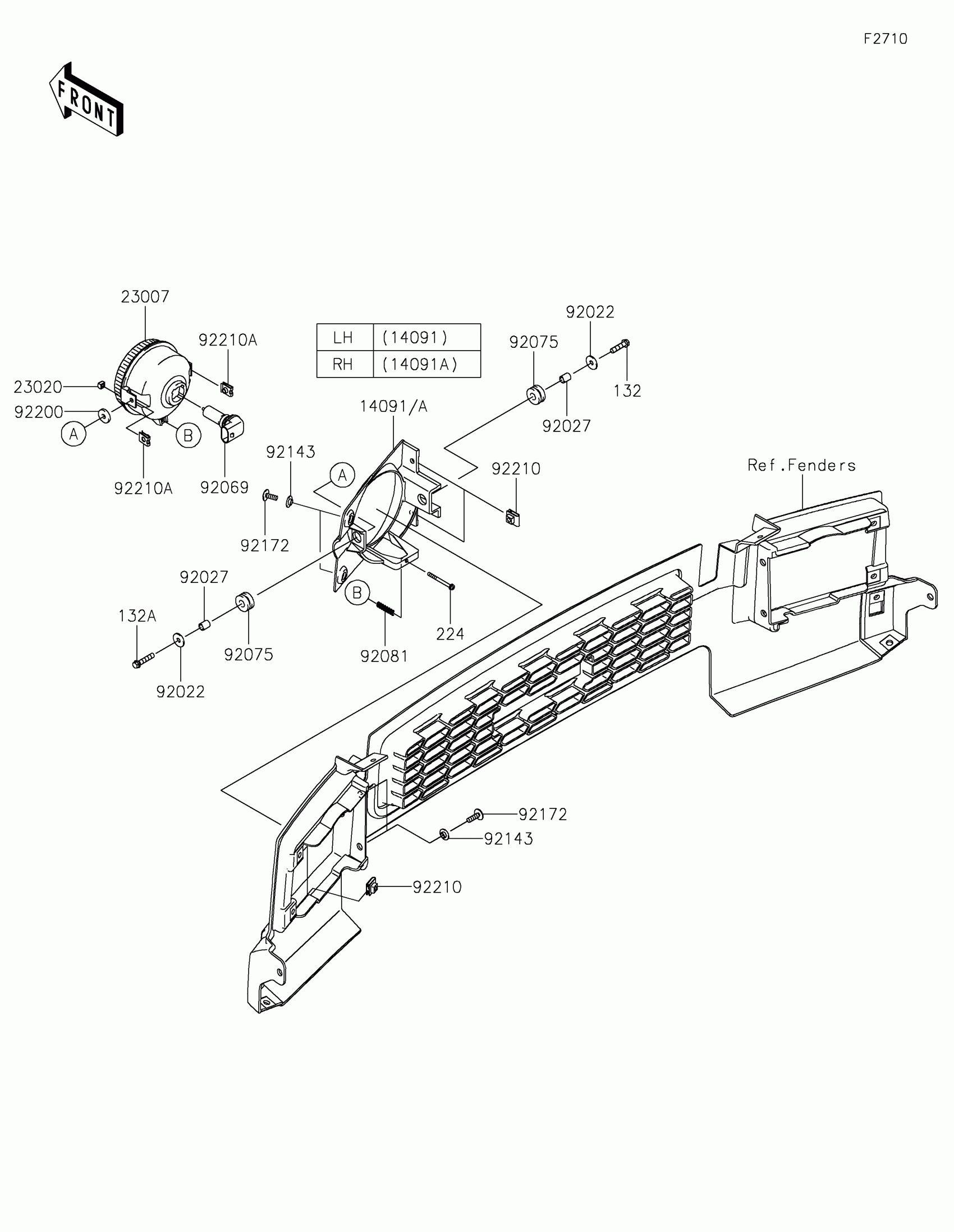

2020 Kawasaki Mule 4000 Trans™ Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

COVER,HEAD LAMP,LH

14091-0827

1

$14.15

In stock

14091A

COVER,HEAD LAMP,RH

14091-0828

1

$14.15

In stock

23007

LENS-COMP,HEAD LAMP

23007-0096

1

$45.84

In stock

23020

1

$3.69

In stock

92022

WASHER,6.5X20X1.6

92022-125

1

$1.25

In stock

92027

COLLAR,6.8X10X12

92027-162

1

$5.21

In stock

92069

BULB,12V 35/35W

92069-0019

1

$12.44

In stock

92075

DAMPER,10X24X12

92075-1690

1

$3.97

In stock

92081

SPRING,FOCUS ADJUST

92081-1896

1

$4.16

In stock

92143

COLLAR

92143-1087

1

$3.11

In stock

92172

SCREW,TAPPING,6X20

92172-0488

1

$2.44

In stock

92200

WASHER,6.5X20X3.2

92200-0359

1
Out of stock

92210

NUT,LEAF SPRING,6MM

92210-0624

1
Out of stock

92210A

NUT

92210-1125

1
Out of stock

132

1

$2.29

In stock

132A

1

$2.17

In stock

224

1

$1.54

In stock
