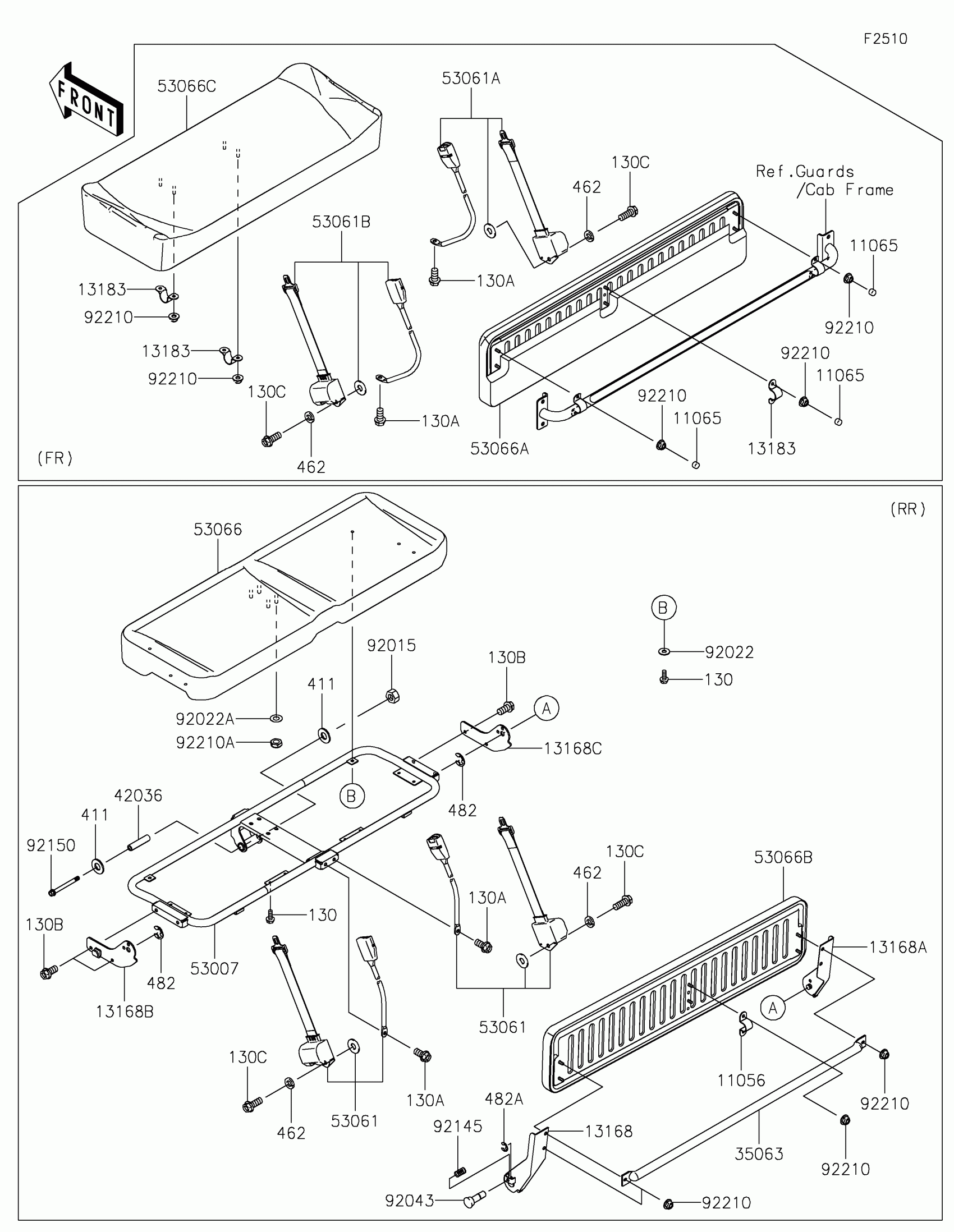

Kawasaki MULE 4000 TRANS™ Seat Diagram

#

Description
Price

11056

BRACKET,SEAT BACK

11056-0034

$7.71

11065

CAP

11065-7504

$1.14

13168

LEVER,SEAT,TOP,LH

13168-7502

$59.56

13168A

LEVER,SEAT,TOP,RH

13168-7503

$59.56

13168B

LEVER,SEAT,LWR,LH

13168-7504

$48.68

13168C

LEVER,SEAT,LWR,RH

13168-7505

$48.68

13183

PLATE,SEAT

13183-1400

$5.74

35063

STAY,REAR BACK

35063-7510

$150.47

42036

SLEEVE,12.1X20X85

42036-7501

$9.75

53007

FRAME-SEAT

53007-0327

$160.24

53061

BELT-SEAT,RR

53061-0314

$104.62

53061A

BELT-SEAT,FR,RH

53061-0315

$104.62

53061B

BELT-SEAT,FR,LH

53061-0316

$104.62

53066

SEAT-ASSY,RR,LWR,BLACK

53066-0237-MA

$546.98

53066A

SEAT-ASSY,FR,BACK,BLACK

53066-0258-MA

$245.54

53066B

SEAT-ASSY,RR,BACK,BLACK

53066-0259-MA

Unavailable

53066C

SEAT-ASSY,FR,LWR,BLACK

53066-0274-MA

Unavailable

92015

NUT,LOCK,12MM,BLACK

92015-1190

$7.25

92022

WASHER,7X18X1.2

92022-1545

$0.84

92022A

WASHER,10.5X20X1

92022-239

$2.99

92043

PIN

92043-7503

$3.73

92145

SPRING

92145-7507

$1.32

92150

BOLT,FLANGED,12X117

92150-1895

$12.17

92210

NUT,FLANGED,LOCK,8MM

92210-0005

$3.55

92210A

NUT,LOCK,10MM

92210-0278

$1.57

130

BOLT-FLANGED,6X16

130BA0616

$0.97

130A

BOLT-FLANGED,12X20

130BA1220

$2.84

130B

BOLT-FLANGED,10X20

130BB1020

$4.50

130C

BOLT-FLANGED,12X25

130BB1225

$3.85

411

WASHER-PLAIN

411AB1200

$3.53

462

WASHER-SPRING,12MM

462DB1200

$0.95

482

CIRCLIP-TYPE-E,12MM

482EA0200

$1.83

482A

CIRCLIP-TYPE-E,8MM

482EA8000

$0.63
