2020 Kawasaki Mule 4000 Trans™ Flap Diagram

← All diagrams

Find the part on the Flap diagram for your 2020 Kawasaki Mule 4000 Trans™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

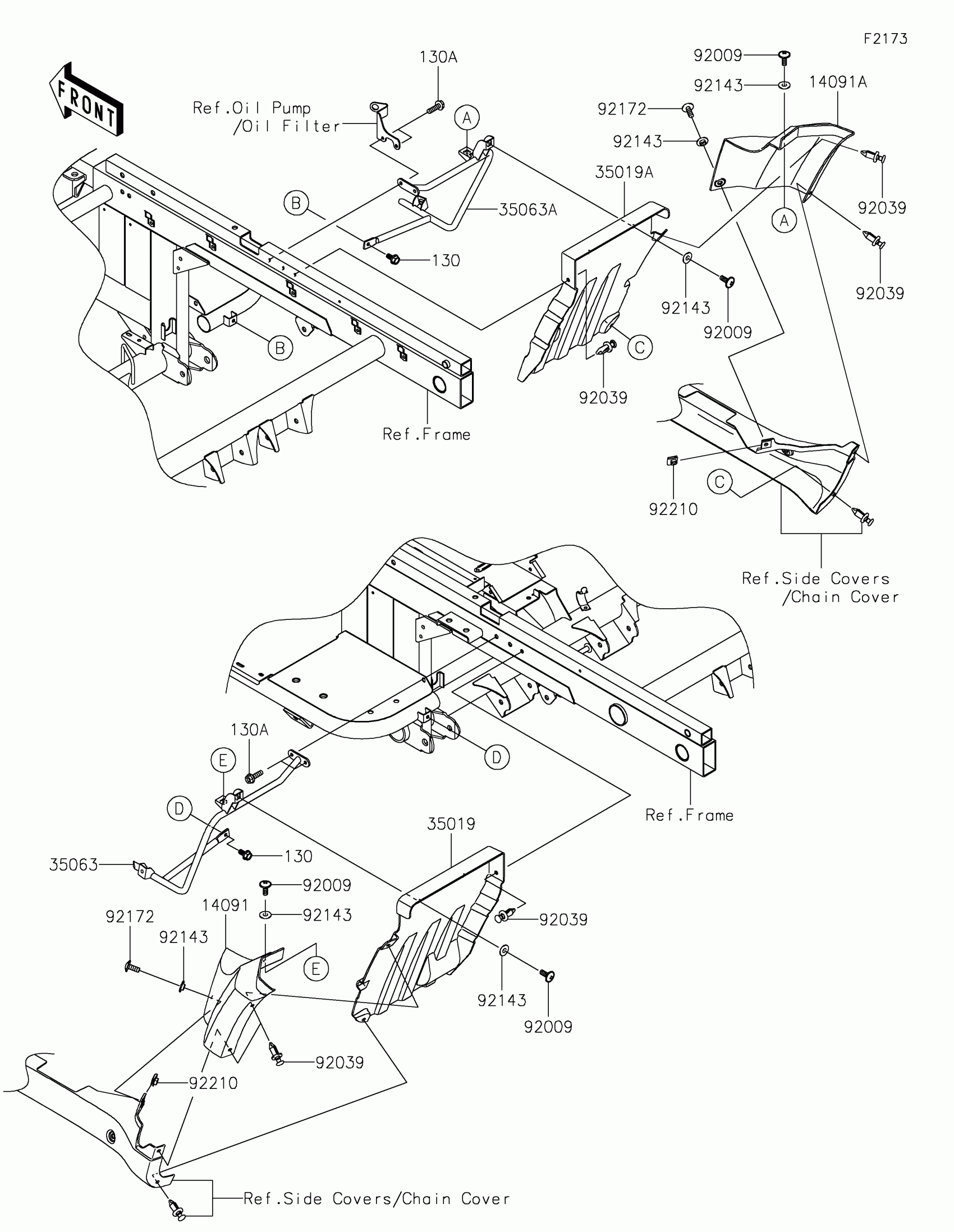

2020 Kawasaki Mule 4000 Trans™ Flap Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

1

$21.20

In stock

14091A

1

$21.20

In stock

35019

FLAP,RR,LH

35019-0066

1

$91.34

In stock

35019A

FLAP,RR,RH

35019-0067

1

$91.34

In stock

35063

STAY,RR,LH

35063-0451

1

$49.35

In stock

35063A

STAY,RR,RH

35063-0452

1

$49.35

In stock

92009

SCREW,6X16

92009-1621

1
Out of stock

92039

RIVET

92039-0776

1

$0.80

In stock

92143

COLLAR

92143-1087

1

$3.11

In stock

92172

SCREW,TAPPING,6X20

92172-0488

1

$2.44

In stock

92210

NUT,LEAF SPRING,6MM

92210-0624

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1

$1.12

In stock

130A

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock
