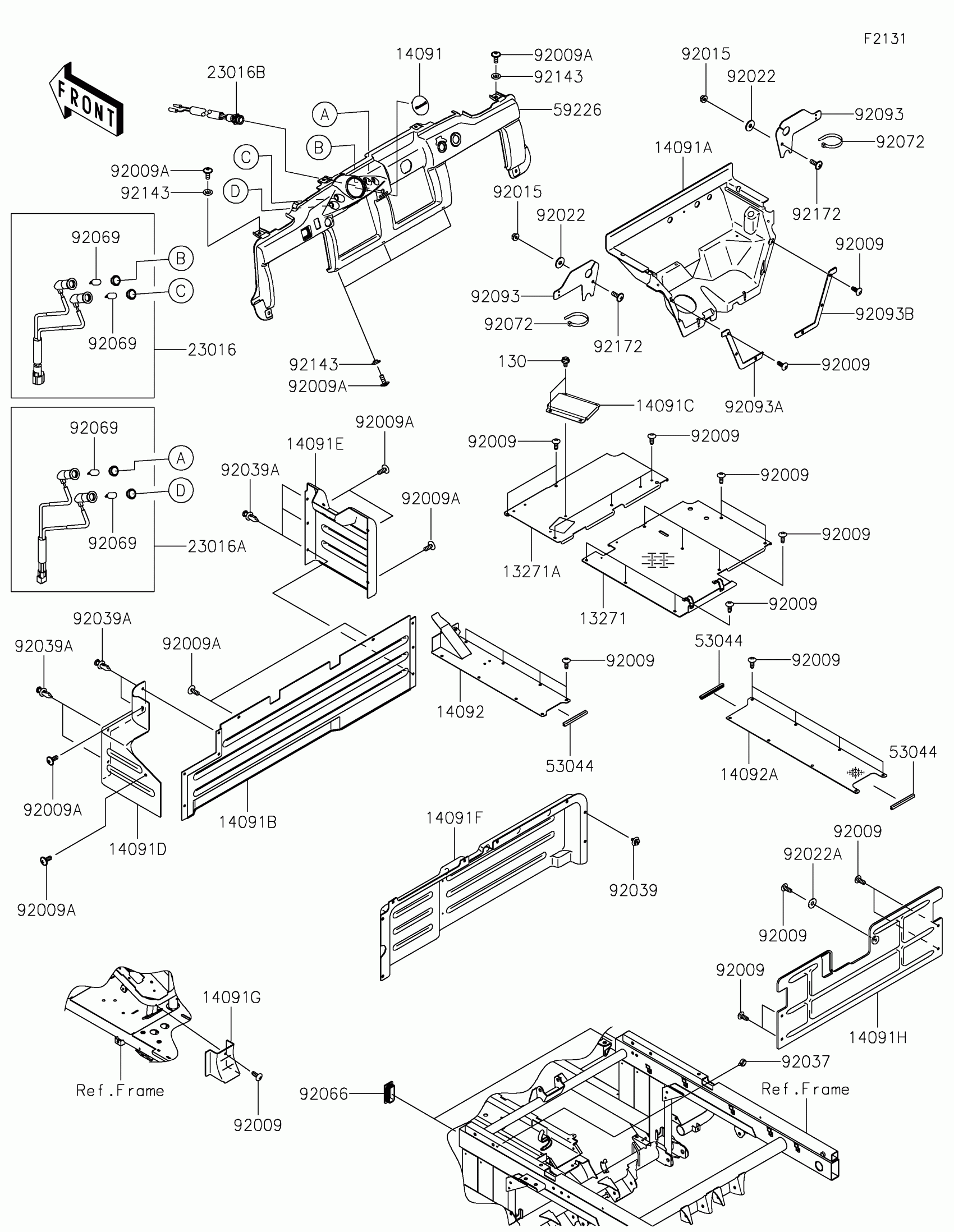

Kawasaki MULE 4000 TRANS™ Frame Fittings Diagram

#

Description
Price

13271

PLATE,FLOOR,RH

13271-7602

$147.62

13271A

PLATE,FLOOR,RH

13271-7606

$83.23

14091

COVER,SPEEDOMETER,F.BLACK

14091-0929-6Z

$6.56

14091A

COVER,FLOOR

14091-1378

$100.23

14091B

COVER,FRONT SEAT,CNT

14091-7531

$115.56

14091C

COVER

14091-7536

$18.98

14091D

COVER,FRONT SEAT,LH

14091-7541

$30.75

14091E

COVER,FRONT SEAT,RH

14091-7542

$50.39

14091F

COVER,FRONT SEAT,RR,LWR

14091-7549

$143.47

14091G

COVER,PARKING CABLE

14091-7551

$12.78

14091H

COVER,REAR SEAT,LWR

14091-7557

$100.32

14092

COVER,FLOOR,CNT,FR

14092-0832

$83.27

14092A

COVER,FLOOR,CNT,RR

14092-0993

$82.22

23016

LAMP-ASSY,PARKING&WATER TEMP

23016-0035

$89.50

23016A

LAMP-ASSY,DFI&OIL PRESSURE

23016-0036

$89.50

23016B

LAMP-ASSY,LED

23016-0050

$13.54

53044

TRIM,L=111

53044-7502

$5.86

59226

PANEL-CONTROL,F.BLACK

59226-0026-6Z

$117.26

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,FLANGED,6MM

92015-1367

$2.53

92022

WASHER,6.5X20X1.6,BLACK

92022-1346

$0.48

92022A

WASHER,7X18X1.2

92022-1545

$0.84

92037

CLAMP,HOSE

92037-1827

$5.69

92039

RIVET

92039-0768

$1.95

92039A

RIVET

92039-0776

$0.80

92066

PLUG

92066-7505

$3.44

92069

BULB,12V 1.7W,T10

92069-1059

$3.78

92072

BAND,L=368.3

92072-3872

$1.20

92093

SEAL,LOWER COVER

92093-0181

$22.39

92093A

SEAL,FRONT FENDER,LH

92093-1293

$9.34

92093B

SEAL,FRONT FENDER,RH

92093-1294

$9.68

92143

COLLAR

92143-1087

$2.98

92172

SCREW,6X18

92172-0002

$1.98

130

BOLT-FLANGED,6X10

130BA0610

$0.97
