2020 Kawasaki Mule 4000 Trans™ Front BOX Diagram

← All diagrams

Find the part on the Front BOX diagram for your 2020 Kawasaki Mule 4000 Trans™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

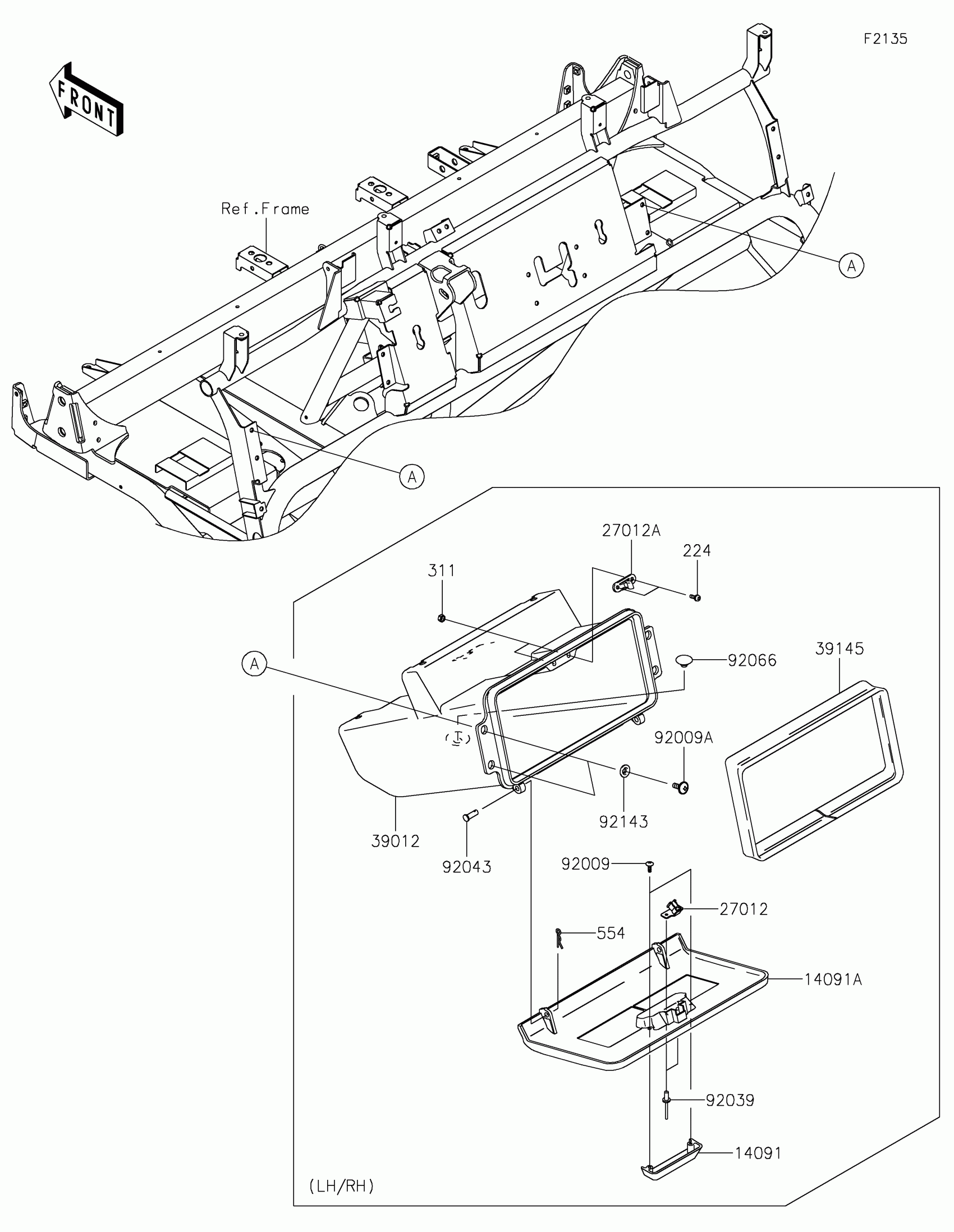

2020 Kawasaki Mule 4000 Trans™ Front BOX Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14091

1

$6.22

In stock

14091A

1

$24.97

In stock

27012

HOOK

27012-1607

1

$6.16

In stock

27012A

HOOK

27012-1612

1

$3.12

In stock

39012

CASE-STORAGE,F.BLACK

39012-1061-6Z

1

$43.13

In stock

39145

TRIM-SEAL,L=774

39145-1130

1

$21.31

In stock

92009

SCREW,TAPPING,4X12

92009-1444

1
Out of stock

92009A

SCREW,6X16

92009-1621

1
Out of stock

92039

RIVET

92039-1041

1

$2.92

In stock

92043

PIN,6X14.5

92043-125

1

$5.21

In stock

92066

PLUG

92066-1485

1

$2.02

In stock

92143

COLLAR

92143-1087

1

$3.11

In stock

224

1

$0.50

In stock

311

NUT-HEX,4MM

311AA0400

1

$0.58

In stock

554

PIN-SNAP,1.2X21.2

554DA0600

1

$0.92

In stock
