2020 Kawasaki Mule 4000 Trans™ Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2020 Kawasaki Mule 4000 Trans™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

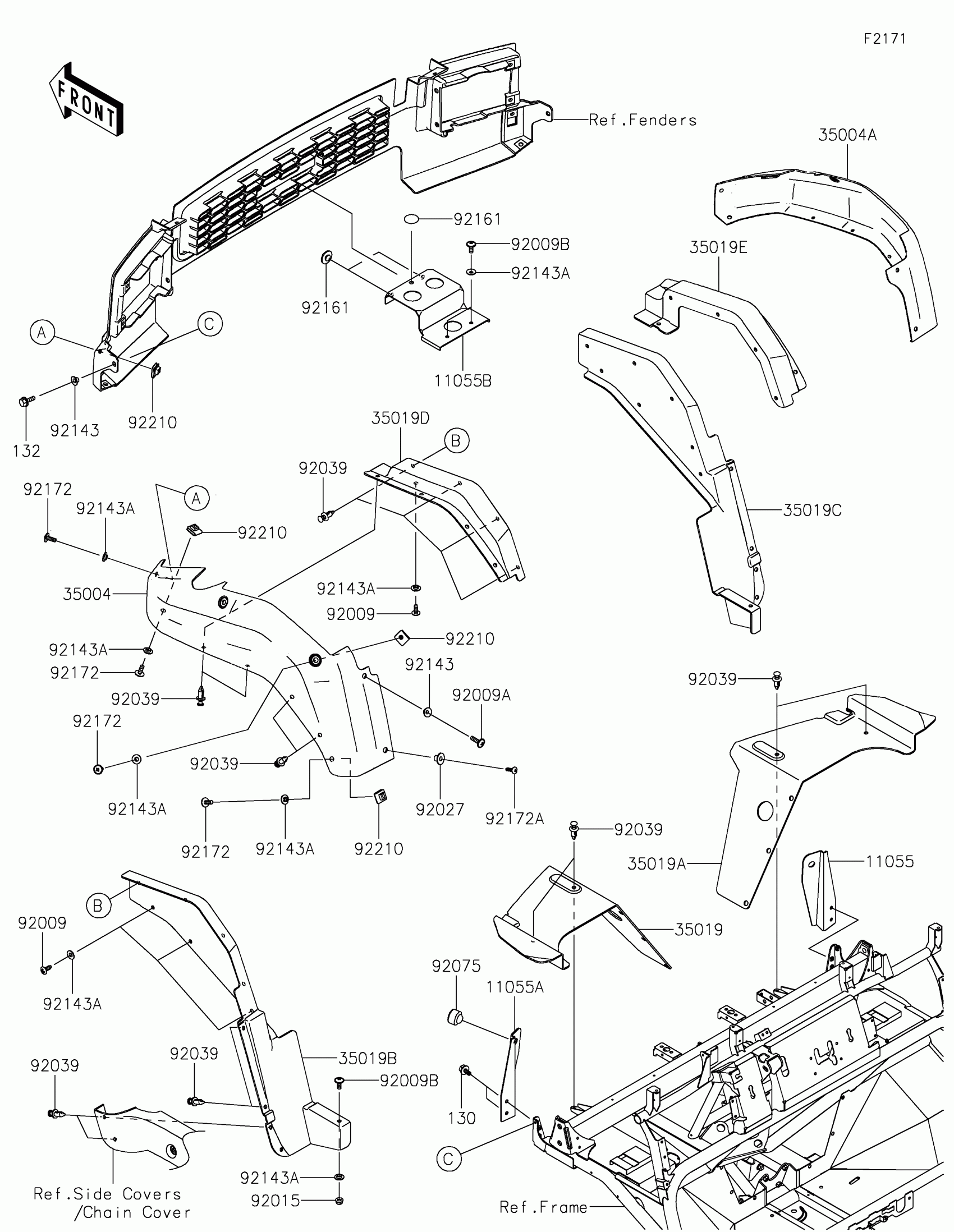

2020 Kawasaki Mule 4000 Trans™ Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET

11055-0917

1
Out of stock

11055A

BRACKET

11055-0918

1
Out of stock

11055B

BRACKET

11055-0954

1
Out of stock

35004

FENDER-FRONT,SIDE,LH,F.BLACK

35004-0123-6Z

1
Out of stock

35004A

FENDER-FRONT,SIDE,RH,F.BLACK

35004-0124-6Z

1
Out of stock

35019

FLAP,FR,LH

35019-0062

1
Out of stock

35019A

FLAP,FR,RH

35019-0063

1
Out of stock

35019B

FLAP,SIDE,RR,LH

35019-0064

1
Out of stock

35019C

FLAP,SIDE,RR,RH

35019-0065

1
Out of stock

35019D

FLAP,SIDE,MIDDLE,LH

35019-0068

1
Out of stock

35019E

FLAP,SIDE,MIDDLE,RH

35019-0069

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92009A

SCREW,6X22,BLACK

92009-1256

1
Out of stock

92009B

SCREW,6X16

92009-1621

1
Out of stock

92015

NUT,LOCK,FLANGED,6MM

92015-1675

1
Out of stock

92027

COLLAR

92027-1767

1
Out of stock

92039

RIVET

92039-0776

1
Out of stock

92075

DAMPER

92075-015

1
Out of stock

92143

COLLAR

92143-1057

1
Out of stock

92143A

COLLAR

92143-1087

1
Out of stock

92161

DAMPER,RUBBER

92161-1200

1
Out of stock

92172

SCREW,TAPPING,6X20

92172-0488

1
Out of stock

92172A

SCREW

92172-1072

1
Out of stock

92210

NUT,LEAF SPRING,6MM

92210-0624

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1
Out of stock

132

BOLT-FLANGED-SMALL,6X20

132BA0620

1
Out of stock
