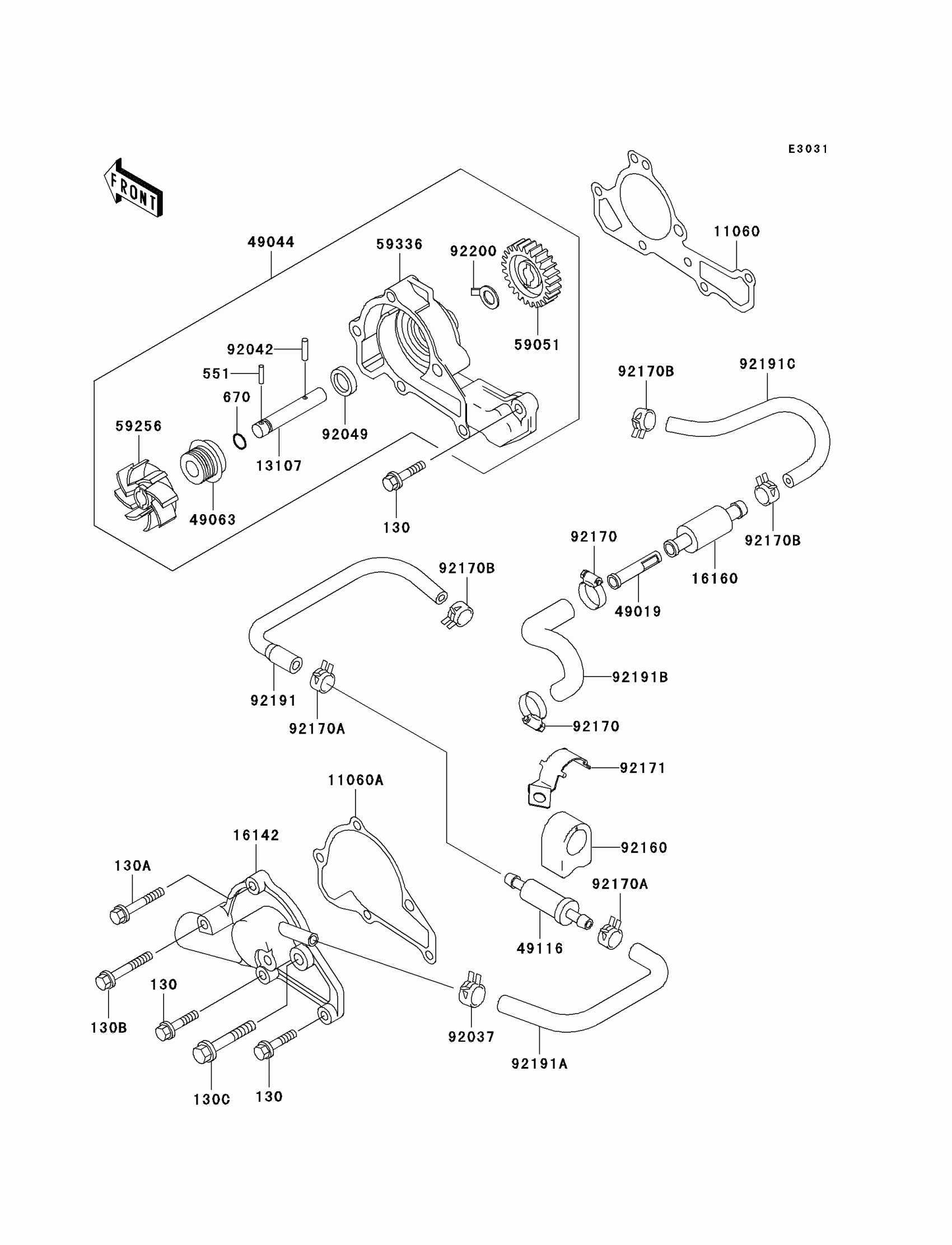

Find the part on the Water Pump diagram for your 2007 Kawasaki Mule 3020 Turf, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 3020 Turf Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130T0645

1
Out of stock

130A

BOLT-FLANGED

130T0665

1
Out of stock

130B

BOLT-FLANGED

130T0675

1
Out of stock

130C

BOLT-FLANGED

130T0870

1
Out of stock

551

PIN,DOWEL,3X14

551A0314

1
Out of stock

670

O RING,7MM

670B1507

1
Out of stock

11060

GASKET,PUMP CASE

11060-2450

1
Out of stock

11060A

GASKET,PUMP COVER

11060-2451

1
Out of stock

13107

SHAFT,IMPELLER

13107-2097

1
Out of stock

16142

COVER-PUMP

16142-2069

1
Out of stock

16160

BODY

16160-1359

1
Out of stock

49019

FILTER-WATER

49019-1068

1
Out of stock

49044

PUMP-WATER

49044-2058

1
Out of stock

49063

SEAL-MECHANICAL

49063-1056

1
Out of stock

49116

VALVE-ASSY

49116-1081

1
Out of stock

59051

GEAR-SPUR

59051-2113

1
Out of stock

59256

IMPELLER

59256-2057

1
Out of stock

59336

CASE-PUMP

59336-2052

1
Out of stock

92037

CLAMP,HOSE CLIP

92037-2065

1
Out of stock

92042

PIN,DOWEL,4X15.8

92042-014

1
Out of stock

92049

SEAL-OIL

92049-2111

1
Out of stock

92160

DAMPER,VALVE

92160-1451

1
Out of stock

92170

CLAMP

92170-1278

1

$10.15

In stock

92170A

CLAMP

92170-1492

1

$3.97

In stock

92170B

CLAMP

92170-1493

1

$3.97

In stock

92171

CLAMP

92171-2064

1
Out of stock

92191

TUBE

92191-2110

1
Out of stock

92191A

TUBE

92191-2111

1
Out of stock

92191B

TUBE

92191-2125

1
Out of stock

92191C

TUBE

92191-2130

1
Out of stock

92200

WASHER

92200-2044

1
Out of stock
