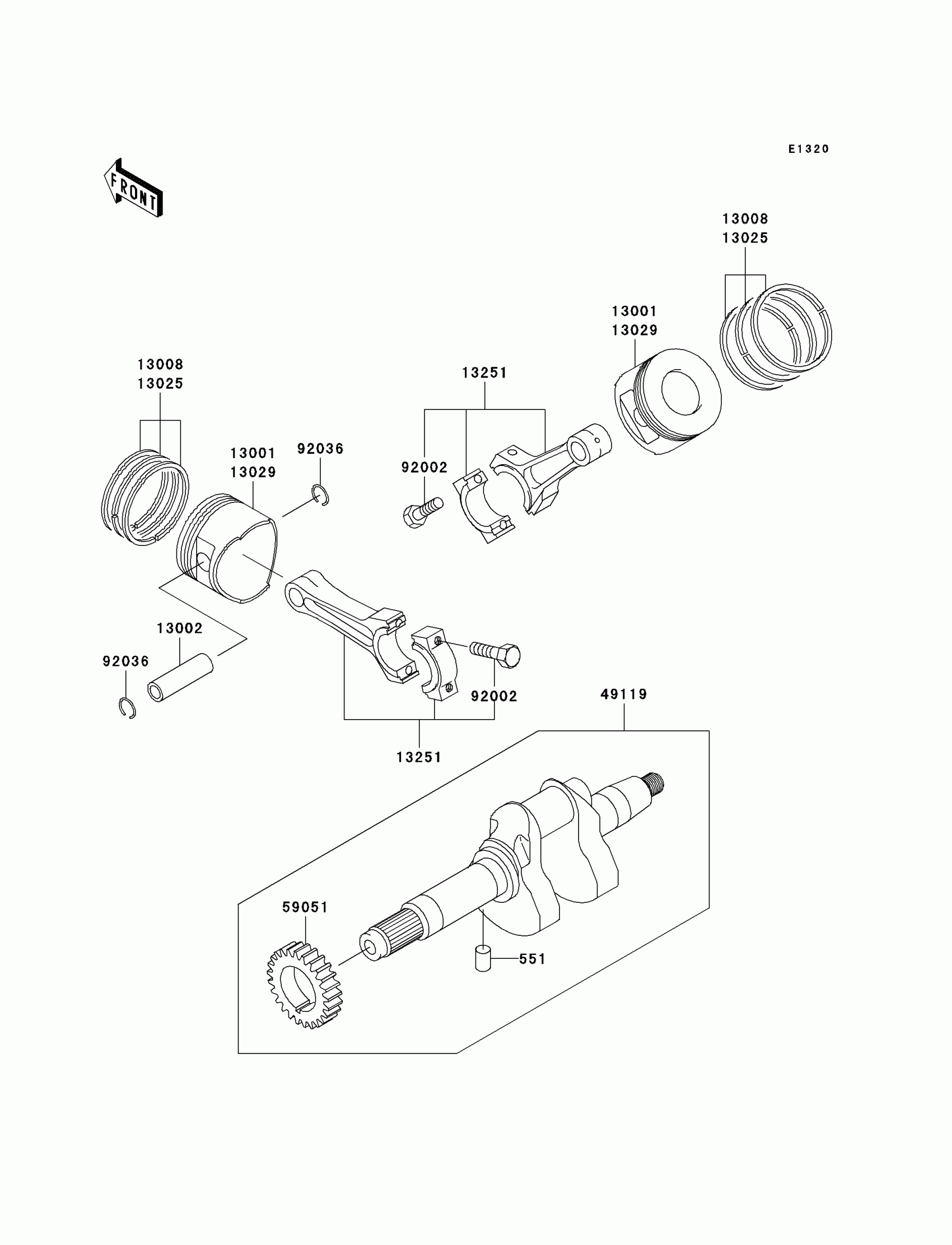

Kawasaki Mule 3020 Turf Crankshaft/Piston(s) Diagram

#

Description
Price

551

PIN-DOWEL,4X8

551A0408

$0.68

13001

PISTON-ENGINE,STD

13001-2131

Unavailable

13002

PIN-PISTON

13002-1013

$5.04

13008

RING-SET-PISTON,STD

13008-6025

$31.54

13025

RING-SET-PISTON L,0.50

13025-6008

Unavailable

13029

PISTON-ENGINE L,0.50

13029-2105

Unavailable

13251

ROD-ASSY-CONNECTING

13251-6022

Unavailable

49119

CRANKSHAFT-ASSY

49119-2200

$606.43

59051

GEAR-SPUR

59051-2112

$30.56

92002

BOLT

92002-2053

$3.19

92036

CIRCLIP,PISTON PIN

92036-021

$0.48
