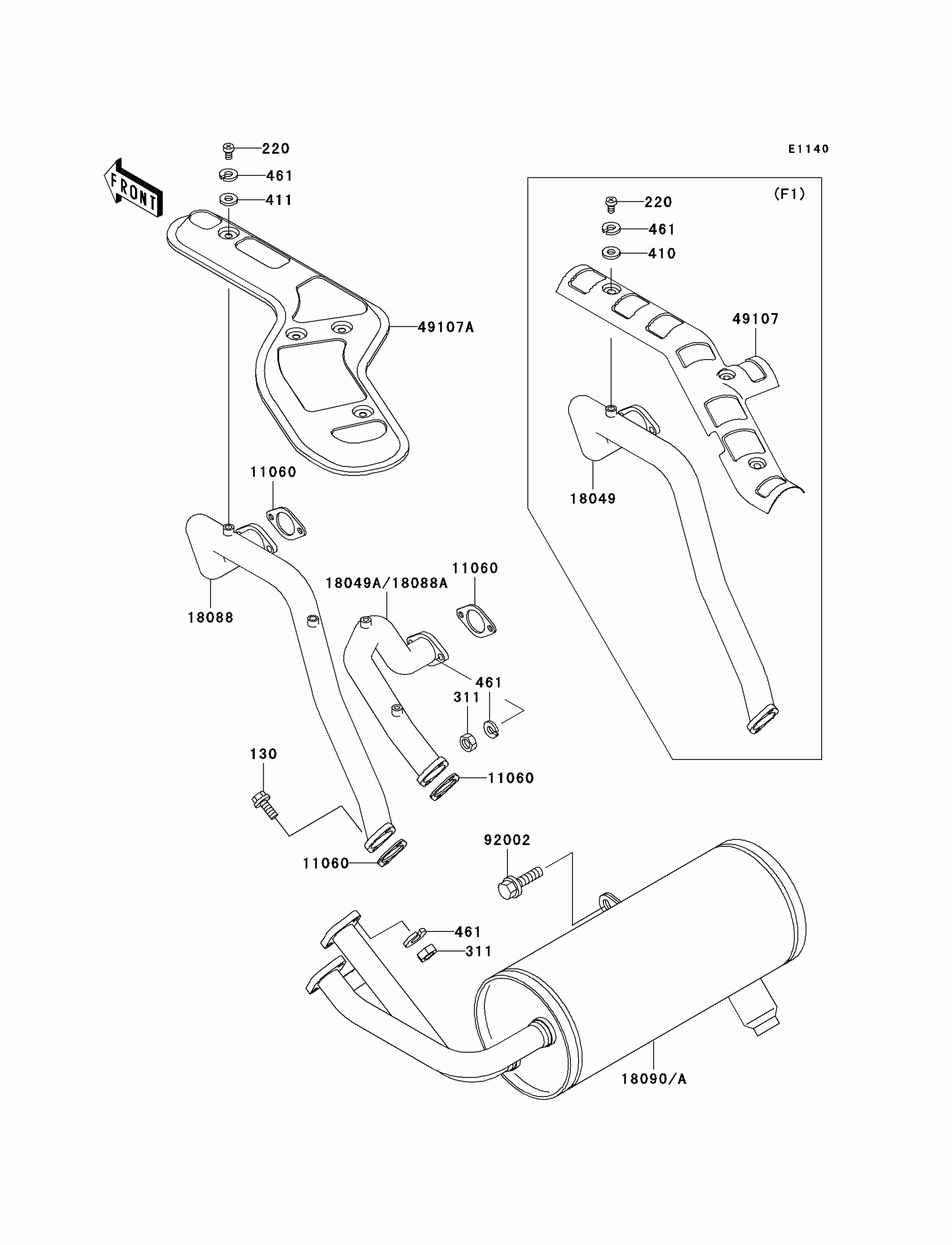

Kawasaki Mule 3020 Turf Muffler(s) Diagram

Description

Price

130

BOLT,FLANGED,6X25

130G0625

Unavailable

220

SCREW-PAN-CROS,6X10,BLACK

220C0610

$1.33

311

NUT-HEX,6MM

311G0600

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

461

WASHER SPRING 6MM

461F0600

Unavailable

11060

GASKET,EXHAUST PIPE

11060-2079

$3.58

18049

PIPE-EXHAUST,FR

18049-1735

Unavailable

18049A

PIPE-EXHAUST,RR

18049-1736

$72.93

18090

BODY-COMP-MUFFLER

18090-1451

$186.54

18090A

BODY-COMP-MUFFLER

18090-1912

$186.54

49107

COVER-EXHAUST PIPE

49107-1089

$73.20

92002

BOLT,8X20

92002-1250

$4.27
