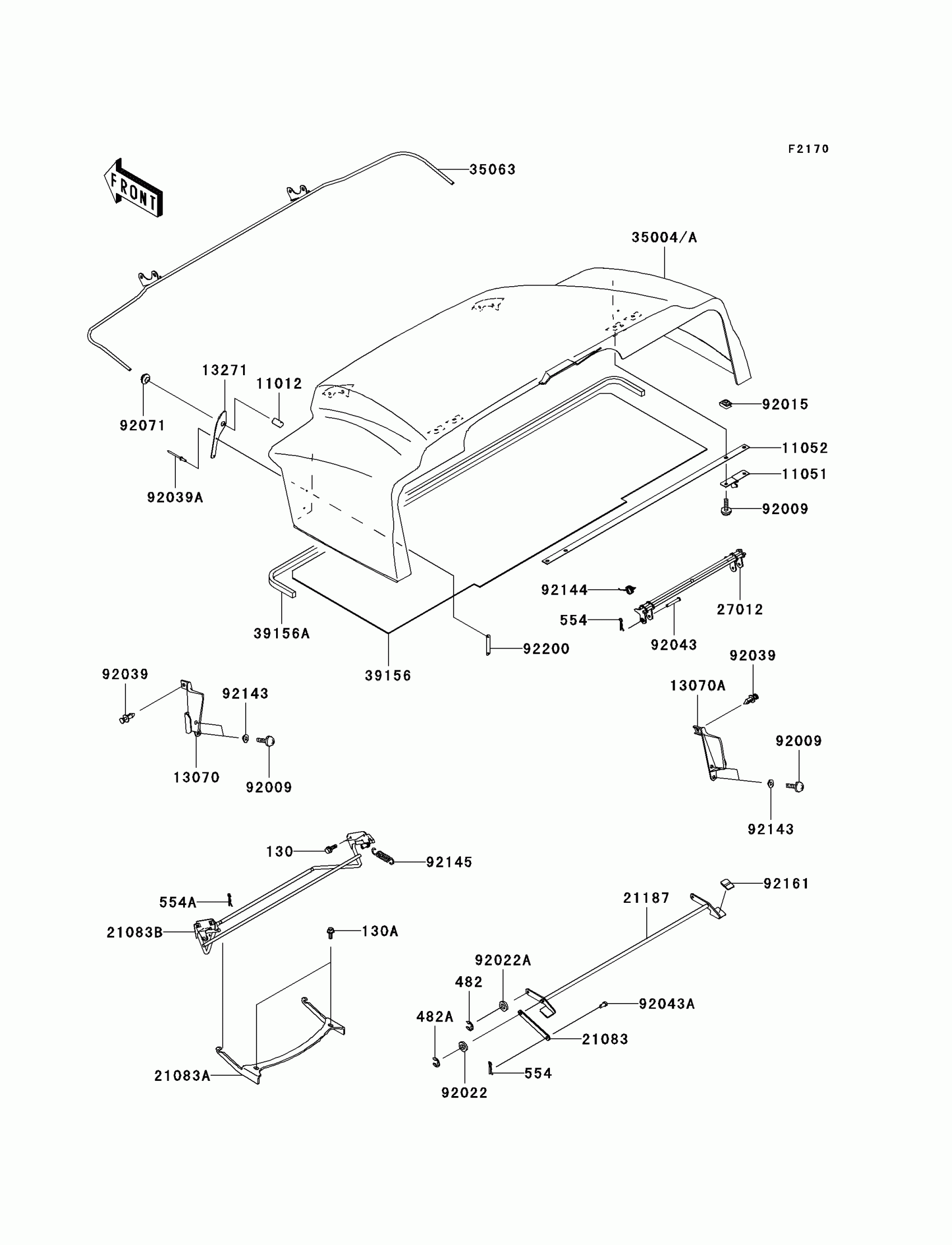

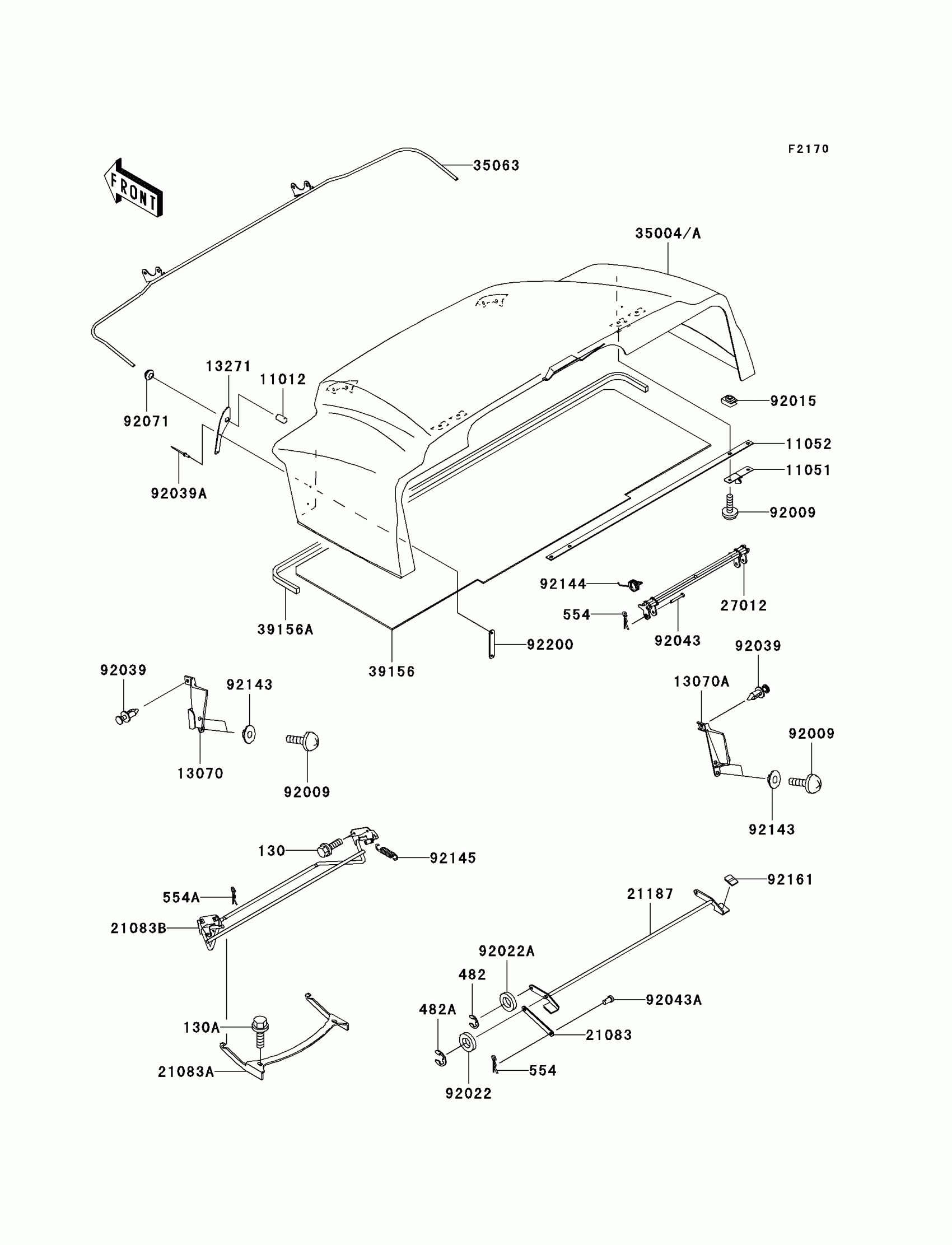

Kawasaki Mule 3010 Trans4x4 Fenders Diagram

#

Description
Price

130

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130A

BOLT-FLANGED,8X16

130J0816

Unavailable

482

CIRCLIP-TYPE-E,5MM

482L5000

$0.97

482A

CIRCLIP-TYPE-E

482L7000

$2.99

554

PIN,SNAP

554A0600

Unavailable

554A

PIN-SNAP,8MM

554A0800

Unavailable

11012

CAP

11012-1985

$4.39

11051

BRACKET

11051-1756

$5.22

11052

BRACKET

11052-1369

$15.11

13070

GUIDE,LH

13070-1367

$28.39

13070A

GUIDE,RH

13070-1368

$28.39

13271

PLATE,RR

13271-1800

$5.71

21083

ARM

21083-1146

$2.63

21083A

ARM

21083-1163

$43.54

21083B

ARM

21083-1172

$122.25

21187

ARM-ASSY

21187-1085

$42.43

27012

HOOK

27012-1608

$72.78

35004

FENDER-FRONT,A.RED

35004-0007-260

$128.90

35004A

FENDER-FRONT,H.GREEN

35004-0007-6A

$128.94

35063

STAY,FR FENDER

35063-1203

$56.33

39156

PAD,FRONT FENDER

39156-0014

$142.60

39156A

PAD

39156-1685

Unavailable

92009

SCREW,6X16

92009-1621

$3.60

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

Unavailable

92022A

WASHER,6.5X20X1.6,BLACK

92022-1346

$1.49

92039

RIVET

92039-1229

$0.88

92039A

RIVET

92039-1244

$1.94

92043

PIN,6X39

92043-1625

$2.48

92043A

PIN,6X9

92043-1626

$2.26

92071

GROMMET,10MM

92071-019

$3.89

92143

COLLAR

92143-1087

$4.31

92144

SPRING,SEAT HOOK

92144-1174

$6.82

92145

SPRING

92145-1335

$6.34

92161

DAMPER

92161-1197

$5.15

92200

WASHER

92200-1592

$3.69
