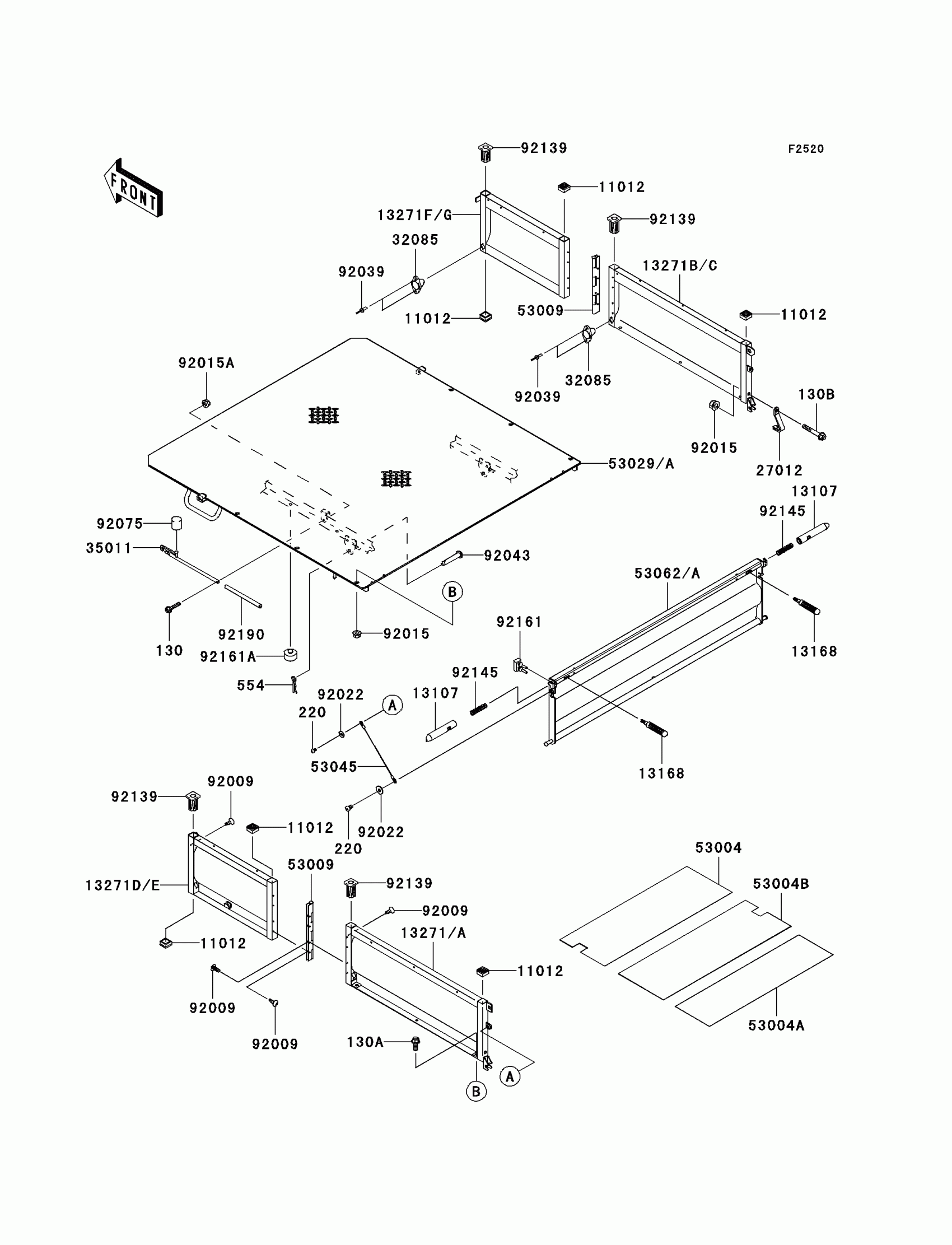

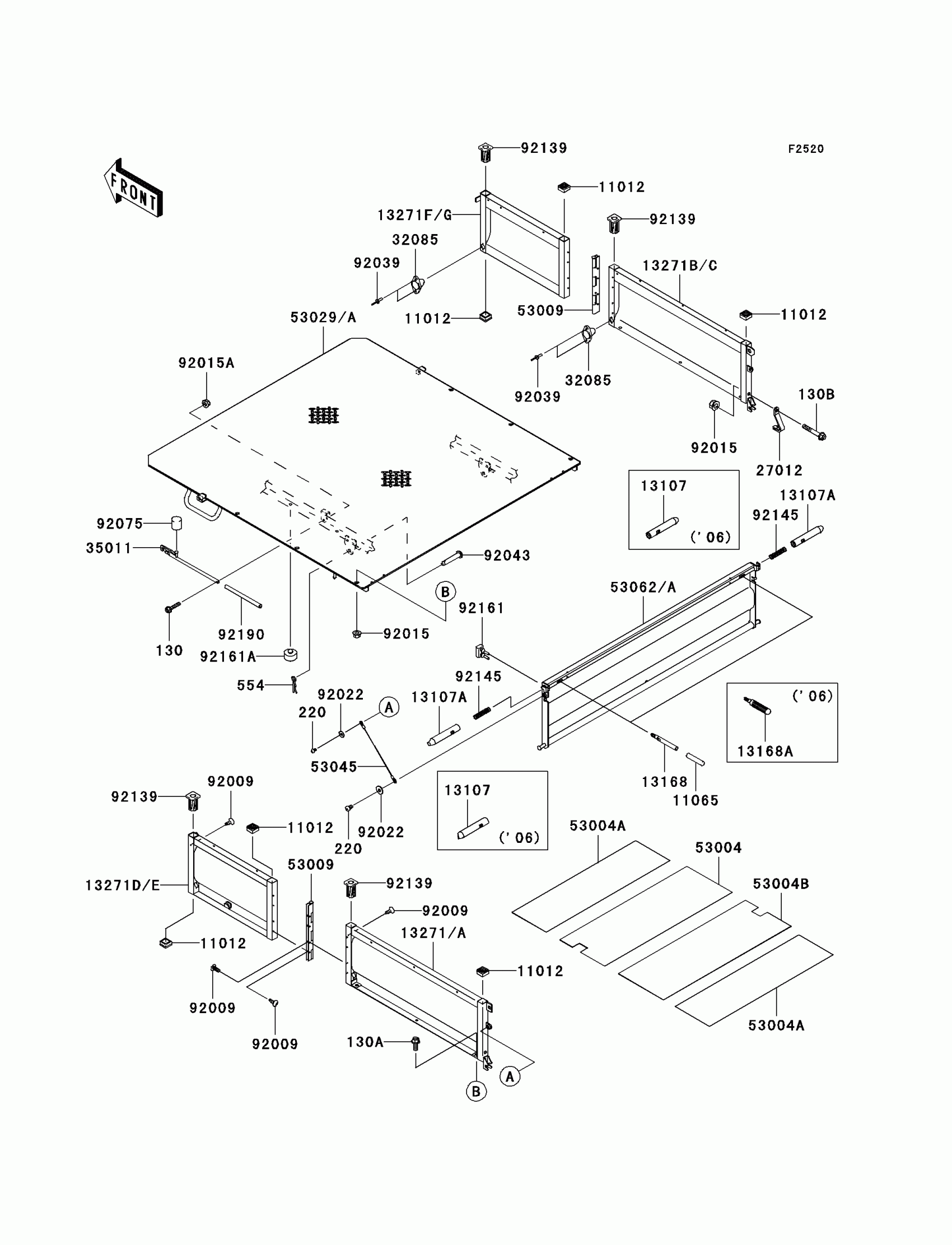

Find the part on the Carrier diagram for your 2007 Kawasaki Mule 3010 Trans4x4, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2007 Kawasaki Mule 3010 Trans4x4 Carrier Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X30

130H0630

1
Out of stock

130A

BOLT-FLANGED,8X20

130J0820

1
Out of stock

130B

BOLT-FLANGED,8X50

130J0850

1
Out of stock

220

SCREW-PAN-CROSS,6X10

220F0610

1
Out of stock

554

PIN-SNAP,12MM

554A1200

1
Out of stock

11012

CAP

11012-1784

1
Out of stock

13107

SHAFT

13107-0001

1
Out of stock

13168

LEVER

13168-7501

1
Out of stock

13271

PLATE,SIDE,RR,LH,H.GREEN

13271-7532-B9

1
Out of stock

13271A

PLATE,SIDE,RR,LH,A.RED

13271-7532-467

1
Out of stock

13271B

PLATE,SIDE,RR,RH,H.GREEN

13271-7534-B9

1
Out of stock

13271C

PLATE,SIDE,RR,RH,A.RED

13271-7534-467

1
Out of stock

13271D

PLATE,SIDE,FR,LH,H.GREEN

13271-7535-B9

1
Out of stock

13271E

PLATE,SIDE,FR,LH,A.RED

13271-7535-467

1
Out of stock

13271F

PLATE,SIDE,FR,RH,H.GREEN

13271-7537-B9

1
Out of stock

13271G

PLATE,SIDE,FR,RH,A.RED

13271-7537-467

1
Out of stock

27012

HOOK,TAIL GATE

27012-0022

1
Out of stock

32085

STOPPER

32085-7501

1
Out of stock

35011

STAY,CARRIER STOPPER

35011-1648

1
Out of stock

53004

MAT

53004-1158

1
Out of stock

53004A

MAT

53004-1160

1
Out of stock

53004B

MAT

53004-7501

1
Out of stock

53009

HINGE,CARRIER

53009-7501

1
Out of stock

53029

CARRIER,H.GREEN

53029-7512-B9

1
Out of stock

53029A

CARRIER,A.RED

53029-7512-467

1
Out of stock

53045

HOOK-ASSY,TAIL GATE

53045-0004

1
Out of stock

53062

GATE-TAIL,H.GREEN

53062-7503-B9

1
Out of stock

53062A

GATE-TAIL,A.RED

53062-7503-467

1
Out of stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1408

1
Out of stock

92015A

NUT,LOCK,FLANGED,6MM

92015-1675

1
Out of stock

92022

WASHER,7X18X1.2

92022-1545

1
Out of stock

92039

RIVET

92039-1150

1
Out of stock

92043

PIN,12X65

92043-1428

1
Out of stock

92075

DAMPER

92075-1817

1
Out of stock

92139

BUSHING,REAR SCREEN

92139-7501

1
Out of stock

92145

SPRING,TENSIONER

92145-1215

1
Out of stock

92161

DAMPER

92161-0258

1
Out of stock

92161A

DAMPER

92161-7510

1
Out of stock

92190

TUBE,13X16X200

92190-1401

1
Out of stock
