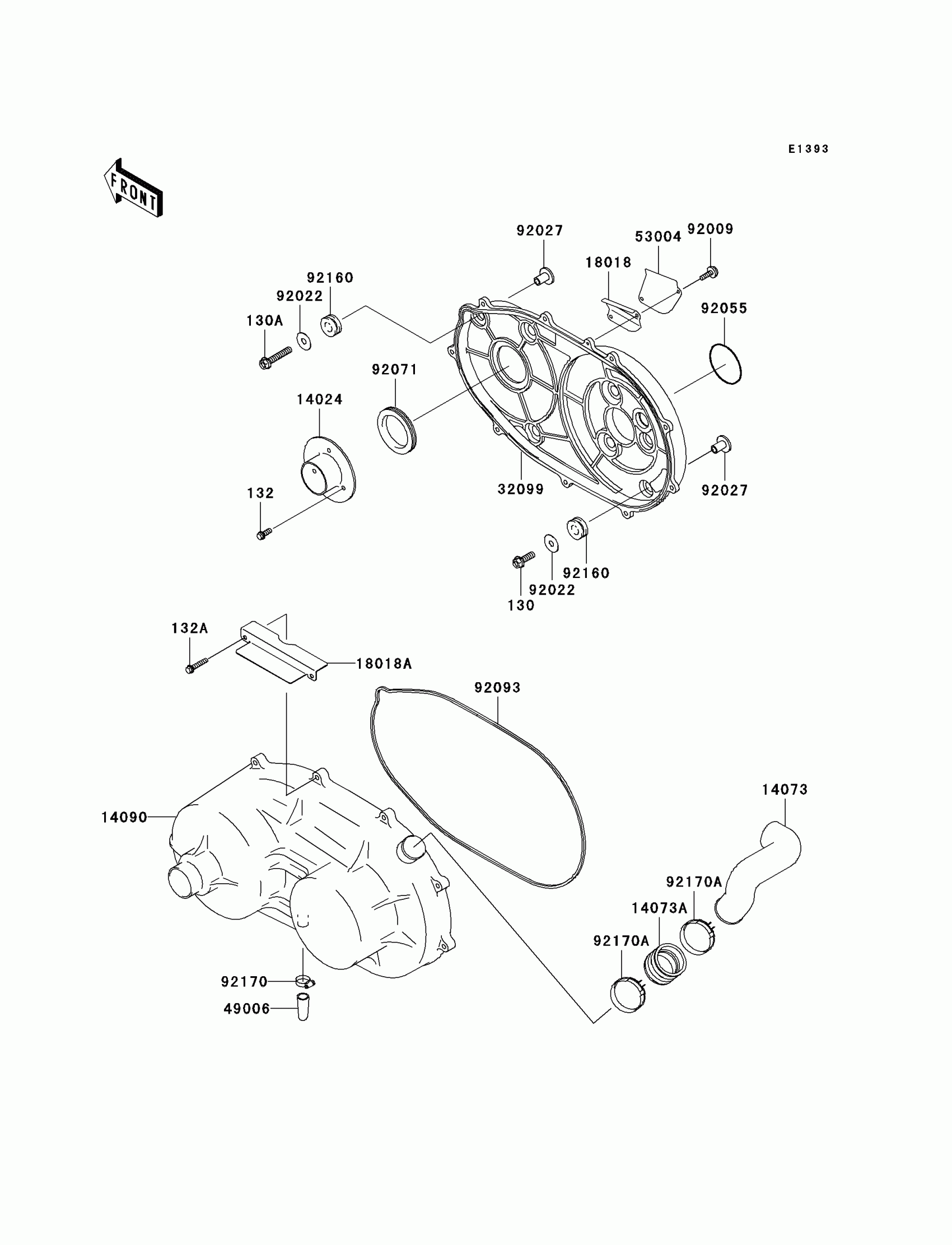

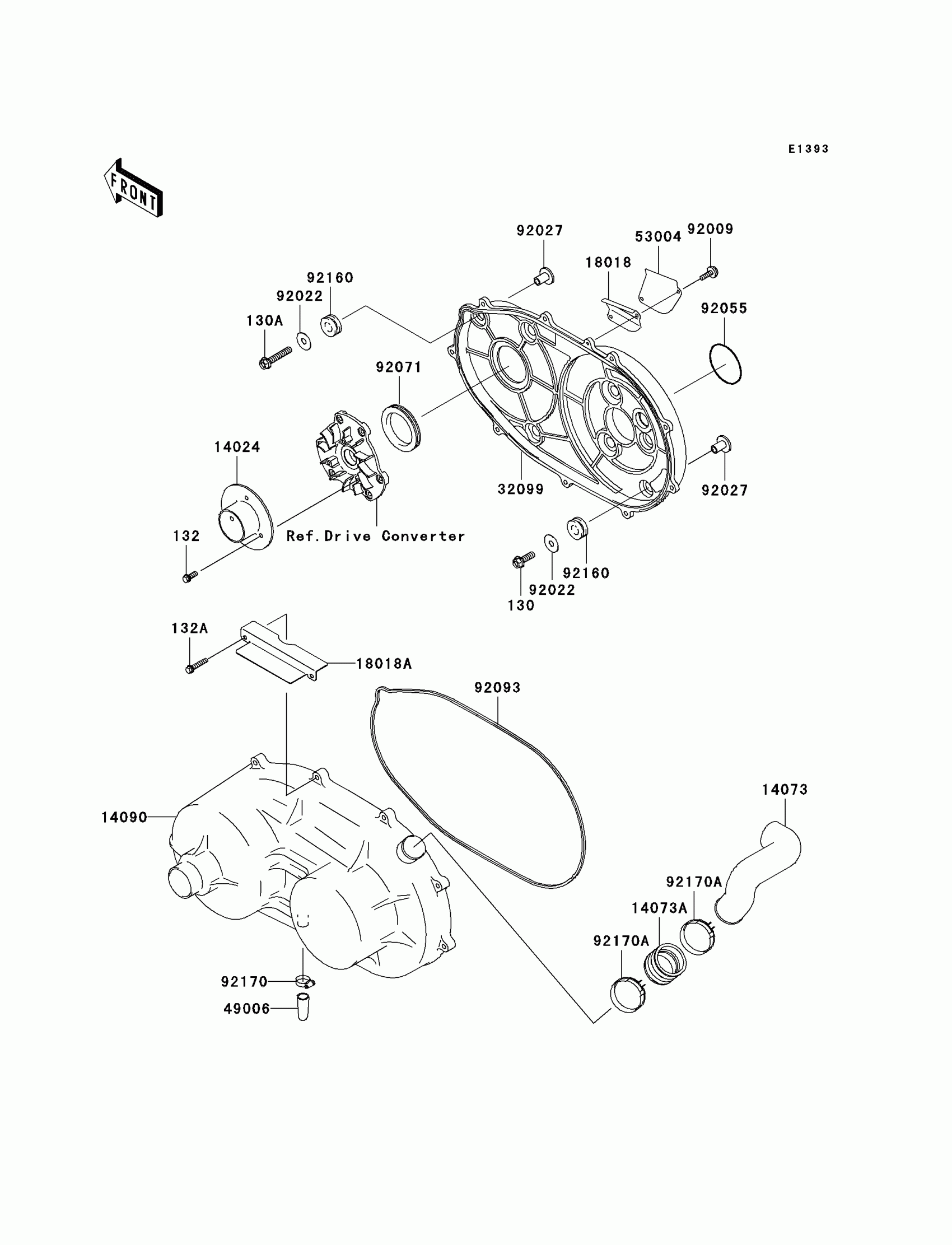

Kawasaki Mule 3010 Trans4x4 Converter Cover Diagram

Description

Price

130

BOLT-FLANGED,8X25,BLACK

130J0825

Unavailable

130A

BOLT-FLANGED,8X45

130J0845

Unavailable

132

BOLT-FLANGED-SMALL,6X16

132G0616

Unavailable

132A

BOLT-FLANGED-SMALL,6X30

132J0630

Unavailable

14024

COVER,FAN

14024-1554

$41.67

14073

DUCT

14073-0079

Unavailable

14073A

DUCT

14073-1324

$10.67

14090

COVER,BELT CONVERTER

14090-1239

$165.19

18018

PLATE-HEAT GUARD

18018-1092

Unavailable

18018A

PLATE-HEAT GUARD

18018-1118

$16.98

32099

CASE,BELT CONVERTER

32099-1140

Unavailable

49006

BOOT

49006-1351

$7.51

53004

MAT,GUARD PLATE

53004-1079

$16.73

92009

SCREW,TAPPING,5X10

92009-1332

$3.92

92022

WASHER SEAL PLATE

92022-101

$4.31

92027

COLLAR

92027-4015

$10.65

92055

RING-O,CRANKCASE SIDE

92055-1395

$4.87

92071

GROMMET,CONVERTER CASE

92071-1212

$10.00

92093

SEAL

92093-1526

Unavailable

92160

DAMPER

92160-1012

$5.52

92170

CLAMP

92170-1283

$10.55

92170A

CLAMP

92170-1448

$8.10
