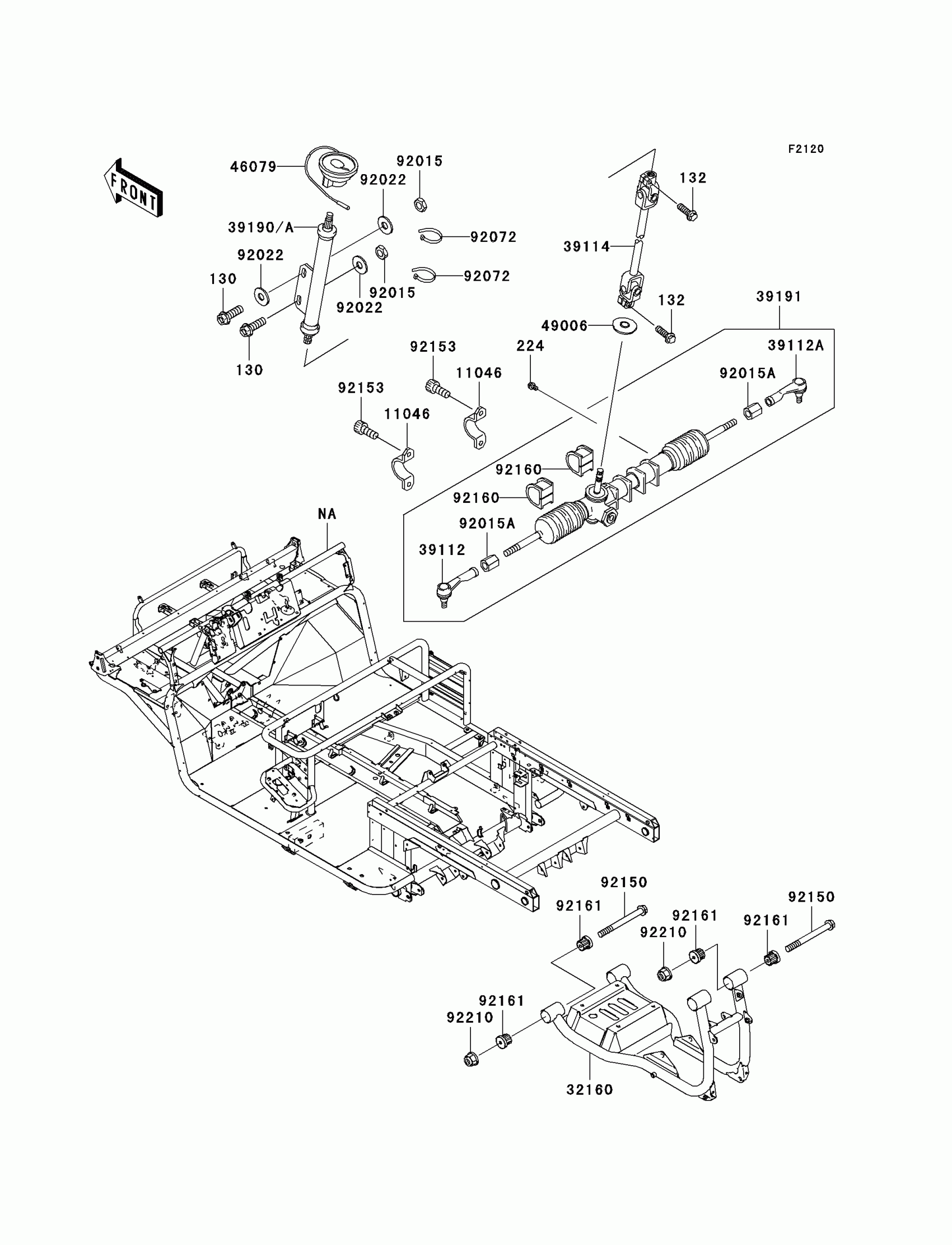

Kawasaki Mule 3010 Trans4x4 Frame Diagram

#

Description
Price

130

BOLT-FLANGED,10X30

130J1030

Unavailable

132

BOLT-FLANGED-SMALL,8X25

132J0825

Unavailable

224

SCREW-PAN-WP-CROS

224B0508

Unavailable

11046

BRACKET,STEERING GEAR

11046-1858

Unavailable

32160

FRAME-COMP,RR

32160-0004

$247.73

32160A

Not Available For This Vehicle | Includes 7 to 14

n/a

Unavailable

39112

RODEND-TIE,STEERING GEAR,LH

39112-1068

$96.05

39112A

RODEND-TIE,STEERING GEAR,RH

39112-1069

$96.05

39114

SHAFT-COMP-STRG

39114-1070

$319.63

39190

SHAFT-ASSY-STEERING

39190-1006

$231.78

39191

GEAR-ASSY-STEERING

39191-0008

$1,055.82

46079

CONTACT,HORN SWITCH

46079-1063

$86.71

49006

BOOT,STEERING SHAFT,LWR

49006-1255

$34.90

92015

NUT,LOCK,10MM,BLACK

92015-1189

$7.34

92015A

NUT

92015-1864

$14.39

92022

WASHER,10.5X26X2.3,BLACK

92022-1396

$3.21

92072

BAND,L=188

92072-1239

$1.73

92150

BOLT,FLANGED,10X100

92150-1731

$18.15

92153

BOLT,SOCKET,10X23

92153-1269

$2.80

92160

DAMPER,STEERING GEAR

92160-1084

$31.96

92161

DAMPER

92161-1126

Unavailable

92210

NUT,LOCK,FLANGED,10MM

92210-1139

$4.18
