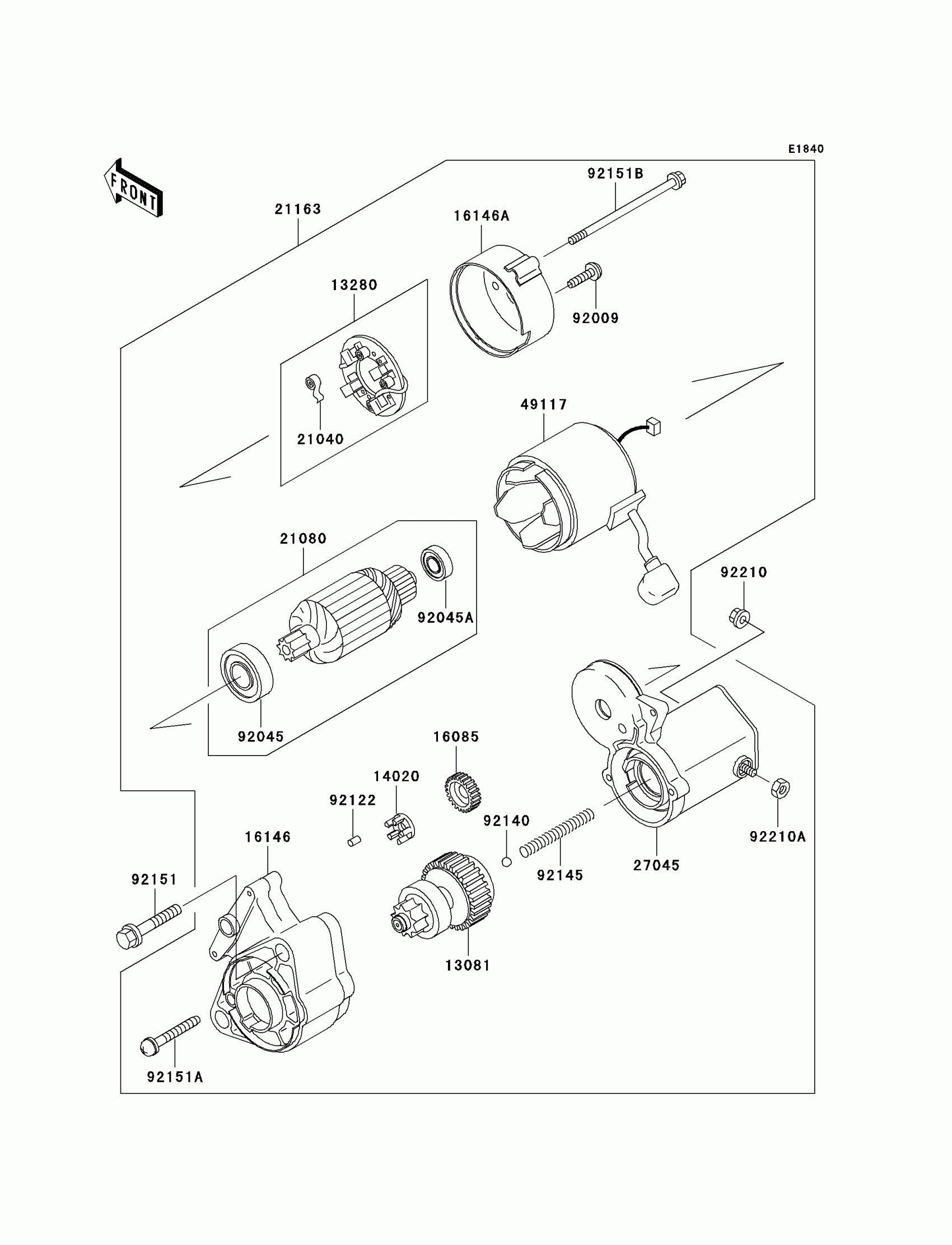

Kawasaki Mule 2510 Diesel Starter Motor Diagram

Description

Price

13081

CLUTCH-ASSY,STARTER

13081-1584

$461.13

13280

HOLDER,STARTER BRUSH

13280-1172

$93.42

14020

RETAINER

14020-1108

$8.66

16085

GEAR,STARTER IDLE

16085-1341

$44.51

16146

COVER-ASSY,STARTER DRIVE

16146-1212

$304.32

16146A

COVER-ASSY,STARTER END

16146-1213

$106.74

21040

SPRING-BRUSH

21040-1058

$4.24

21080

ARMATURE,STARTER

21080-1051

$602.58

21163

STARTER-ELECTRIC

21163-1299

$382.28

27045

SWITCH-ASSY,MAGNETIC

27045-1075

$602.58

49117

YOKE,STARTER

49117-1094

$418.46

92009

SCREW

92009-1920

$2.42

92045

BEARING-BALL,6002T1XZCE

92045-1396

$40.36

92045A

BEARING-BALL,608ZMC3E

92045-1397

$29.86

92122

ROLLER,IDLE GEAR

92122-1210

$2.12

92140

BALL

92140-1065

$2.10

92145

SPRING

92145-1311

$3.81

92151

BOLT,10X28

92151-1696

Unavailable

92151A

BOLT

92151-1713

Unavailable

92151B

BOLT

92151-1714

$13.88

92210

NUT,8MM

92210-1219

$2.12

92210A

NUT

92210-1231

$5.10
