2007 Kawasaki Mule 2510 Diesel Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2007 Kawasaki Mule 2510 Diesel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

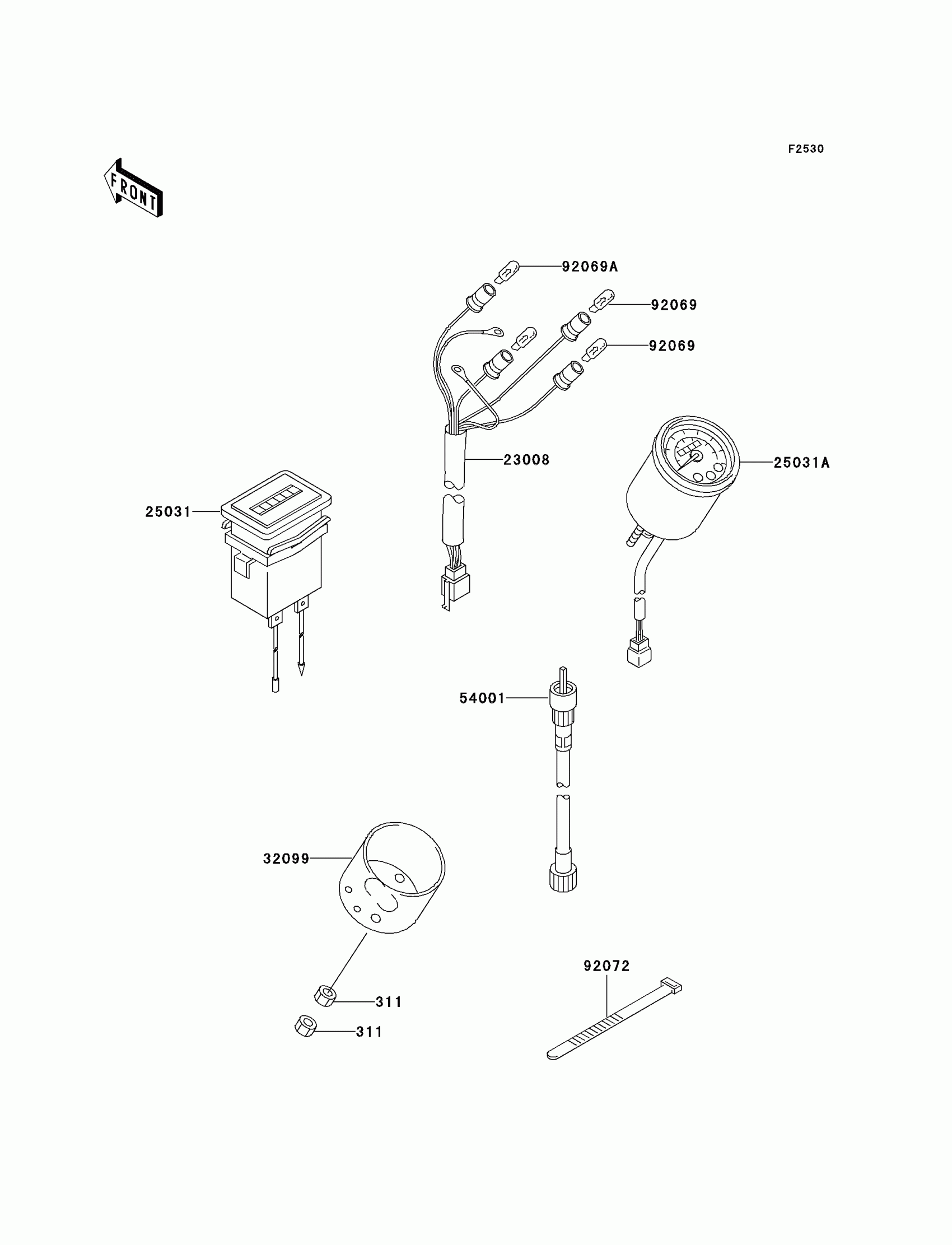

2007 Kawasaki Mule 2510 Diesel Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

311

NUT-HEX

311B0500

1
Out of stock

23008

SOCKET-ASSY,METER

23008-1355

1
Out of stock

25031

METER-ASSY,HOUR

25031-1013

1
Out of stock

25031A

METER-ASSY,MPH

25031-1176

1
Out of stock

32099

CASE,SPEEDOMETER

32099-1145

1
Out of stock

54001

CABLE-SPEEDOMETER

54001-1135

1
Out of stock

92069

BULB,12V 3.4W,T10

92069-1007

1
Out of stock

92069A

BULB,12V 1.7W,T10

92069-1059

1
Out of stock

92072

BAND,L=188

92072-1239

1
Out of stock
