2007 Kawasaki Mule 2510 Diesel Reflectors Diagram

← All diagrams

Find the part on the Reflectors diagram for your 2007 Kawasaki Mule 2510 Diesel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

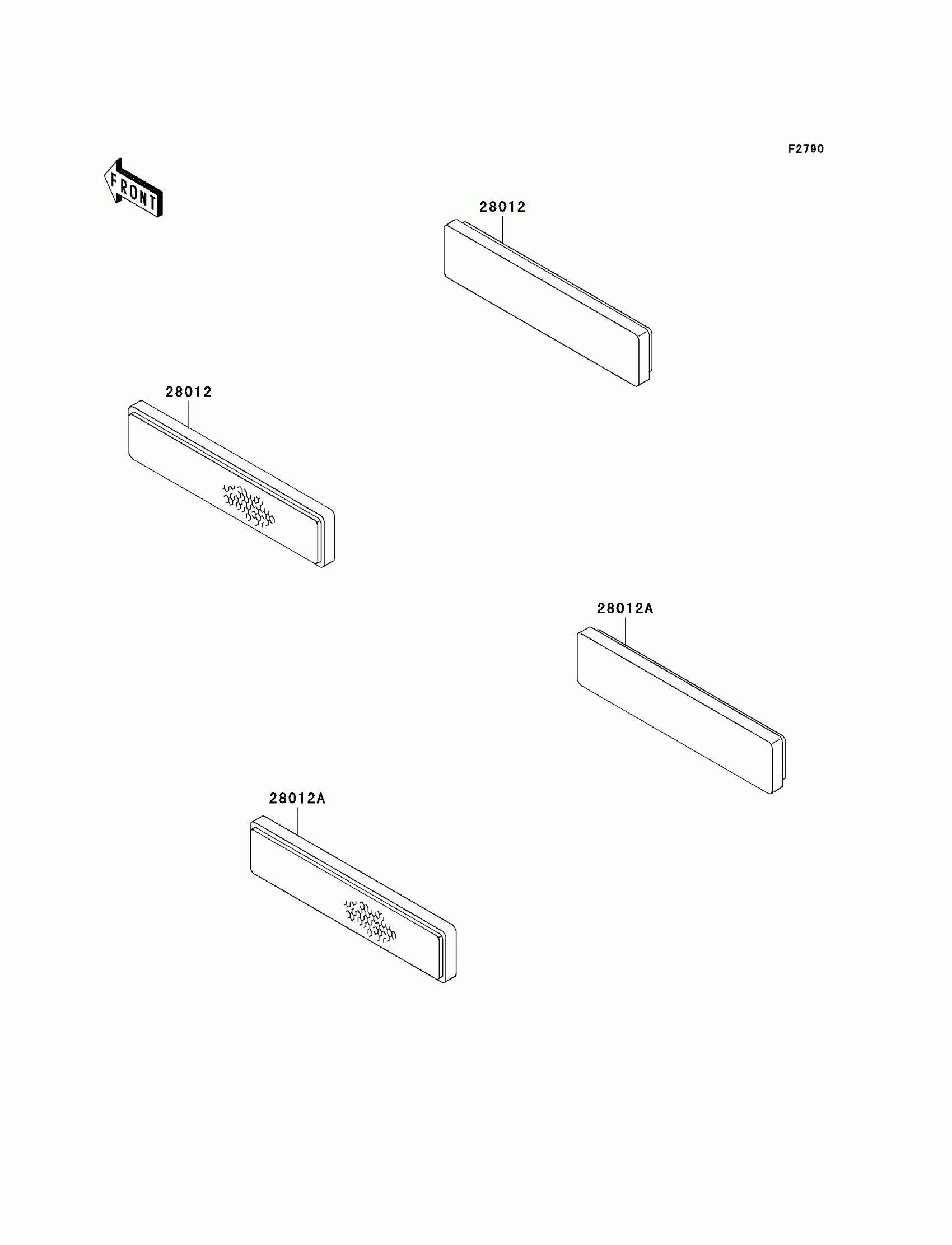

2007 Kawasaki Mule 2510 Diesel Reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

28012

REFLECTOR-REFLEX,FR

28012-1086

1
Out of stock

28012A

REFLECTOR-REFLEX,RR

28012-1087

1
Out of stock
