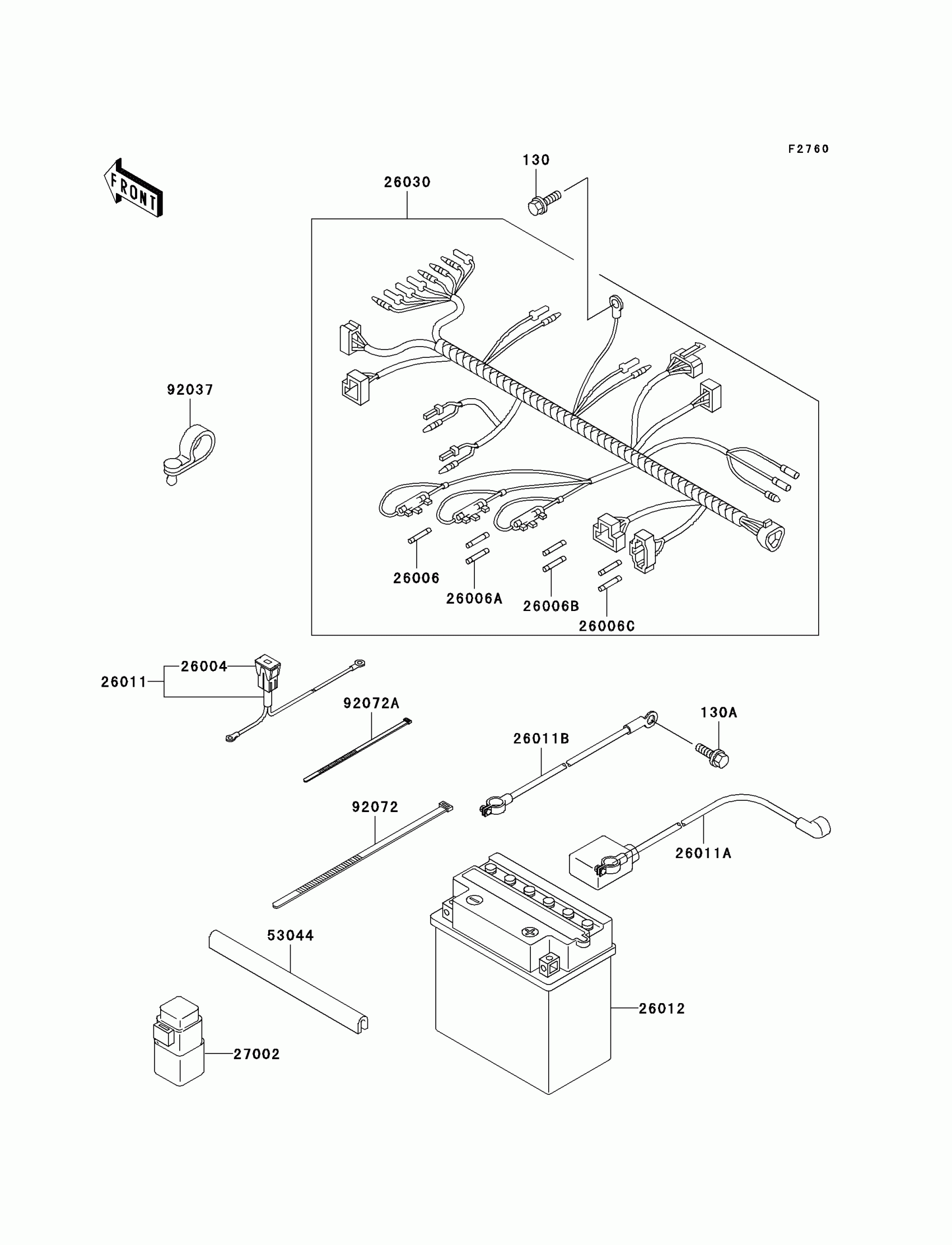

Kawasaki Mule 2510 Diesel Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED,6X12

130J0612

Unavailable

130A

BOLT-FLANGED,8X12

130J0812

Unavailable

26004

FUSE-ASSY,50A

26004-1096

$4.29

26006

FUSE,30A,L=30

26006-1059

Unavailable

26006A

FUSE,5A,L=32

26006-1063

$7.32

26006B

FUSE,GLASS TUBE,6.4X31.8,20A

26006-1064

$5.14

26006C

FUSE,15A

26006-1076

$4.69

26011

WIRE-LEAD,ALTERNATOR

26011-1718

Unavailable

26011A

WIRE-LEAD,BATTERY(+)

26011-1738

$182.51

26011B

WIRE-LEAD,BATTERY(-)

26011-1739

$161.03

26012

BATTERY

26012-1377

$132.95

26030

HARNESS,MAIN

26030-1757

$217.93

27002

RELAY-ASSY

27002-1068

$61.26

53044

TRIM

53044-1137

$10.25

92037

CLAMP,HOSE

92037-1827

$5.69

92072

BAND,L=365

92072-1197

$7.71

92072A

BAND,L=188

92072-1239

$1.30
