2007 Kawasaki Mule 2510 Diesel Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2007 Kawasaki Mule 2510 Diesel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

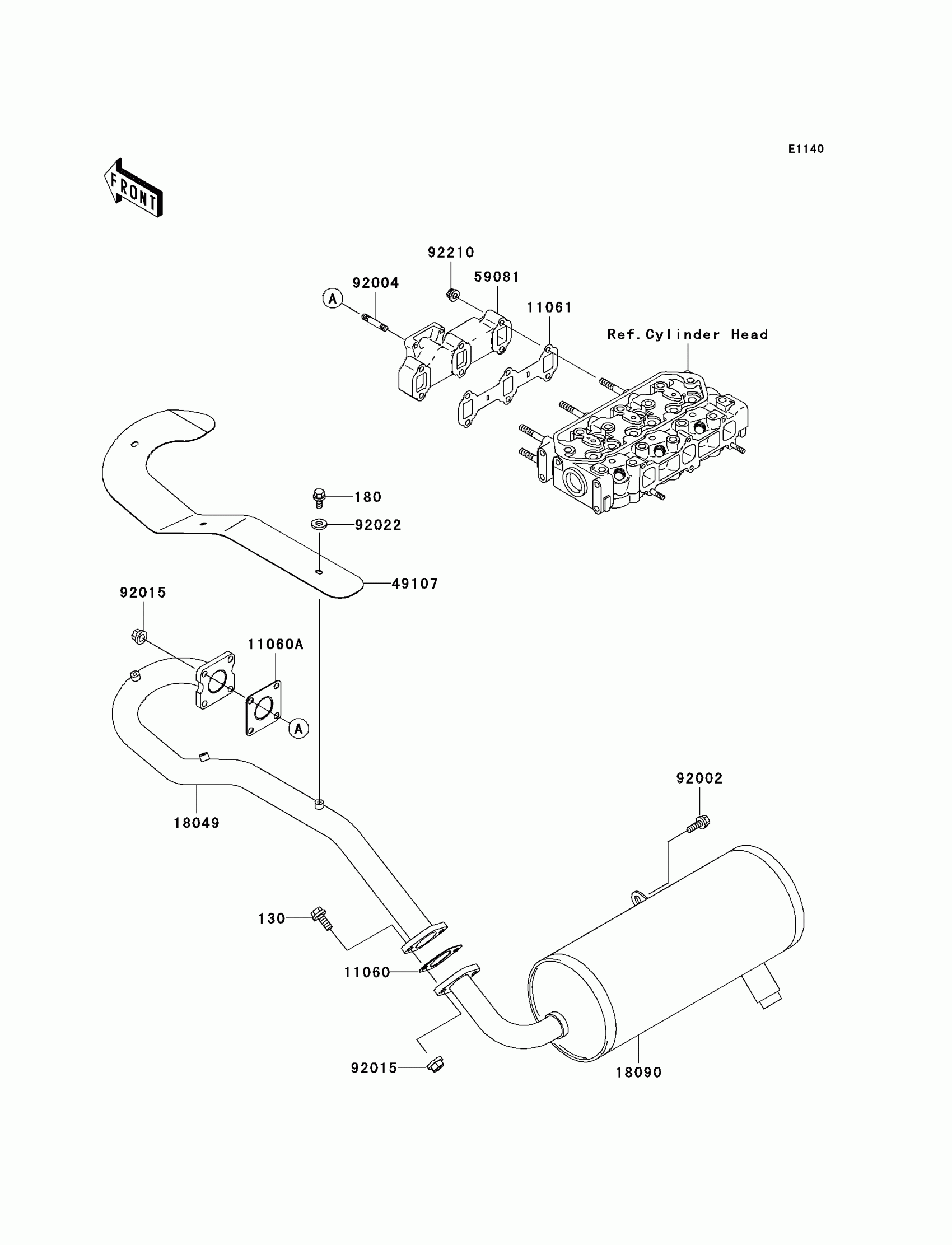

2007 Kawasaki Mule 2510 Diesel Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X25,BLACK

130J0825

1
Out of stock

180

BOLT-UPSET-WS

180J0612

1
Out of stock

11060

GASKET,MUFFLER

11060-1915

1

$22.06

In stock

11060A

GASKET,EXHAUST PIPE

11060-1916

1

$10.24

In stock

11061

1

$18.29

In stock

18049

PIPE-EXHAUST

18049-1944

1

$84.32

In stock

18090

BODY-COMP-MUFFLER

18090-1739

1
Out of stock

49107

COVER-EXHAUST PIPE

49107-1179

1
Out of stock

59081

MANIFOLD-EXHAUST

59081-1391

1

$132.47

In stock

92002

BOLT,8X20

92002-1250

1

$4.47

In stock

92004

STUD,8X20

92004-1272

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1406

1

$3.53

In stock

92022

1

$0.53

In stock

92210

NUT,8MM

92210-1217

1
Out of stock
