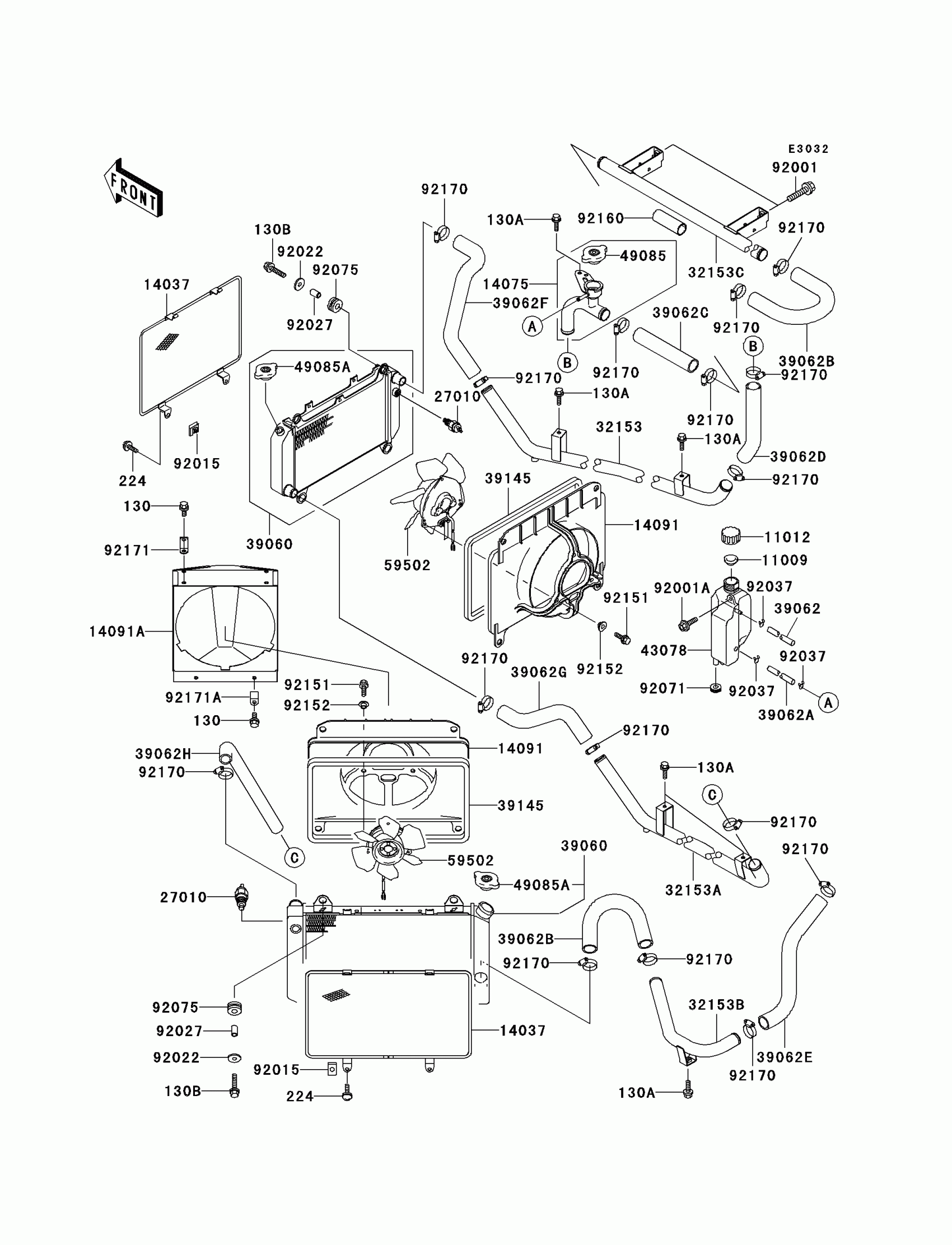

Kawasaki Mule 2510 Diesel Radiator Diagram

#

Description
Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.08

11012

CAP

11012-1084

$1.25

14037

SCREEN

14037-1258

$60.88

14075

CAP-ASSY

14075-1104

$501.34

14091

COVER,SHROUD

14091-1135

$79.11

14091A

COVER

14091-1216

$159.39

27010

SWITCH,FAN

27010-1317

$121.58

32153

PIPE,RH

32153-1056

Unavailable

32153A

PIPE,LH,FRONT

32153-1255

$63.58

32153B

PIPE,LH,REAR

32153-1256

$48.38

32153C

PIPE

32153-1392

$62.85

39060

RADIATOR

39060-1168

$972.04

39062

HOSE-COOLING

39062-1125

$21.40

39062A

HOSE-COOLING,CAP-RESERVOIR

39062-1592

$7.61

39062B

HOSE-COOLING

39062-1797

$14.56

39062C

HOSE-COOLING

39062-1798

Unavailable

39062D

HOSE-COOLING

39062-1799

$9.58

39062E

HOSE-COOLING

39062-1800

$21.23

39062F

HOSE-COOLING,RADIATOR,RH

39062-1801

Unavailable

39062G

HOSE-COOLING,RADIATOR,LH

39062-1802

Unavailable

39062H

HOSE-COOLING

39062-1826

$9.58

39145

TRIM-SEAL

39145-1119

$9.03

43078

RESERVOIR

43078-1072

Unavailable

49085

CAP-ASSY-PRESSURE

49085-1066

$33.19

49085A

CAP-ASSY-PRESSURE

49085-1068

$56.04

59502

FAN-ASSY

59502-1134

$638.79

92001

BOLT,FLANGED,8X45

92001-1613

$4.61

92001A

BOLT,W/P,6X16

92001-1860

$3.85

92015

NUT

92015-1487

$3.64

92022

WASHER,8.5X20X1.6,BLACK

92022-1317

$3.29

92027

COLLAR,8.2X10.5X15.6

92027-1763

$5.76

92037

CLAMP,TUBE

92037-147

$5.61

92071

GROMMET

92071-1115

$4.14

92075

DAMPER,RUBBER

92075-1123

$3.81

92151

BOLT,FLANGED,5X12

92151-1305

$1.20

92152

COLLAR

92152-1241

$1.32

92160

DAMPER,22X26X72

92160-1008

Unavailable

92170

CLAMP,COOLING HOSE

92170-1284

$6.25

92171

CLAMP,UPP

92171-1186

$4.03

92171A

CLAMP,LWR

92171-1187

$4.03

130

BOLT-FLANGED

130J0610

Unavailable

130A

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

130B

BOLT-FLANGED,8X30

130J0830

Unavailable

224

SCREW-PAN-WP-CROS,6X12

224C0612

Unavailable
