2007 Kawasaki Mule 2510 Diesel Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2007 Kawasaki Mule 2510 Diesel, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

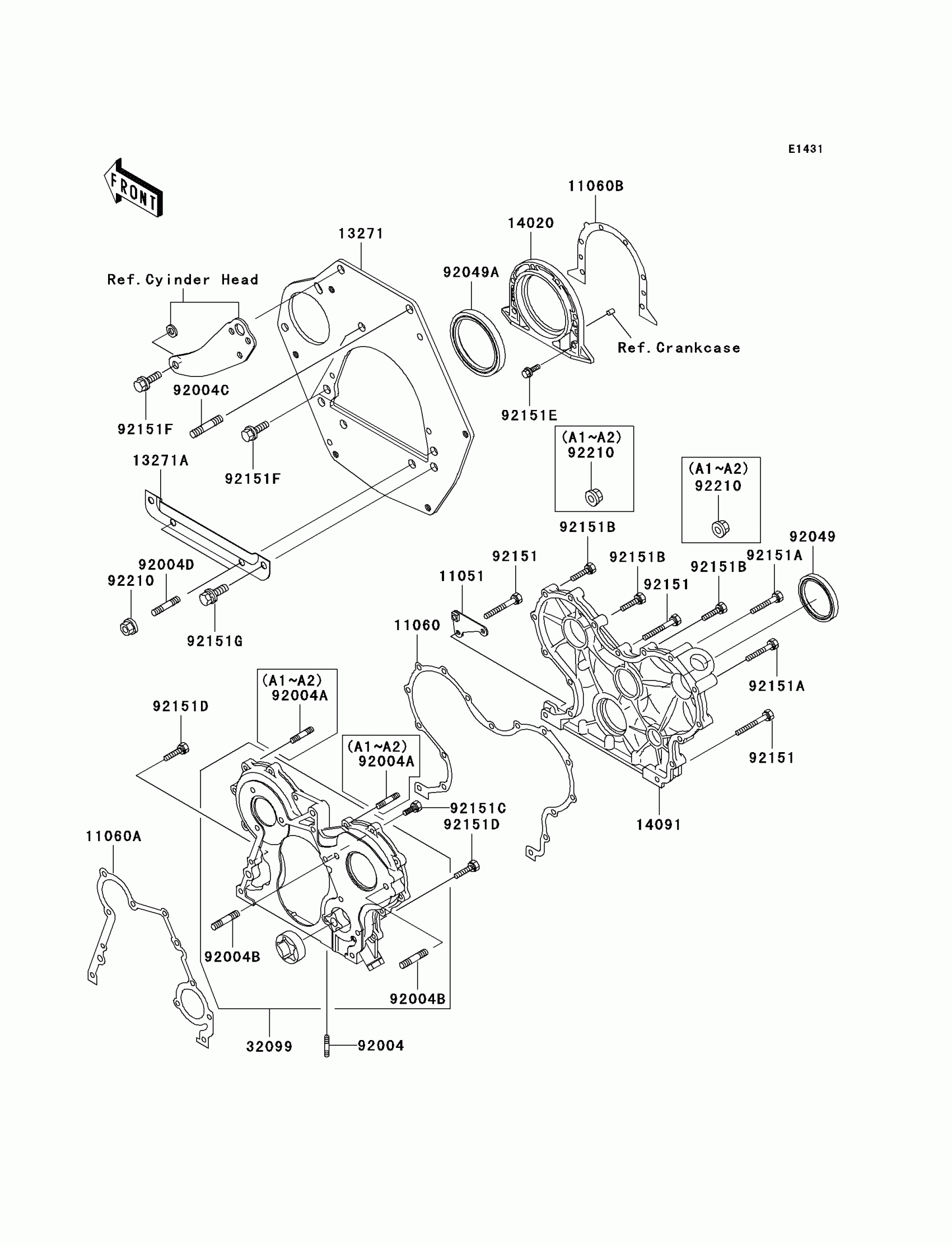

2007 Kawasaki Mule 2510 Diesel Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11051

BRACKET

11051-1550

1
Out of stock

11060

GASKET,TIMING COVER

11060-1945

1
Out of stock

11060A

GASKET,TIMING GEAR CASE

11060-1946

1
Out of stock

11060B

GASKET,RETAINER

11060-1947

1
Out of stock

13271

PLATE,LEFT END

13271-1358

1

$568.77

In stock

13271A

PLATE

13271-1359

1

$55.06

In stock

14020

RETAINER

14020-1107

1

$67.89

In stock

14091

COVER,TIMING GEAR

14091-1185

1
Out of stock

32099

CASE,TIMING GEAR

32099-1208

1
Out of stock

92004

STUD,6X14

92004-1262

1
Out of stock

92004A

STUD,6X25

92004-1268

1
Out of stock

92004B

STUD,8X28

92004-1269

1
Out of stock

92004C

STUD,10X40

92004-1270

1
Out of stock

92004D

STUD,6X13

92004-1271

1
Out of stock

92049

SEAL-OIL,AH2847K

92049-1525

1
Out of stock

92049A

SEAL-OIL,AH3513F

92049-1526

1
Out of stock

92151

BOLT,6X55

92151-1662

1
Out of stock

92151A

BOLT,6X45

92151-1663

1
Out of stock

92151B

BOLT,6X30

92151-1664

1
Out of stock

92151C

BOLT,6X16

92151-1665

1
Out of stock

92151D

BOLT,6X28

92151-1666

1
Out of stock

92151E

BOLT,6X20

92151-1667

1
Out of stock

92151F

BOLT,10X22

92151-1668

1
Out of stock

92151G

BOLT,6X12

92151-1669

1
Out of stock

92210

NUT,6MM

92210-1210

1
Out of stock
