2025 Yamaha MT07 (MT07SL) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2025 Yamaha MT07 (MT07SL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

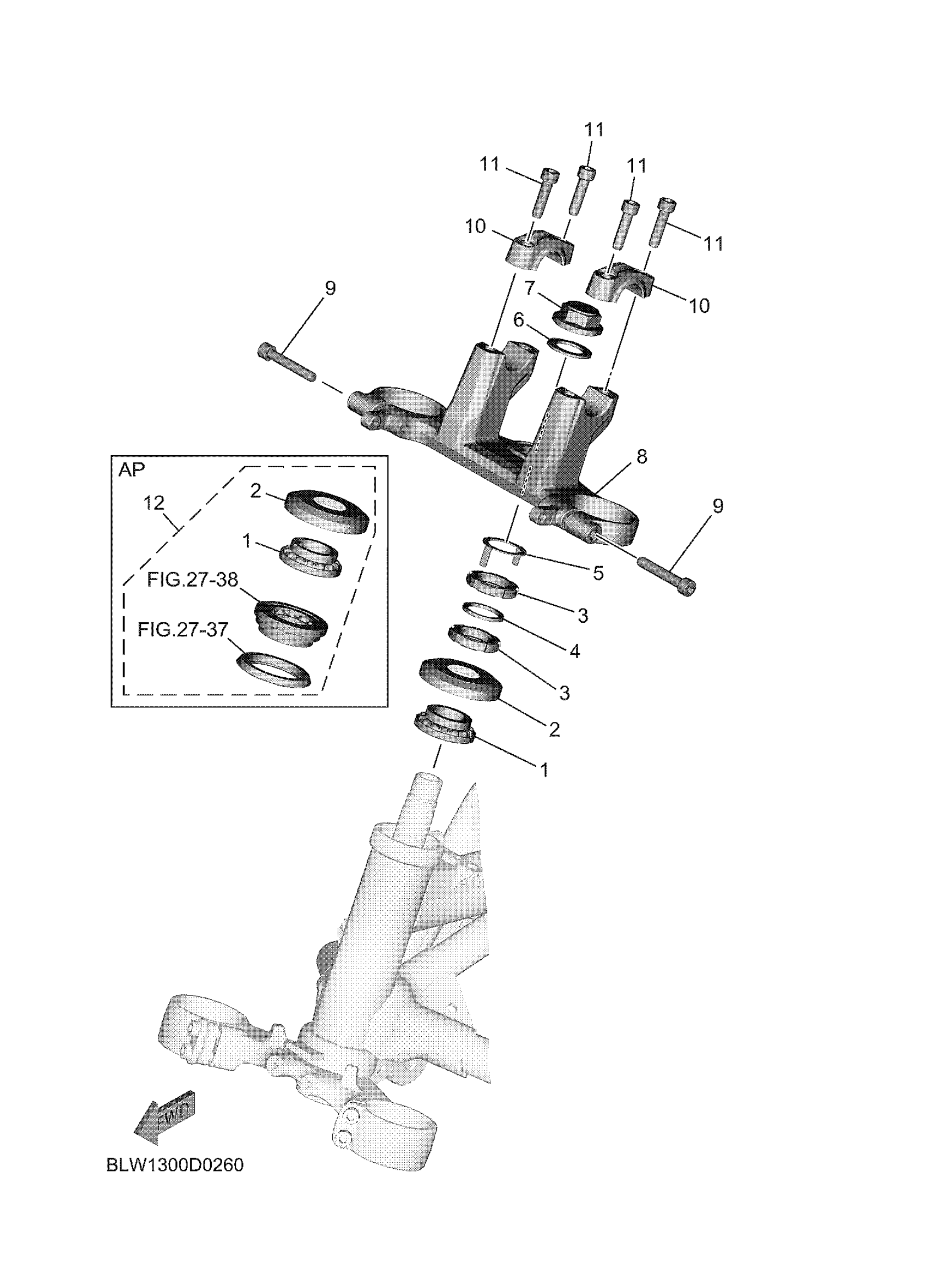

2025 Yamaha MT07 (MT07SL) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING(3FV)

93399-99931-00

1

$49.35

In stock

2

COVER, BALL RACE 2

1W1-23416-00-00

—

$25.83

In stock

3

NUT

90179-25004-00

1

$20.78

In stock

4

WASHER, PLATE (26H)

90202-26142-00

1

$8.06

In stock

5

WASHER, SPECIAL

26H-23418-01-00

1

$12.68

In stock

6

WASHER, PLATE

90201-22018-00

1

$4.11

In stock

7

NUT, SPECIAL

1RC-23393-00-00

1

$35.49

In stock

8

CROWN, HANDLE

BLW-23435-00-00

—

$131.99

In stock

9

BOLT,SOCKET

91314-08045-00

1

$6.82

In stock

10

HOLDER, HANDLE UPPER

B34-F3441-10-00

—
Out of stock

11

BOLT,SOCKET

91314-08030-00

1

$2.29

In stock

12

STEERING BEARING KIT

BVA-W000B-00-00

1

$131.25

In stock
← Rear Wheel Steering Handle & Cable →
