2025 Yamaha MT07 (MT07SL) Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 2025 Yamaha MT07 (MT07SL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

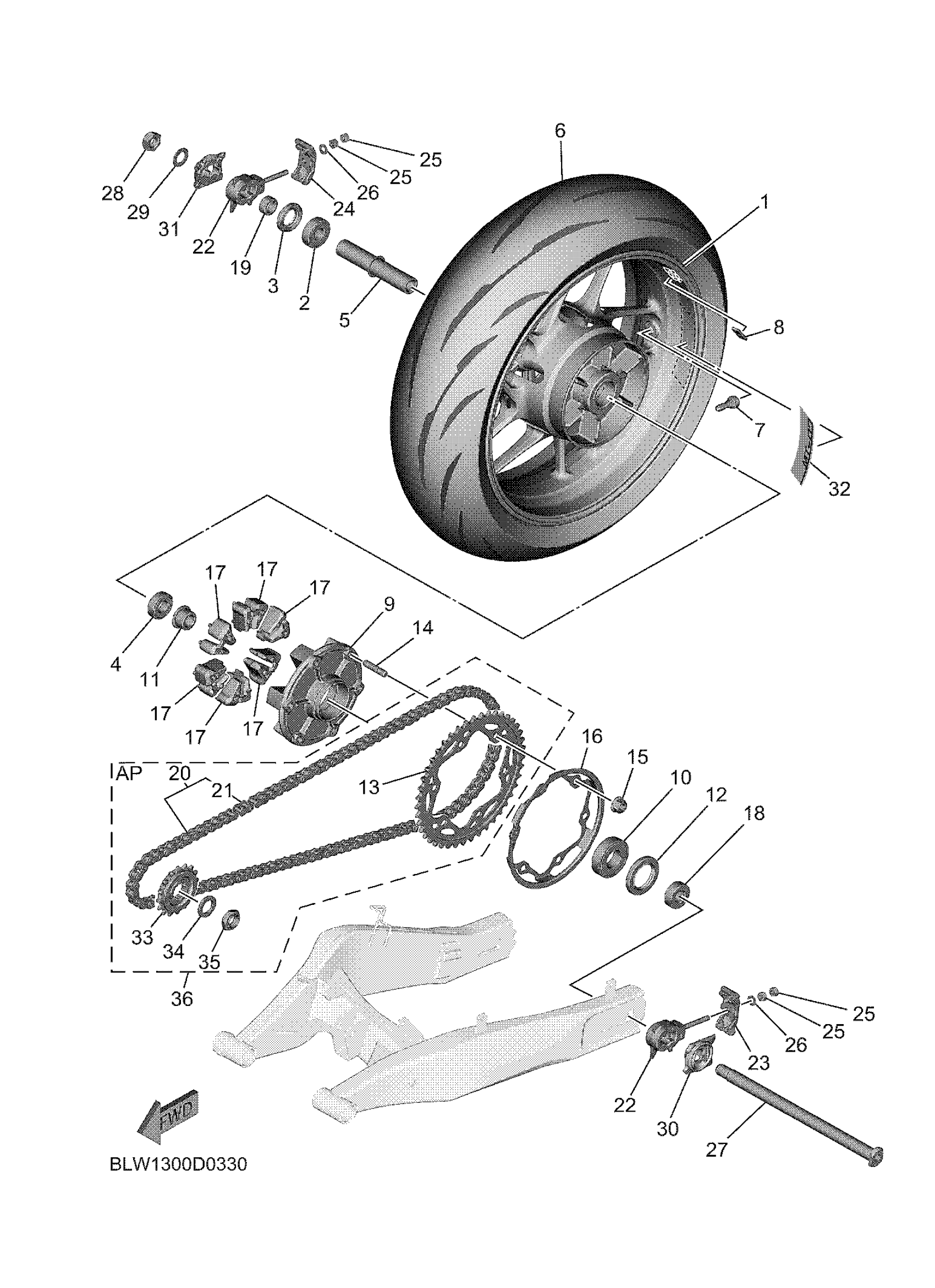

2025 Yamaha MT07 (MT07SL) Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAST WHEEL, REAR

BLW-25338-00-98

1
Out of stock

2

BEARING

93306-20488-00

—
Out of stock

3

OIL SEAL (28X47X7-102)

93102-28022-00

1
Out of stock

4

BEARING

93306-00449-00

—
Out of stock

5

SPACER, BEARING

2PP-25317-00-00

1
Out of stock

6

TIRE 180/55 ZR17M (73W) Q5A

94118-17095-00

1
Out of stock

7

VALVE, RIM(2GH)

93900-00030-00

1
Out of stock

8

BALANCER, WHEEL

23P-25398-00-00

1
Out of stock

9

CLUTCH, HUB

20S-25366-00-00

1
Out of stock

10

BEARING

93306-20666-00

—
Out of stock

11

COLLAR, WHEEL

BLW-25383-00-00

1
Out of stock

12

OIL SEAL

93106-40041-00

1
Out of stock

13

SPROCKET, DRIVEN (43T)

BLW-25443-00-00

1
Out of stock

14

BOLT, STUD

90116-10048-00

—
Out of stock

15

NUT, S/L FLANGE

95602-10200-00

1
Out of stock

16

BRACKET 1

BLW-2537W-00-00

—
Out of stock

17

DAMPER

BLW-25364-00-00

—
Out of stock

18

COLLAR

90387-20036-00

—
Out of stock

19

COLLAR

90387-20035-00

—
Out of stock

20

SET, CHAIN

94A40-24108-00

—
Out of stock

21

JOINT, CHAIN

94682-64021-00

—
Out of stock

22

PULLER, CHAIN 1

1WS-25388-00-00

—
Out of stock

23

END 1

B34-22174-00-00

—
Out of stock

24

END 1

B34-22175-00-00

—
Out of stock

25

NUT

95302-08600-00

—
Out of stock

26

.. WASHER, PLATE

92990-08600-00

1
Out of stock

27

SHAFT, PIVOT

4FN-22141-00-00

—
Out of stock

28

NUT, SELF-LOCKING

90185-18009-00

—
Out of stock

29

WASHER, PLATE

90201-18021-00

—
Out of stock

30

COVER, REAR AXLE 1

BLW-2538D-00-00

—
Out of stock

31

COVER, REAR AXLE 2

BLW-2538N-00-00

—
Out of stock

32

GRAPHIC 1

BLW-253G1-20-00

—
Out of stock

33

SPROCKET, DRIVE

BLW-17460-00-00

—
Out of stock

34

WASHER, CONICAL SPRING

90208-22002-00

—
Out of stock

35

NUT

90179-22018-00

—
Out of stock

36

CHAIN & SPROCKET K

BLW-W001A-00-00

—
Out of stock
