2025 Yamaha MT07 (MT07SL) Rear Arm Diagram

← All diagrams

Find the part on the Rear Arm diagram for your 2025 Yamaha MT07 (MT07SL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

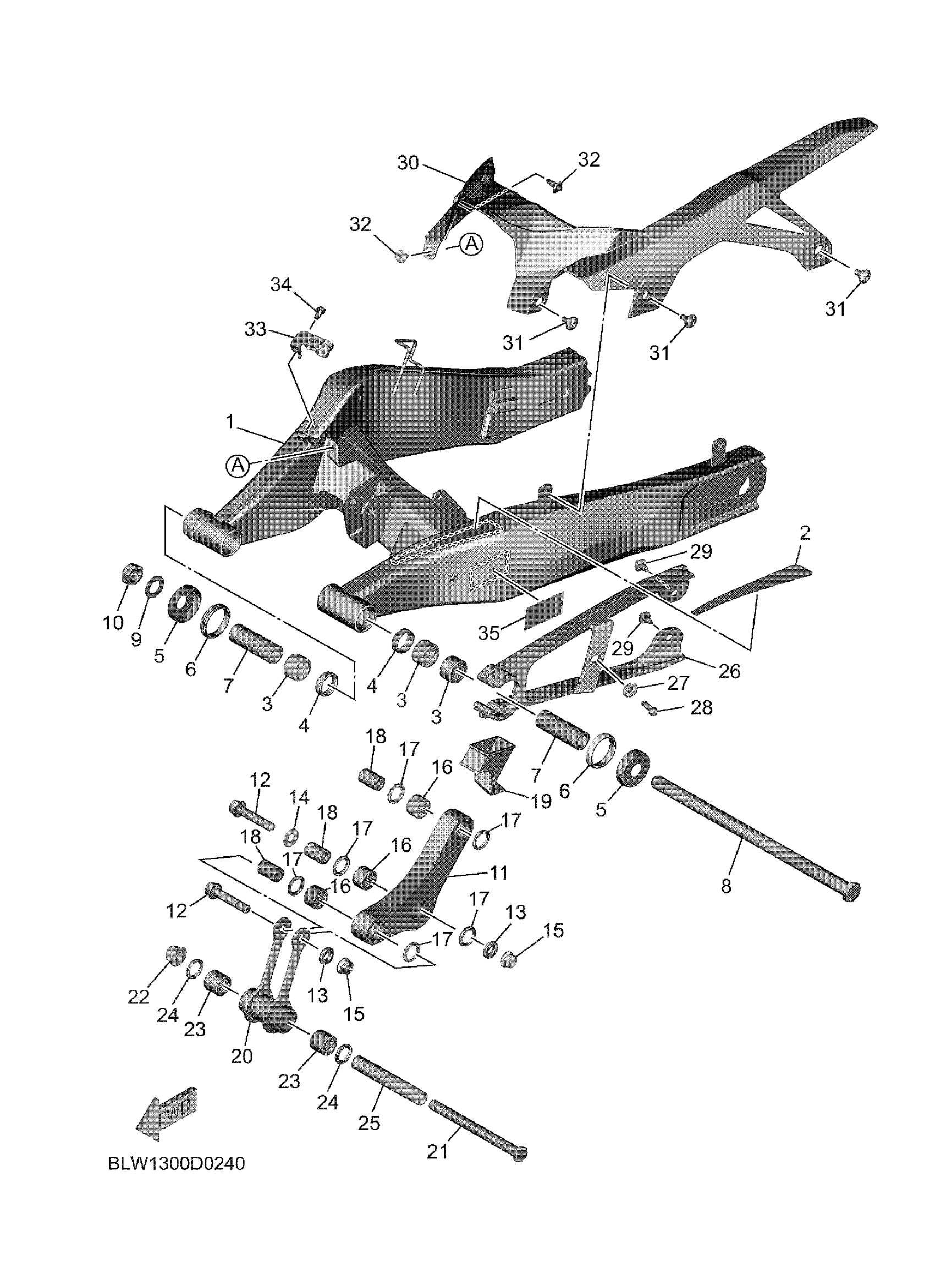

2025 Yamaha MT07 (MT07SL) Rear Arm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REAR ARM COMP.

BLW-22110-00-00

1
Out of stock

2

SEAL 1

BU2-22358-00-00

1
Out of stock

3

BEARING, CYLINDRICAL(2VM)

93317-22262-00

1
Out of stock

4

OIL SEAL (23X)

93106-22019-00

1
Out of stock

5

COVER

30X-2219X-00-00

1
Out of stock

6

OIL SEAL (35X41.5X8-483)

93108-35004-00

1
Out of stock

7

BUSH, SOLID(1LV)

90380-16158-00

1
Out of stock

8

SHAFT, PIVOT

BW3-22141-00-00

—
Out of stock

9

WASHER, PLATE(33Y)

90201-164H4-00

1
Out of stock

10

NUT, SELF-LOCKING

90185-16002-00

1
Out of stock

11

ARM, RELAY

1WS-2217A-00-00

1
Out of stock

12

BOLT, FLANGE

90105-10498-00

1
Out of stock

13

COLLAR

90387-10132-00

—
Out of stock

14

958-69527-00 WASHER, PLAIN

92990-10200-00

1
Out of stock

15

NUT, SELF-LOCKING

90185-10011-00

1
Out of stock

16

BEARING

93315-31758-00

—
Out of stock

17

OIL SEAL

93109-17071-00

—
Out of stock

18

COLLAR

90387-1012A-00

—
Out of stock

19

BOOT, RUBBER

1WS-22189-00-00

—
Out of stock

20

ROD, CONNECTING 1

1WS-2217F-00-00

—
Out of stock

21

BOLT

90101-12079-00

—
Out of stock

22

NUT, SELF-LOCKING

95602-12200-00

—
Out of stock

23

BEARING, CYLINDRICAL(3YL)

93317-31771-00

—
Out of stock

24

OIL SEAL

93109-17071-00

—
Out of stock

25

BUSH

1WS-22184-00-00

—
Out of stock

26

SEAL, GUARD

BLW-22151-00-00

—
Out of stock

27

COLLAR

90387-06170-00

—
Out of stock

28

BOLT, BUTTON HEAD

92012-06020-00

—
Out of stock

29

RIVET

90269-07007-00

—
Out of stock

30

REAR FENDER COMP.

BLW-21650-00-00

—
Out of stock

31

BOLT

90109-06346-00

—
Out of stock

32

RIVET

90269-07007-00

—
Out of stock

33

HOLDER, BRAKE HOSE 5

BLW-2588F-00-00

—
Out of stock

34

BOLT, BUTTON HEAD

92017-06010-00

—
Out of stock

35

LABEL, TIRE

BLW-21668-10-00

—
Out of stock
