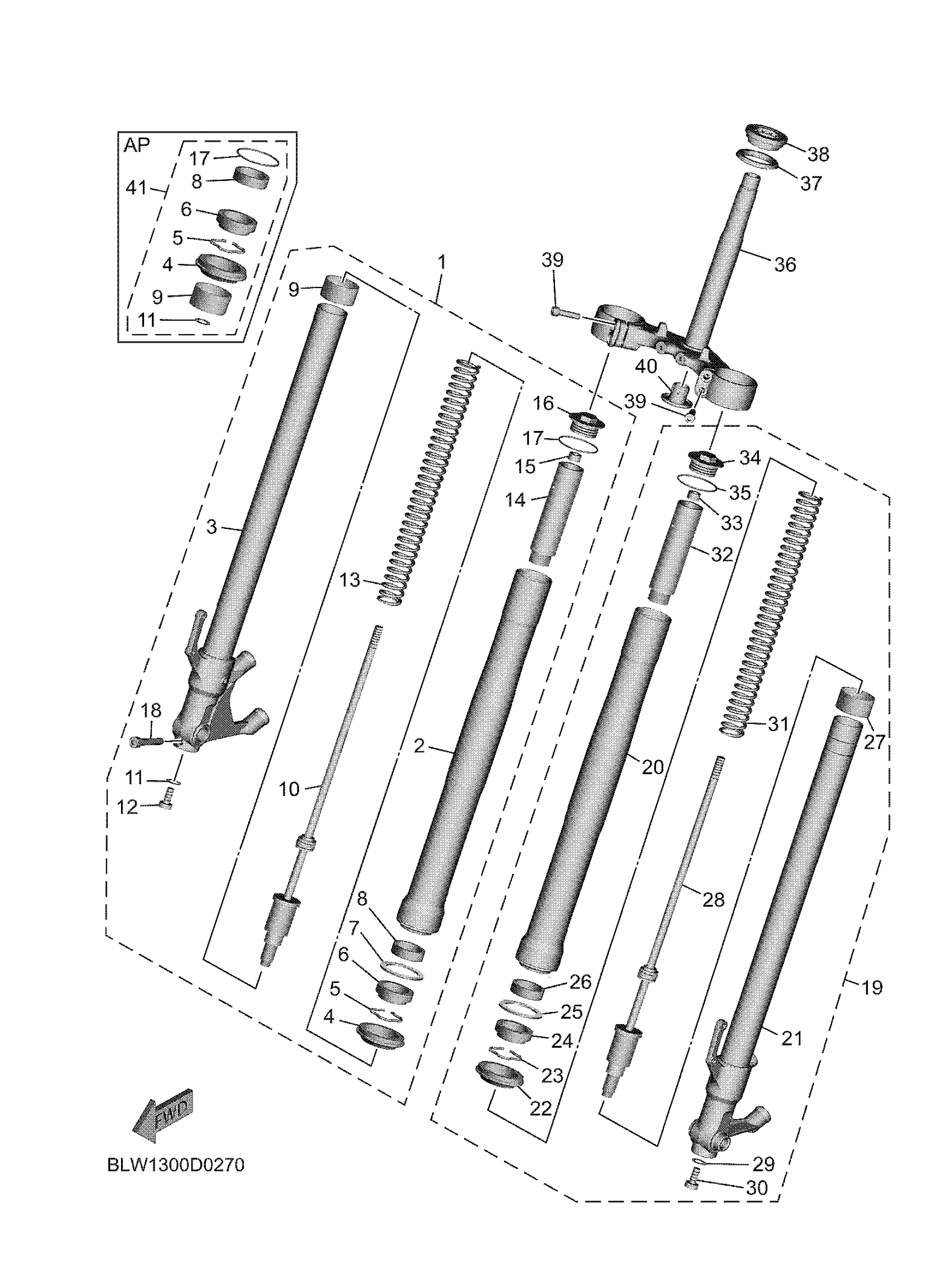

Yamaha MT07SL (MT07) BLW2 2025 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (R.H)

BLW-23103-00-00

Unavailable

2

TUBE, OUTER (L.H)

BEB-23126-00-00

$382.17

3

INNER TUBE COMP.2

BLW-23120-00-00

$355.58

4

SEAL, DUST

4EB-23144-00-00

$18.18

5

CLIP, OIL SEAL

26H-23156-00-00

$6.17

6

OIL SEAL

4EB-23145-01-00

$22.64

7

WASHER, OIL SEAL

36Y-23146-10-00

$20.60

8

METAL, SLIDE 1

1RC-23125-00-00

$11.56

9

METAL, SLIDE

4FM-23171-40-00

$19.02

10

CYLINDER COMP., FR

BLW-23170-10-00

$293.17

11

GASKET

509-23158-L0-00

$13.39

12

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

13

SPRING, FRONT FORK

BLW-23141-00-00

$80.79

14

SPACER

1RC-23118-00-00

Unavailable

15

NUT

3LC-23357-00-00

$6.33

16

BOLT, CAP

BLW-23111-00-00

Unavailable

17

O-RING

39P-23147-00-00

Unavailable

18

BOLT,SOCKET

91314-08040-00

Unavailable

19

FRONT FORK ASSY (L.H)

BLW-23102-00-00

Unavailable

20

TUBE, OUTER (L.H)

BEB-23126-00-00

$382.17

21

INNER TUBE COMP.1

BLW-23110-00-00

Unavailable

22

SEAL, DUST

4EB-23144-00-00

$18.18

23

CLIP, OIL SEAL

26H-23156-00-00

$6.17

24

OIL SEAL

4EB-23145-01-00

$22.64

25

WASHER, OIL SEAL

36Y-23146-10-00

$20.60

26

METAL, SLIDE 1

1RC-23125-00-00

$11.56

27

METAL, SLIDE

4FM-23171-40-00

$19.02

28

CYLINDER COMP., FR

BLW-23170-00-00

Unavailable

29

GASKET

509-23158-L0-00

$13.39

30

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$7.13

31

SPRING, FRONT FORK

BLW-23141-00-00

$80.79

32

SPACER

1RC-23118-00-00

Unavailable

33

NUT

3LC-23357-00-00

$6.33

34

BOLT, CAP

BLW-23111-00-00

Unavailable

35

O-RING

39P-23147-00-00

Unavailable

36

UNDER BRACKET COMP

BLW-23340-00-00

Unavailable

37

SEAL, STEERING

3FV-23462-00-00

Unavailable

38

BEARING(3FV)

93399-99932-00

Unavailable

39

BOLT,SOCKET

91314-08030-00

Unavailable

40

COVER, LOWER 1

4KM-23123-01-00

Unavailable

41

FORK SEAL KIT (ONE FORK)

BBV-W003B-00-00

Unavailable
